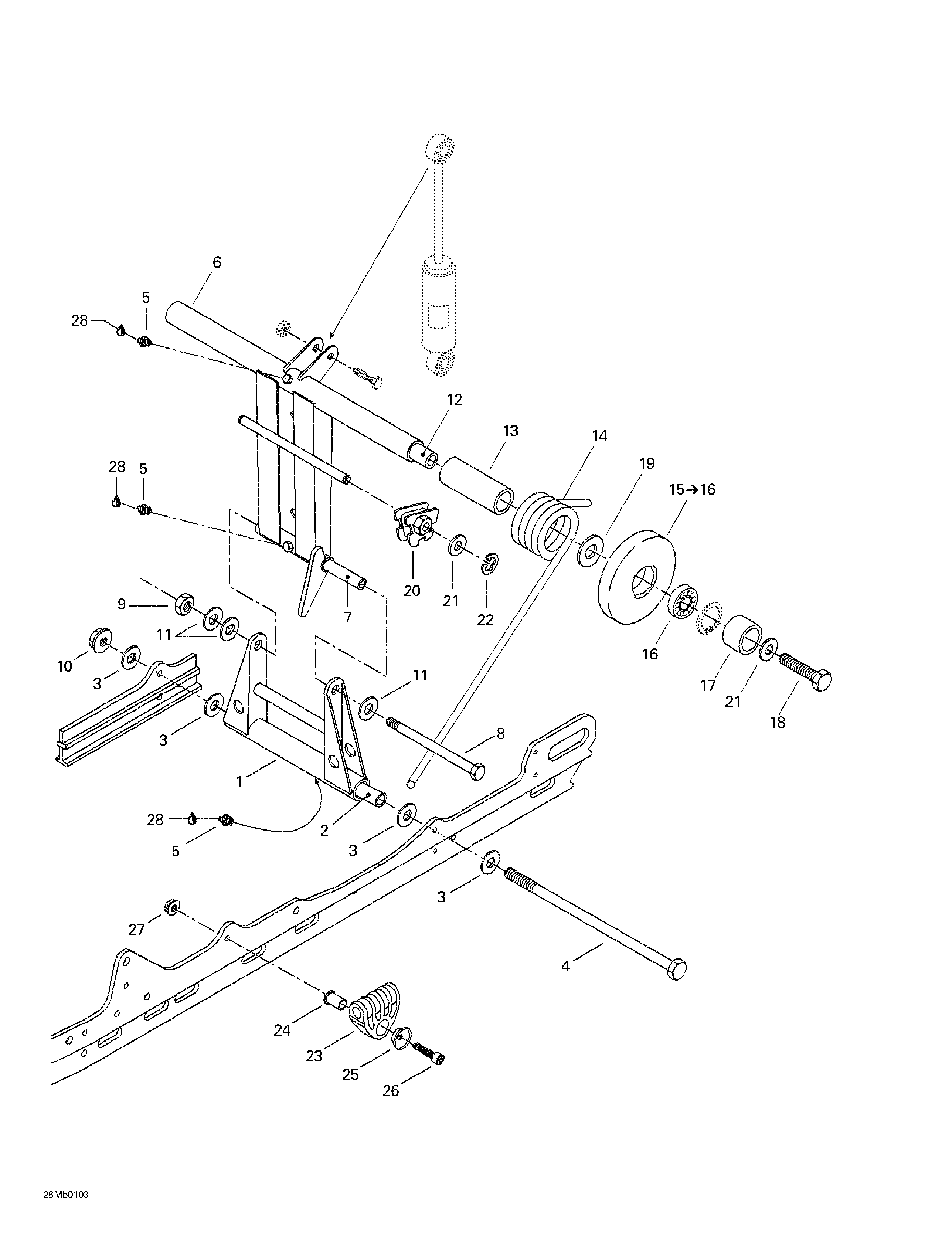

08- Rear Arm для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1503169200 Pivot ArmPivot Arm
-
2503154703 Lower Axle PivotLower Axle Pivot
-
3224081201 Flat WasherFlat Washer
-
4732601198 Bolt M8 (Long)Bolt M8 (Long)
-
5408200700 Grease Fitting M6Grease Fitting M6
-
6503151200 Rear ArmRear Arm
-
7503144300 Upper AxleUpper Axle
-
8732601197 Bolt M8 (Short)Bolt M8 (Short)
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12503151400 Cross Rear ShaftCross Rear Shaft
-
13572047800 BushingBushing
-
14503189338 R.H. SpringR.H. Spring
-
503189339 L.H. SpringL.H. Spring
-
15572094300 Idler Wheel 155. Includes 15 - 16.Idler Wheel 155. Includes 15 - 16.
-
16405404600 Ball Bearing 6202Ball Bearing 6202
-
17503154200 SpacerSpacer
-
18207303544 Hex. Screw M10 x 35 (Scotch Grip)Hex. Screw M10 x 35 (Scotch Grip)
-
19503144900 WasherWasher
-
20572030900 R.H. Cam AdjusterR.H. Cam Adjuster
-
572030800 L.H. Cam AdjusterL.H. Cam Adjuster
-
21732900049 WasherWasher
-
22371907100 E-CirclipE-Circlip
-
23503188933 Spring SupportSpring Support
-
24503188934 Spring Axle GuideSpring Axle Guide
-
25503188929 Retainer WasherRetainer Washer
-
26205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
27233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
28219700417 Synthetic Grease, 400gSynthetic Grease, 400g
