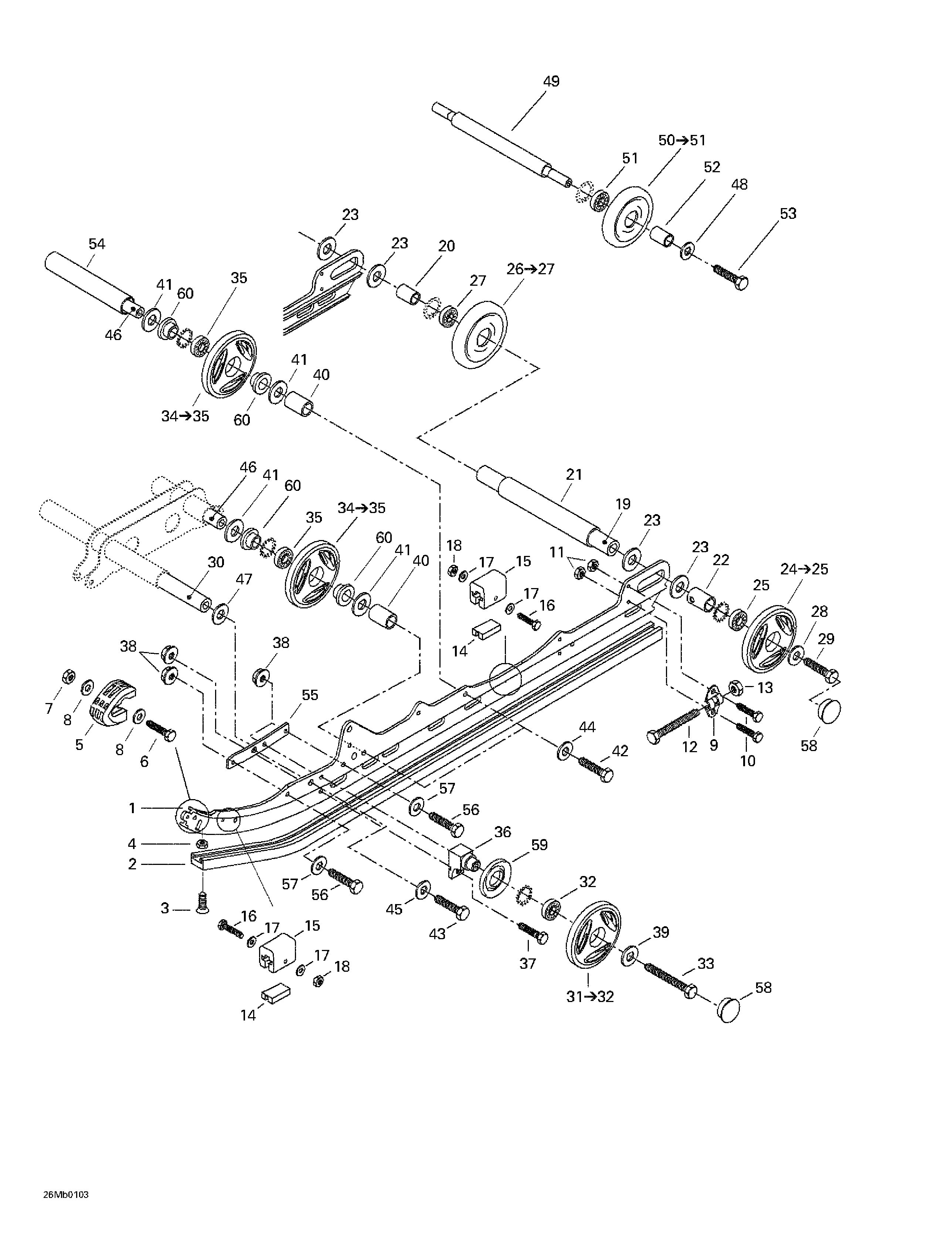

08- Rear Suspension для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1503188994 RunnerRunner
-
2560103500 Runner ShoeRunner Shoe
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
11233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14572084800 Stopper ReinforcementStopper Reinforcement
-
15570063000 Rubber StopperRubber Stopper
-
16207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
17391301700 WasherWasher
-
18232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
19503160700 Rear AxleRear Axle
-
20503182900 Short SpacerShort Spacer
-
21503183000 Long SpacerLong Spacer
-
22503189075 Outer SpacerOuter Spacer
-
23503180400 WasherWasher
-
24503189578 Wheel 165 (Black). Includes 24 - 25.Wheel 165 (Black). Includes 24 - 25.
-
25503189567 Ball Bearing 6205Ball Bearing 6205
-
26503189568 Wheel 165 Ass'y. Includes 26 - 27.Wheel 165 Ass'y. Includes 26 - 27.
-
27503189567 Ball Bearing 6205Ball Bearing 6205
-
28503183300 WasherWasher
-
29250000019 Hex. Screw with NylonHex. Screw with Nylon
-
30503174900 Lower AxleLower Axle
-
31503189375 Wheel 139 (Full Moon). Includes 31 - 32.Wheel 139 (Full Moon). Includes 31 - 32.
-
32405404500 Ball Bearing 6205Ball Bearing 6205
-
33207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
34503188998 Wheel 139 Ass'y. Includes 34 - 35.Wheel 139 Ass'y. Includes 34 - 35.
-
35405404500 Ball Bearing 6205Ball Bearing 6205
-
36503174600 SupportSupport
-
37207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
38233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
39503183100 WasherWasher
-
40503188800 SpacerSpacer
-
41503154000 WasherWasher
-
42207303544 Hex. Screw M10 x 35 (Scotch Grip)Hex. Screw M10 x 35 (Scotch Grip)
-
43207324044 Hex. Screw M12 x 40 (Scotch Grip)Hex. Screw M12 x 40 (Scotch Grip)
-
44732900049 WasherWasher
-
45503189276 WasherWasher
-
46503188700 Wheel AxleWheel Axle
-
47503175400 Hard WasherHard Washer
-
48503189157 WasherWasher
-
49503153600 Wheel Support AxleWheel Support Axle
-
50572043500 Idler Wheel Ass'y. Includes 50 - 51.Idler Wheel Ass'y. Includes 50 - 51.
-
51405404600 Ball Bearing 6202Ball Bearing 6202
-
52572048300 SpacerSpacer
-
53207383044 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
54503153100 SpacerSpacer
-
55503189058 ReinforcementReinforcement
-
56207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
57234081410 Flat Washer 8 mmFlat Washer 8 mm
-
58570063600 Wheel CapWheel Cap
-
59572089000 Labyrinth SealLabyrinth Seal
-
60503189314 Labyrinth ShaftLabyrinth Shaft
