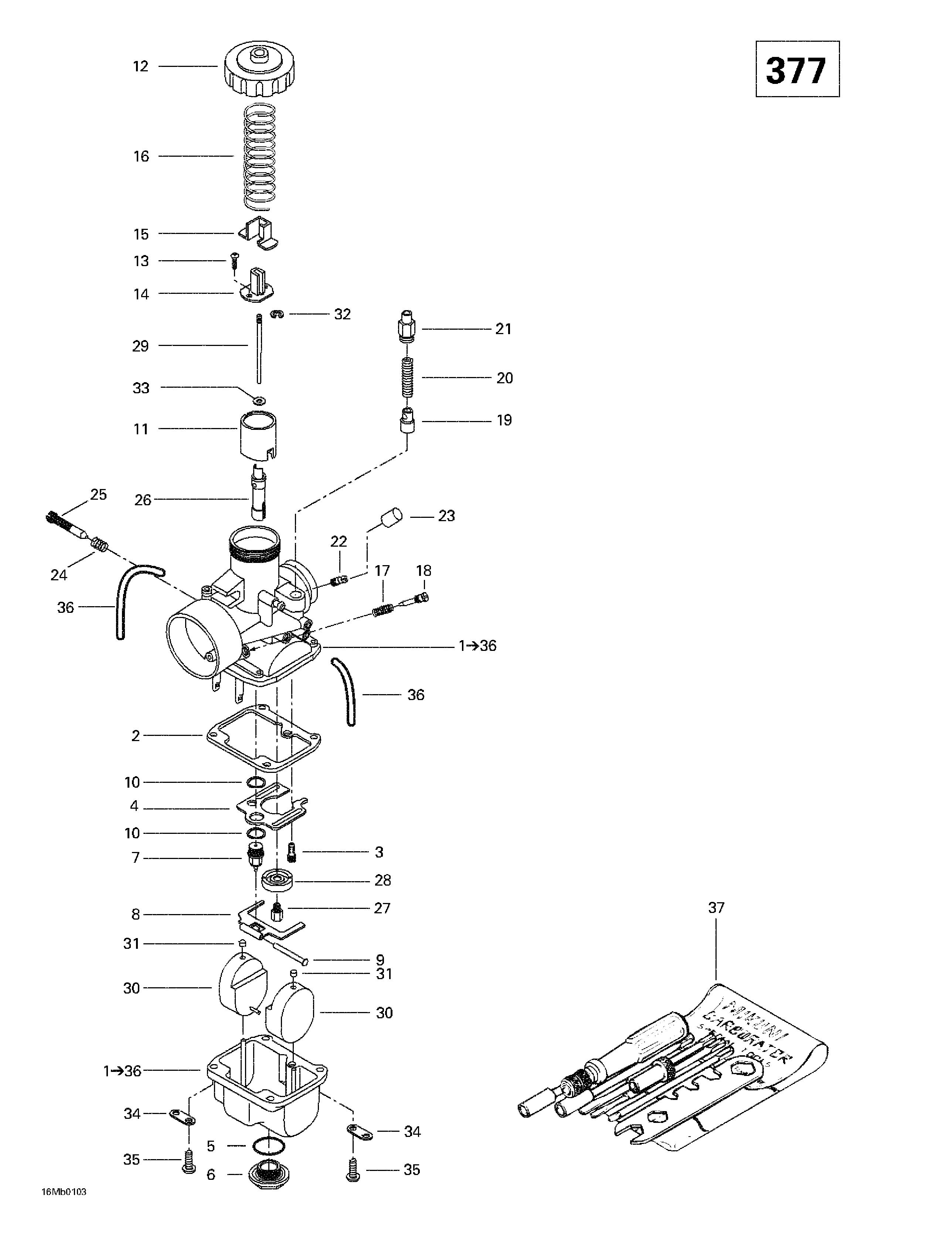

02- Carburetors (377) для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1403138600 Carburetor VM 30-200. Includes 1 - 36. Touring 380 F.Carburetor VM 30-200. Includes 1 - 36. Touring 380 F.
-
2404104200 Gasket. Touring 380 F.Gasket. Touring 380 F.
-
3404109100 Pilot Jet PJ 40. Touring 380 F.Pilot Jet PJ 40. Touring 380 F.
-
4404109600 Baffle. Touring 380 F.Baffle. Touring 380 F.
-
5404107300 O-ring. Touring 380 F.O-ring. Touring 380 F.
-
6404107400 Drain Plug Screw. Touring 380 F.Drain Plug Screw. Touring 380 F.
-
7404103200 Needle Valve 1.5. Touring 380 F.Needle Valve 1.5. Touring 380 F.
-
8404107600 Float Lever. Touring 380 F.Float Lever. Touring 380 F.
-
9404103300 Lever Pin. Touring 380 F.Lever Pin. Touring 380 F.
-
10404101600 Seat Washer. Touring 380 F.Seat Washer. Touring 380 F.
-
11404128400 Throttle Valve CA 2.5. Touring 380 F.Throttle Valve CA 2.5. Touring 380 F.
-
12404103700 Cover. Touring 380 F.Cover. Touring 380 F.
-
13404121300 Screw with Washer. Touring 380 F.Screw with Washer. Touring 380 F.
-
14404161948 Packing. Touring 380 F.Packing. Touring 380 F.
-
15404122100 Cover. Touring 380 F.Cover. Touring 380 F.
-
16404154800 Spring. Touring 380 F.Spring. Touring 380 F.
-
17404101800 Spring (Idle Adjusting Screw). Touring 380 F.Spring (Idle Adjusting Screw). Touring 380 F.
-
18404102300 Air Screw. Touring 380 F.Air Screw. Touring 380 F.
-
19404161000 Plunger Ass'y. Touring 380 F.Plunger Ass'y. Touring 380 F.
-
20404127400 Spring. Touring 380 F.Spring. Touring 380 F.
-
21404161100 Holder Guide. Touring 380 F.Holder Guide. Touring 380 F.
-
22404153400 Nipple. Touring 380 F.Nipple. Touring 380 F.
-
23404156600 Cap. Touring 380 F.Cap. Touring 380 F.
-
24404101700 Spring (Idle Speed Screw). Touring 380 F.Spring (Idle Speed Screw). Touring 380 F.
-
25404109700 Idle Speed Screw. Touring 380 F.Idle Speed Screw. Touring 380 F.
-
26404107000 Needle Jet NJ 159-P-0. Touring 380 F.Needle Jet NJ 159-P-0. Touring 380 F.
-
27404126600 Main Jet MJ 140. Touring 380 F.Main Jet MJ 140. Touring 380 F.
-
28404110900 Baffle Ring. Touring 380 F.Baffle Ring. Touring 380 F.
-
29404152600 Needle JN 6DP9-3. Touring 380 F.Needle JN 6DP9-3. Touring 380 F.
-
30404107100 Float. Touring 380 F.Float. Touring 380 F.
-
31404105800 Cap. Touring 380 F.Cap. Touring 380 F.
-
32404152400 E-Ring. Touring 380 F.E-Ring. Touring 380 F.
-
33404117000 Packing. Touring 380 F.Packing. Touring 380 F.
-
34404103000 Plate. Touring 380 F.Plate. Touring 380 F.
-
35404102000 Screw and Lock Washer. Touring 380 F.Screw and Lock Washer. Touring 380 F.
-
36404161880 Air Vent Tube. Touring 380 F.Air Vent Tube. Touring 380 F.
-
37404112000 Tool Kit. Touring 380 F.Tool Kit. Touring 380 F.
