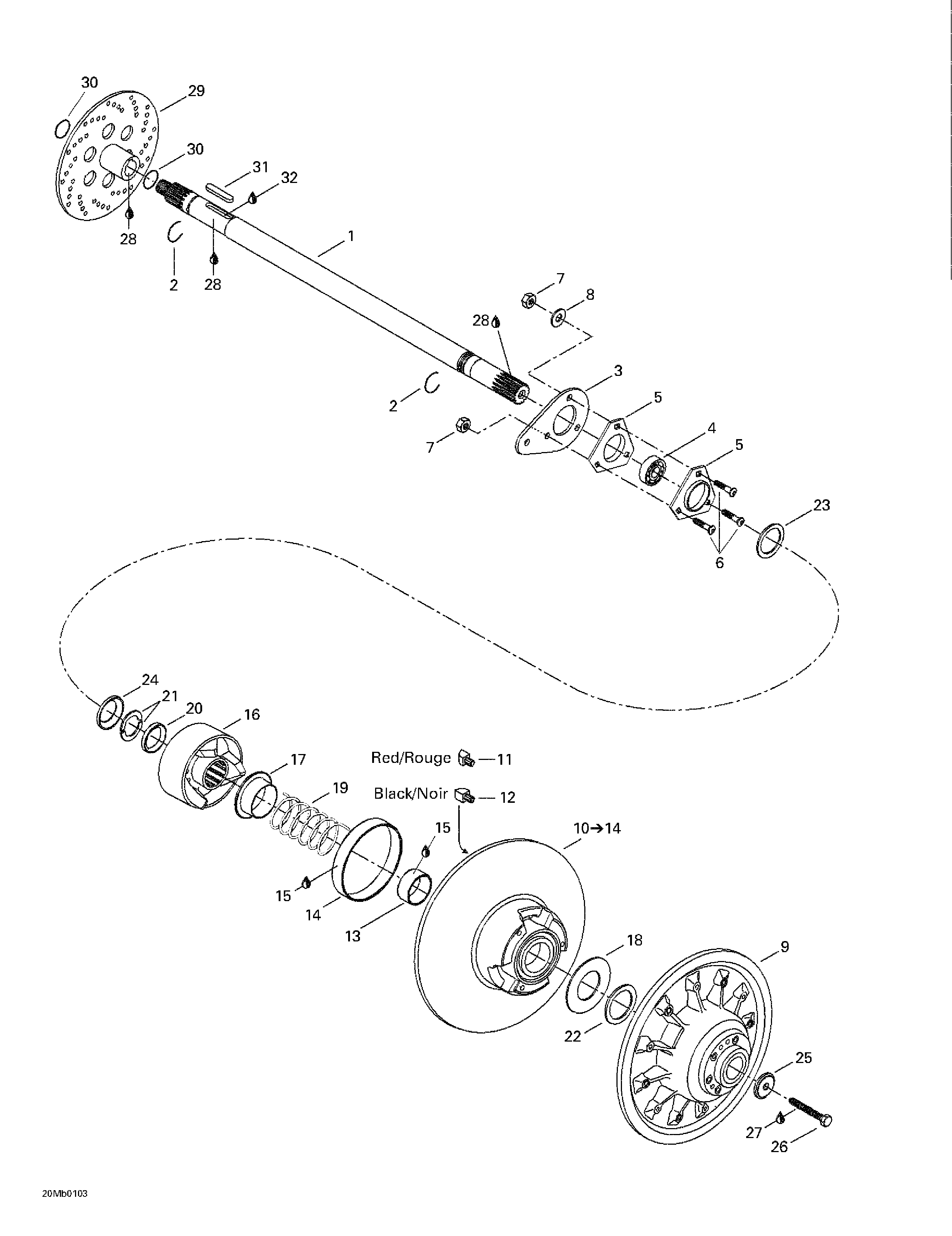

05- Driven Pulley для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1504151747 Countershaft. Touring 380 F.Countershaft. Touring 380 F.
-
504150300 Countershaft. Touring 500 F.Countershaft. Touring 500 F.
-
2371910000 CirclipCirclip
-
3501022300 SpacerSpacer
-
4504152008 Ball BearingBall Bearing
-
5501025000 FlangeFlange
-
6205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
7232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9417126401 Fixed Flange Ass'yFixed Flange Ass'y
-
10417126403 Sliding Flange Ass'y. Includes 10 - 14.Sliding Flange Ass'y. Includes 10 - 14.
-
11417126373 Rear Cam Shoe Slider (Red)Rear Cam Shoe Slider (Red)
-
12417126374 Front Cam Shoe Slider (Black)Front Cam Shoe Slider (Black)
-
13415092600 BushingBushing
-
14415092700 BushingBushing
-
15413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
16417124700 Cam Ass'yCam Ass'y
-
17415006000 GuardGuard
-
18504099600 Stopper WasherStopper Washer
-
19415092800 SpringSpring
-
20417126368 SpacerSpacer
-
21371911000 Half KeyHalf Key
-
22504112300 ShimShim
-
23417300054 SpacerSpacer
-
24417300055 ProtectorProtector
-
25517302322 WasherWasher
-
26207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
29507029000 Brake Disk. Touring 380 F.Brake Disk. Touring 380 F.
-
507032203 Brake Disk. Touring 500 F.Brake Disk. Touring 500 F.
-
30414928900 O'Ring. Touring 380 F.O'Ring. Touring 380 F.
-
31507021300 KeyKey
