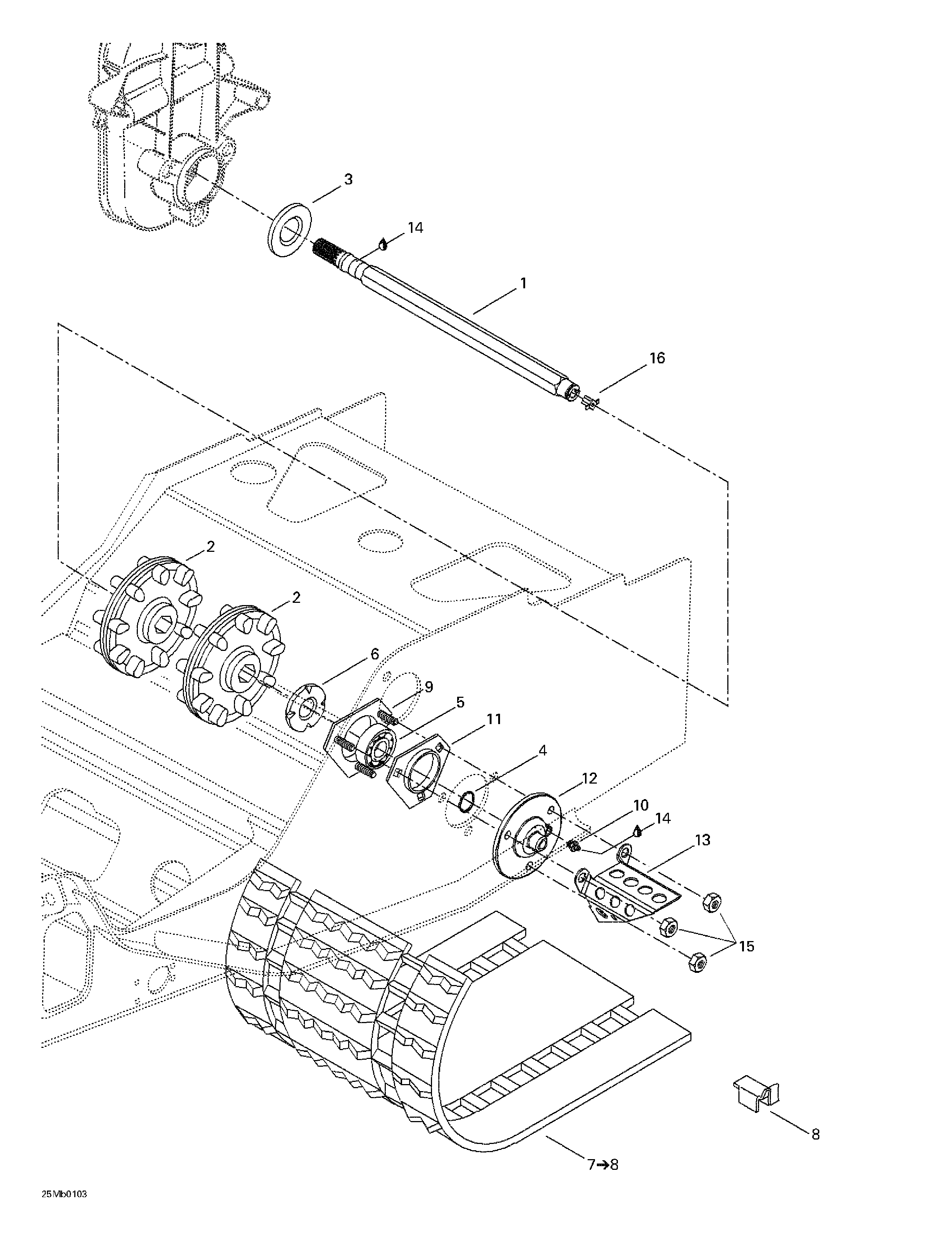

05- Drive Axle And Track для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1504151714 Drive AxleDrive Axle
-
2414882600 Sprocket (9 Tooth)Sprocket (9 Tooth)
-
3581101700 Oil SealOil Seal
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Ball Bearing ProtectorBall Bearing Protector
-
7570210600 Track 136''. Includes 7 - 8.Track 136''. Includes 7 - 8.
-
8500003400 Guide CleatGuide Cleat
-
9504151860 Ball Bearing HousingBall Bearing Housing
-
10408200700 Grease FittingGrease Fitting
-
11501025000 FlangeFlange
-
12504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
13517290100 Cable ProtectorCable Protector
-
14219700417 Synth-tique GreaseSynth-tique Grease
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16572010100 Speedo Drive InsertSpeedo Drive Insert
