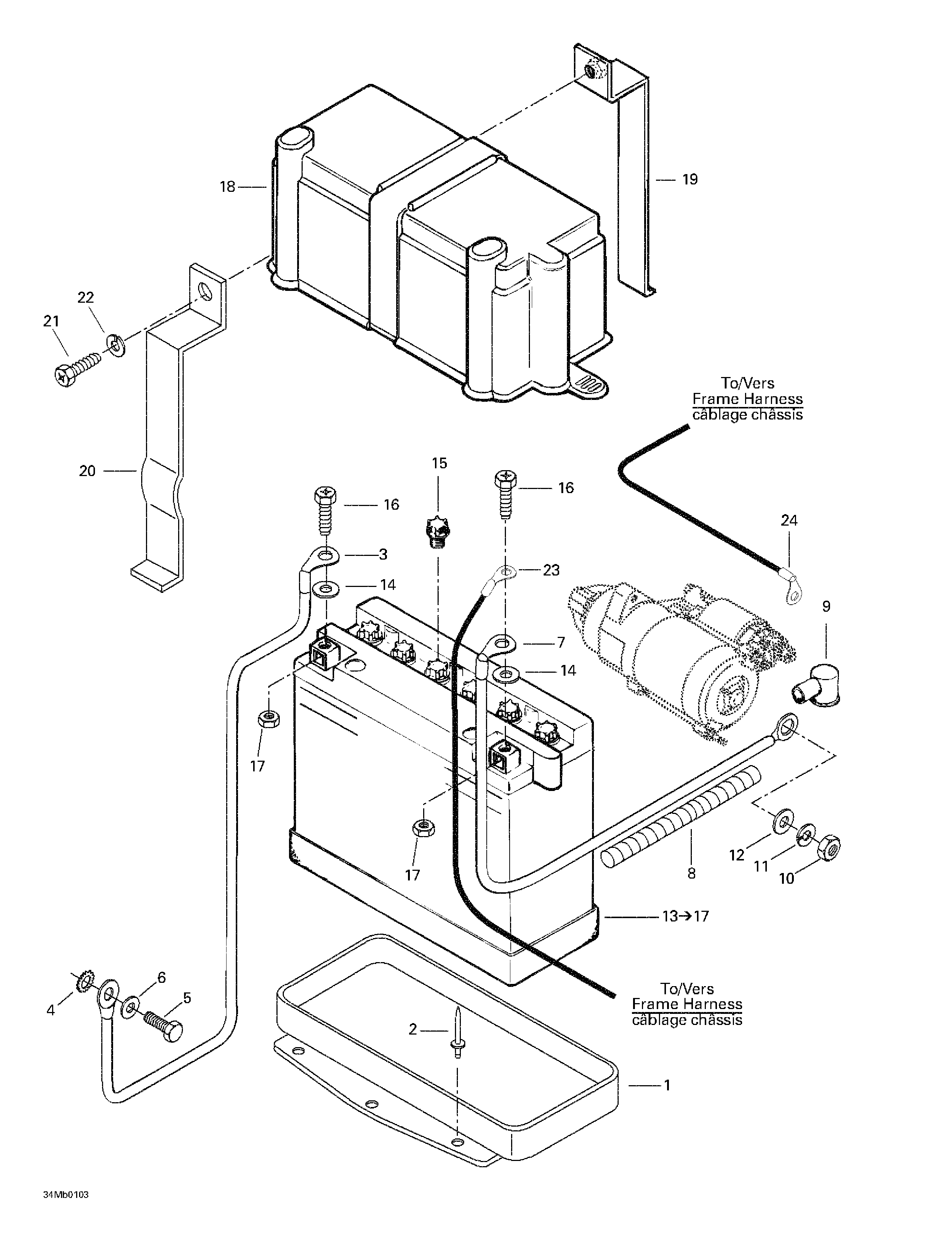

10- Battery для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1517286200 Battery SeatBattery Seat
-
2390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3515157425 Ground WireGround Wire
-
4394001900 Ext. Tooth Lock WasherExt. Tooth Lock Washer
-
5207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
6234161471 Lock Washer 6 mmLock Washer 6 mm
-
7515175488 Battery WireBattery Wire
-
8409901700 TubingTubing
-
9570151000 Protection CapProtection Cap
-
10232081414 Nut M8Nut M8
-
11420945752 Lock Washer 8 mmLock Washer 8 mm
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13410301100 Battery. Includes 13 - 17.Battery. Includes 13 - 17.
-
14391302100 Flat WasherFlat Washer
-
15410300800 Battery CapBattery Cap
-
16207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
17232061414 Hex. Nut M6Hex. Nut M6
-
18570022000 Battery CoverBattery Cover
-
19517286000 Steel StripSteel Strip
-
20517286100 Steel StripSteel Strip
-
21207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
22234151401 Lock Washer 5 mmLock Washer 5 mm
-
23409012600 Open BarrelOpen Barrel
-
24409012500 Open BarrelOpen Barrel
