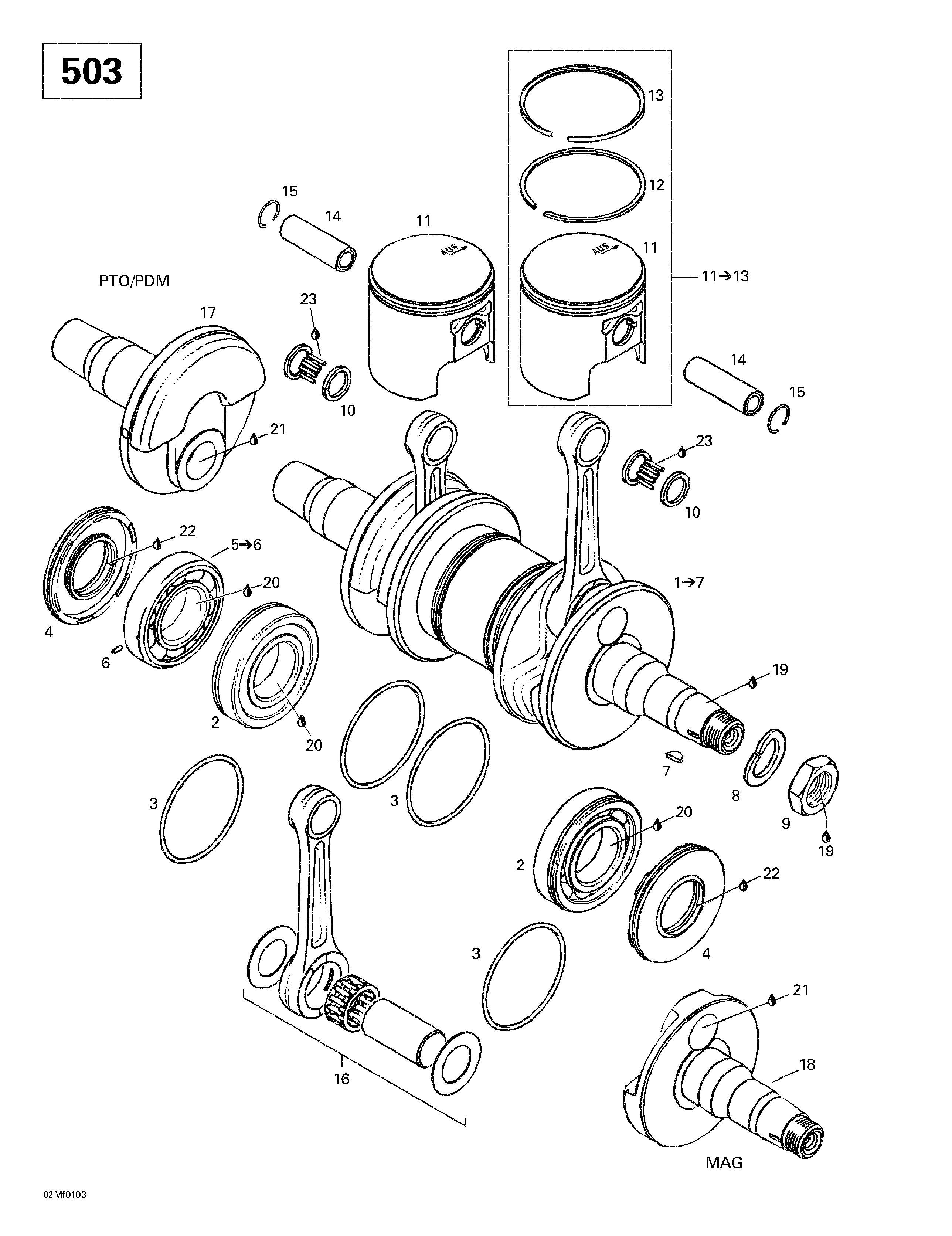

01- Crankshaft (503) для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1420888390 Crankshaft Ass'y. Includes 1 - 7. Touring 500 F.Crankshaft Ass'y. Includes 1 - 7. Touring 500 F.
-
2420832570 Ball Bearing 6207. Touring 500 F.Ball Bearing 6207. Touring 500 F.
-
3420250165 O-Ring 64 mm. Touring 500 F.O-Ring 64 mm. Touring 500 F.
-
4420831952 Oil Seal. Touring 500 F.Oil Seal. Touring 500 F.
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6. Touring 500 F.Ball Bearing 6207 Ass'y. Includes 5 - 6. Touring 500 F.
-
6420929972 Pin Dowel. Touring 500 F.Pin Dowel. Touring 500 F.
-
7420246055 Woodruff Key. Touring 500 F.Woodruff Key. Touring 500 F.
-
8420945759 Lock Washer 22 mm. Touring 500 F.Lock Washer 22 mm. Touring 500 F.
-
9420842230 Hex. Nut M22. Touring 500 F.Hex. Nut M22. Touring 500 F.
-
10420832320 Needle Bearing. Touring 500 F.Needle Bearing. Touring 500 F.
-
11420888175 Piston Ass'y 71.92 mm. Includes 11 - 13. Touring 500 F.Piston Ass'y 71.92 mm. Includes 11 - 13. Touring 500 F.
-
420888176 Oversize Piston Ass'y. 72.17 mm. Touring 500 F.Oversize Piston Ass'y. 72.17 mm. Touring 500 F.
-
420888177 Oversize Piston Ass'y. 72.42 mm. Touring 500 F.Oversize Piston Ass'y. 72.42 mm. Touring 500 F.
-
12420915850 Rectangular Ring 72.0 mm. Touring 500 F.Rectangular Ring 72.0 mm. Touring 500 F.
-
420915851 Rectangular Ring 72.25 mm. Touring 500 F.Rectangular Ring 72.25 mm. Touring 500 F.
-
420915852 Rectangular Ring 72.5 mm. Touring 500 F.Rectangular Ring 72.5 mm. Touring 500 F.
-
13420815200 Semi-Trapez Ring 72.0 mm. Touring 500 F.Semi-Trapez Ring 72.0 mm. Touring 500 F.
-
420815201 Semi-Trapez Ring 72.25 mm. Touring 500 F.Semi-Trapez Ring 72.25 mm. Touring 500 F.
-
420815202 Semi-Trapez Ring 72.5 mm. Touring 500 F.Semi-Trapez Ring 72.5 mm. Touring 500 F.
-
14420916186 Gudgeon Pin. Touring 500 F.Gudgeon Pin. Touring 500 F.
-
15420945735 Piston Circlip. Touring 500 F.Piston Circlip. Touring 500 F.
-
16420994564 Rod Repair Kit. Touring 500 F.Rod Repair Kit. Touring 500 F.
-
17420818244 Half Crankshaft PTO. Touring 500 F.Half Crankshaft PTO. Touring 500 F.
-
18420819020 Half Crankshaft MAG. Touring 500 F.Half Crankshaft MAG. Touring 500 F.
-
19293800060 Loctite 243, 10 ml. Touring 500 F.Loctite 243, 10 ml. Touring 500 F.
-
20293800023 Loctite 767, Antiseize Lubricant, 454 g. Touring 500 F.Loctite 767, Antiseize Lubricant, 454 g. Touring 500 F.
-
21413711400 Loctite 648, 10 ml. Touring 500 F.Loctite 648, 10 ml. Touring 500 F.
-
22413707000 Molykote 111. Touring 500 F.Molykote 111. Touring 500 F.
-
23413802900 Injection Oil (12 x 1 Liter). Touring 500 F.Injection Oil (12 x 1 Liter). Touring 500 F.
