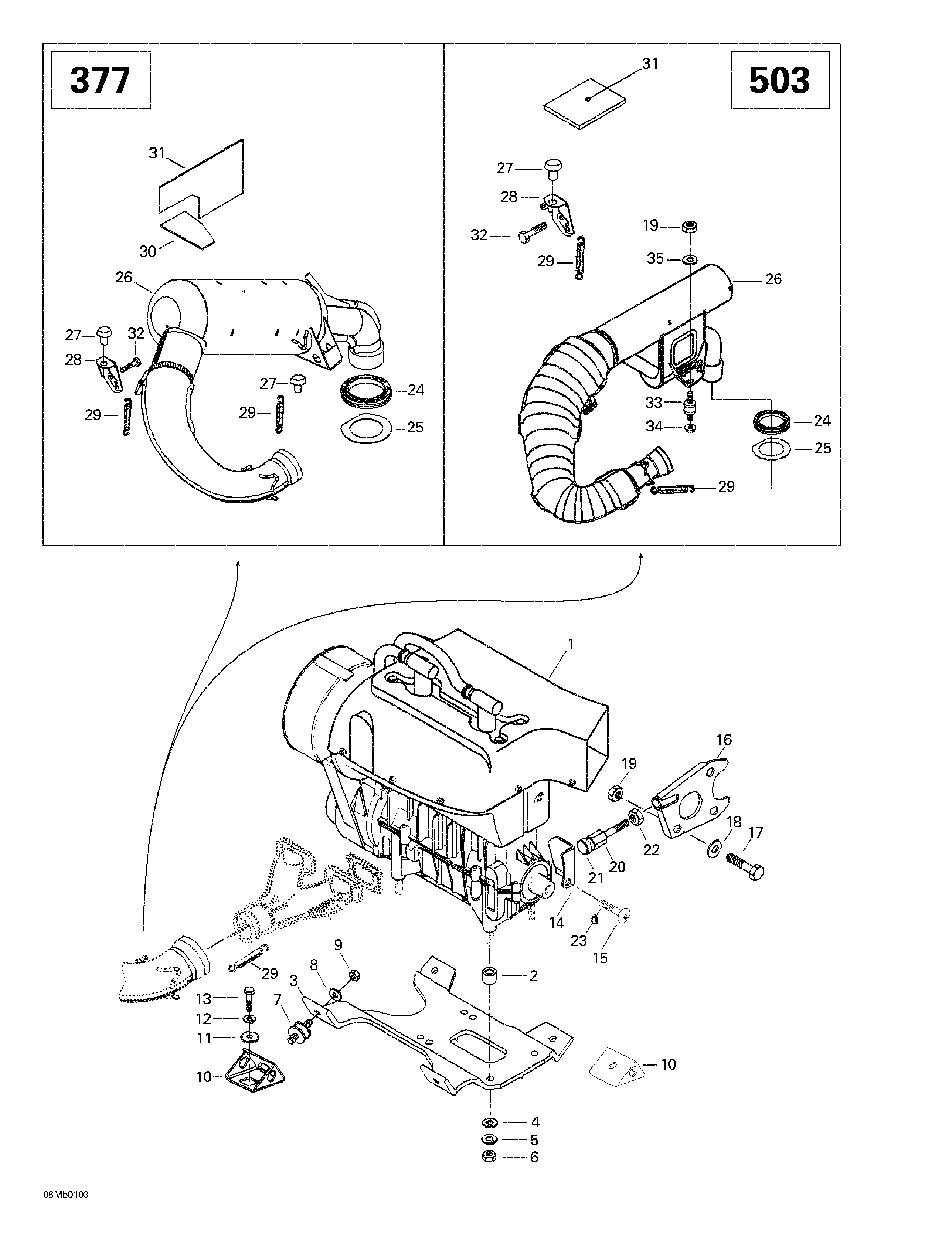

01- Engine Support And Muffler для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1400308905 > Engine. Touring 380 F.> Engine. Touring 380 F.
-
400509721 > Engine. Touring 500 F.> Engine. Touring 500 F.
-
2512057700 Spacer. Touring 380 F.Spacer. Touring 380 F.
-
512051800 Spacer. Touring 500 F.Spacer. Touring 500 F.
-
3512059134 Engine SupportEngine Support
-
4234001410 Flat Washer 10 mmFlat Washer 10 mm
-
5234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
6232006414 Hex. Nut M10Hex. Nut M10
-
7570127700 Rubber MountRubber Mount
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10512050900 Engine SupportEngine Support
-
11512056700 Lock WasherLock Washer
-
12234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
13207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
14512059198 Stopper PlateStopper Plate
-
15236282084 Screw M8 x 20Screw M8 x 20
-
16517271800 Support PlateSupport Plate
-
17207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
18234081410 Flat Washer 8 mmFlat Washer 8 mm
-
19232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
20517244200 ScrewScrew
-
21570025100 Retainer RodRetainer Rod
-
22232120414 Hex. Jam Nut M12Hex. Jam Nut M12
-
23293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
24570039000 Exhaust GrommetExhaust Grommet
-
25514049300 Aluminum WasherAluminum Washer
-
26514052852 Tune Pipe (Muffler). Touring 380 F.Tune Pipe (Muffler). Touring 380 F.
-
514097600 Tune Pipe (Muffler). Touring 500 F.Tune Pipe (Muffler). Touring 500 F.
-
27570048700 Rubber BumberRubber Bumber
-
28514044100 Pipe SupportPipe Support
-
29517182100 Spring. Touring 380 F.Spring. Touring 380 F.
-
415107100 Spring. Touring 500 F.Spring. Touring 500 F.
-
30514052858 Reflection Sheet. Touring 380 F.Reflection Sheet. Touring 380 F.
-
31514052949 Reflection Sheet. Touring 380 F.Reflection Sheet. Touring 380 F.
-
415064900 Reflection Sheet. Touring 500 F.Reflection Sheet. Touring 500 F.
-
32207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
33514052838 Rubber Mount. Touring 500 F.Rubber Mount. Touring 500 F.
-
34233281414 Elastic Flanged Nut M8. Touring 500 F.Elastic Flanged Nut M8. Touring 500 F.
-
35234082410 Flat Washer 8 mm. Touring 500 F.Flat Washer 8 mm. Touring 500 F.
