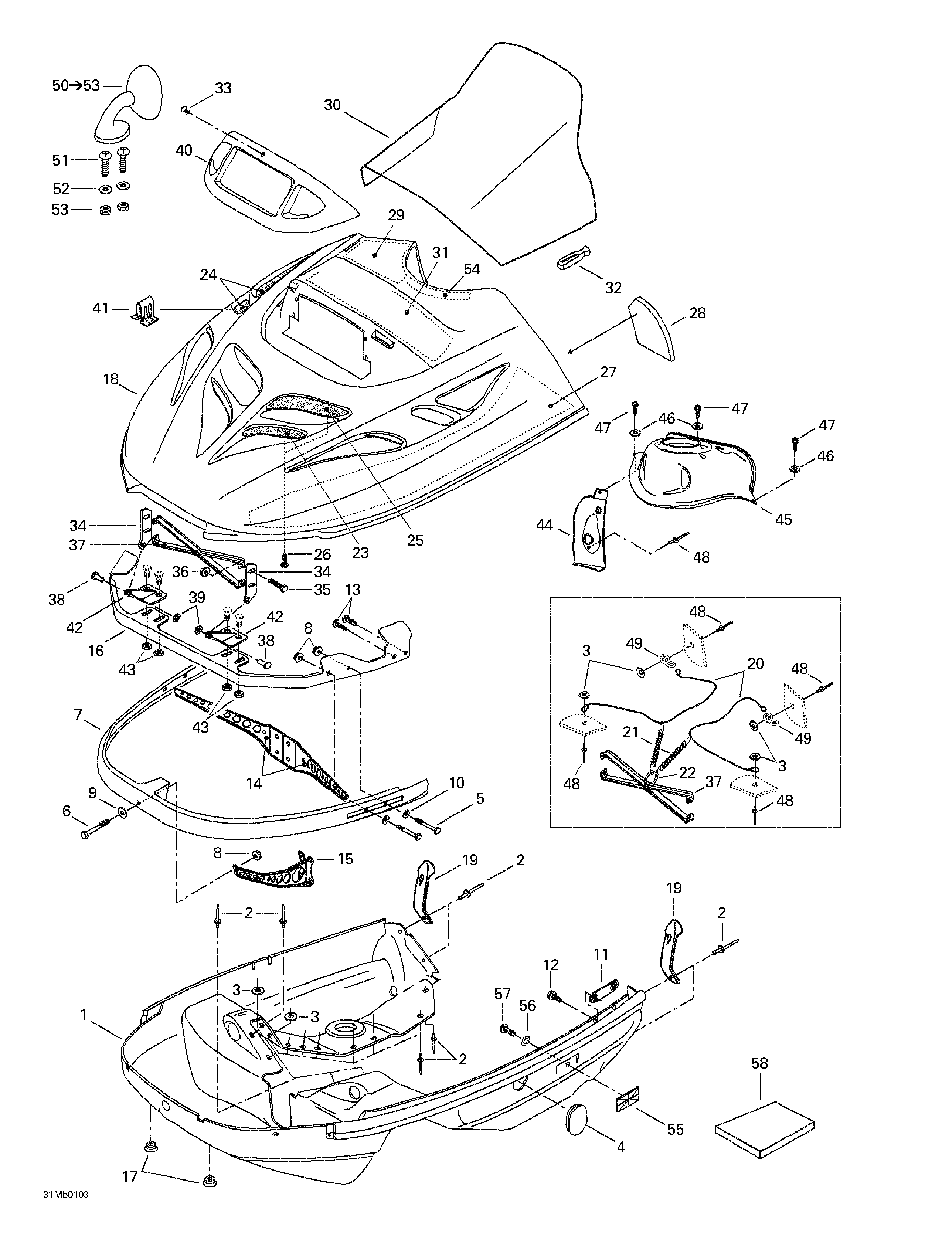

09- Cab, Console для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1502006572 Bottom Pan (black)Bottom Pan (black)
-
2390906800 Pop Rivet 3/16 (black)Pop Rivet 3/16 (black)
-
3517124300 WasherWasher
-
4570053702 Bottom Pan CapBottom Pan Cap
-
5207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
6207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
7517265400 Front BumperFront Bumper
-
8233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9224061201 Flat WasherFlat Washer
-
10224061121 Flat WasherFlat Washer
-
11517267100 Side BracketSide Bracket
-
12210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
13365901100 Hex. Tapping ScrewHex. Tapping Screw
-
14517295000 L.H. SupportL.H. Support
-
517295100 R.H. SupportR.H. Support
-
15517294500 Front SupportFront Support
-
16517296600 Hinge BracketHinge Bracket
-
17572072100 CapCap
-
18517302319 Cab (Black)Cab (Black)
-
19570027100 Hood LatchHood Latch
-
20415093900 Retainer CableRetainer Cable
-
21414763300 SpringSpring
-
22415058300 RingRing
-
23517265903 L.H. Front GrillL.H. Front Grill
-
24517280200 Side Grill (Black)Side Grill (Black)
-
25517277102 L.H. Upper GrillL.H. Upper Grill
-
26732601210 Self Tapping Screw #8 x 3/8''Self Tapping Screw #8 x 3/8''
-
27414883500 L.H. Lower FoamL.H. Lower Foam
-
415048700 R.H. Lower FoamR.H. Lower Foam
-
28414883800 R.H Rear FoamR.H Rear Foam
-
414883700 L.H. Rear FoamL.H. Rear Foam
-
29414975000 Upper FoamUpper Foam
-
30414887200 High WindshieldHigh Windshield
-
31414985100 Center Foam. Touring 500 F.Center Foam. Touring 500 F.
-
32570023800 Windshield LatchWindshield Latch
-
33414644300 Windshield DartWindshield Dart
-
34517261100 Upper HingeUpper Hinge
-
35207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
36233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
37517278100 Hood ReinforcementHood Reinforcement
-
38390906200 Rivet-Flat Head 3/16''Rivet-Flat Head 3/16''
-
39389804300 Push NutPush Nut
-
40572079200 Lamp MoldingLamp Molding
-
41517302183 ClipClip
-
42517289900 Lower HingeLower Hinge
-
43233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
44572052101 Handle DashHandle Dash
-
45517302524 Switch DashSwitch Dash
-
46391301600 WasherWasher
-
47732600030 Forming ScrewForming Screw
-
48390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
49517262800 BracketBracket
-
50414971910 R.H. Mirror Ass'y. Includes 50 - 53.R.H. Mirror Ass'y. Includes 50 - 53.
-
414972010 L.H. Mirror Ass'yL.H. Mirror Ass'y
-
51222842065 Screw M4 x 20Screw M4 x 20
-
52517124300 WasherWasher
-
53232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
54415050900 FoamFoam
-
55414510200 Reflector (Amber)Reflector (Amber)
-
56234451418 Serrated Lock Washer 5 mmSerrated Lock Washer 5 mm
-
57208651041 Phillips Screw M5 x 10Phillips Screw M5 x 10
-
58414632400 Foam-Acoustic (74''x 34''x 1/2'' Thk.)Foam-Acoustic (74''x 34''x 1/2'' Thk.)
-
414631900 Foam-Acoustic (74''x 34''x 1'' Thk.)Foam-Acoustic (74''x 34''x 1'' Thk.)
