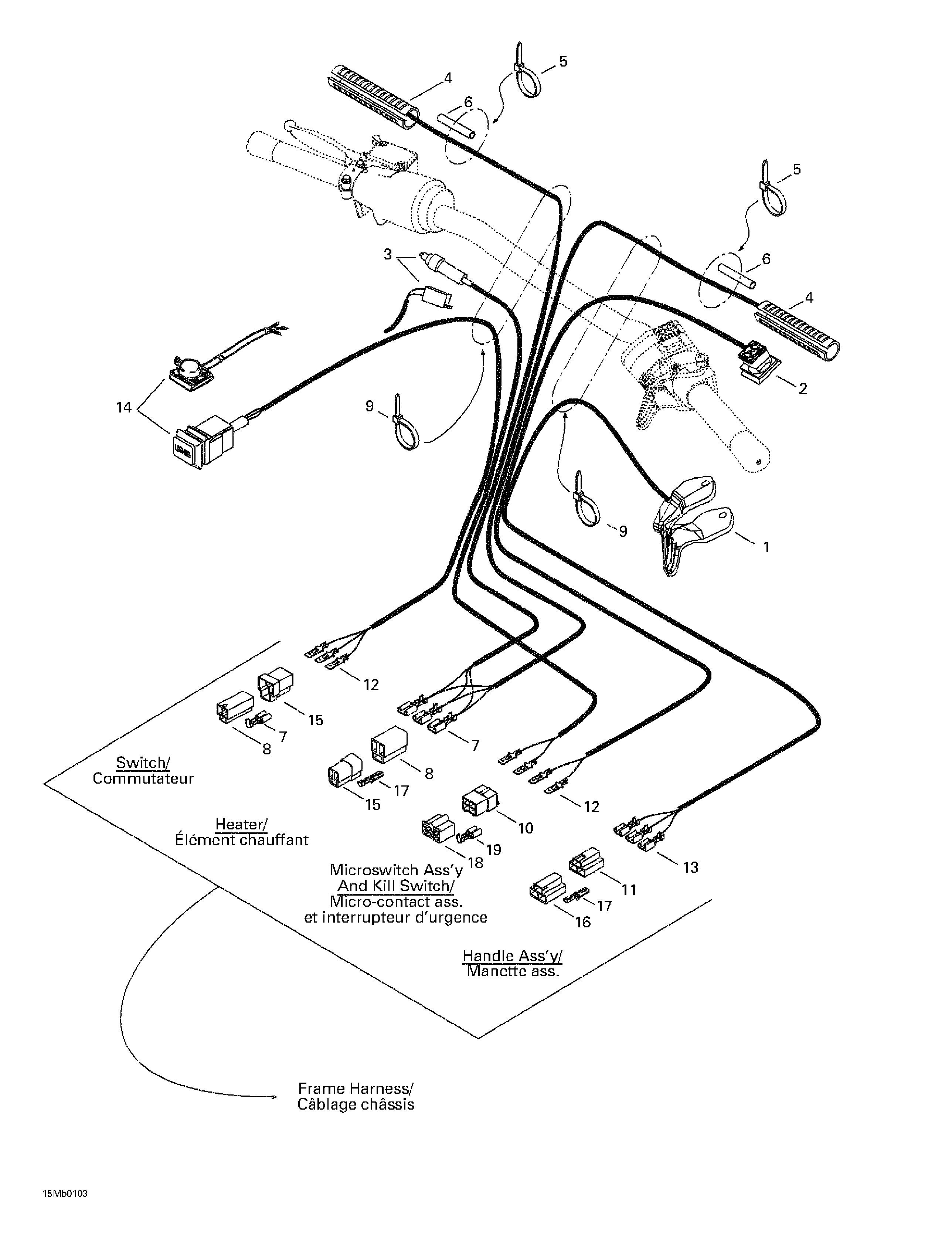

07- Steering System для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1512059145 Throttle Handle Ass'y 30 mm. Touring 380 F.Throttle Handle Ass'y 30 mm. Touring 380 F.
-
512059144 Throttle Handle Ass'y 34 mm. Touring 500 F.Throttle Handle Ass'y 34 mm. Touring 500 F.
-
2512059146 Kill SwitchKill Switch
-
3415085700 Brake Switch. Touring 380 F.Brake Switch. Touring 380 F.
-
507032284 Microswitch Ass'y. Touring 500 F.Microswitch Ass'y. Touring 500 F.
-
4515175387 Heating ElementHeating Element
-
5293750001 Tie Rap 94 mmTie Rap 94 mm
-
6515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
7561503100 Female TerminalFemale Terminal
-
8409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
9414115200 Tie Rap 180 mmTie Rap 180 mm
-
10409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
11409008500 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
12409210000 Male TerminalMale Terminal
-
13515175253 Female TerminalFemale Terminal
-
14415085800 Dimmer Switch. Touring 380 F.Dimmer Switch. Touring 380 F.
-
515175371 Light Switch. Touring 500 F.Light Switch. Touring 500 F.
-
15409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
16409008600 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
17409206100 Male TerminalMale Terminal
-
18409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
19561503200 Female TerminalFemale Terminal
