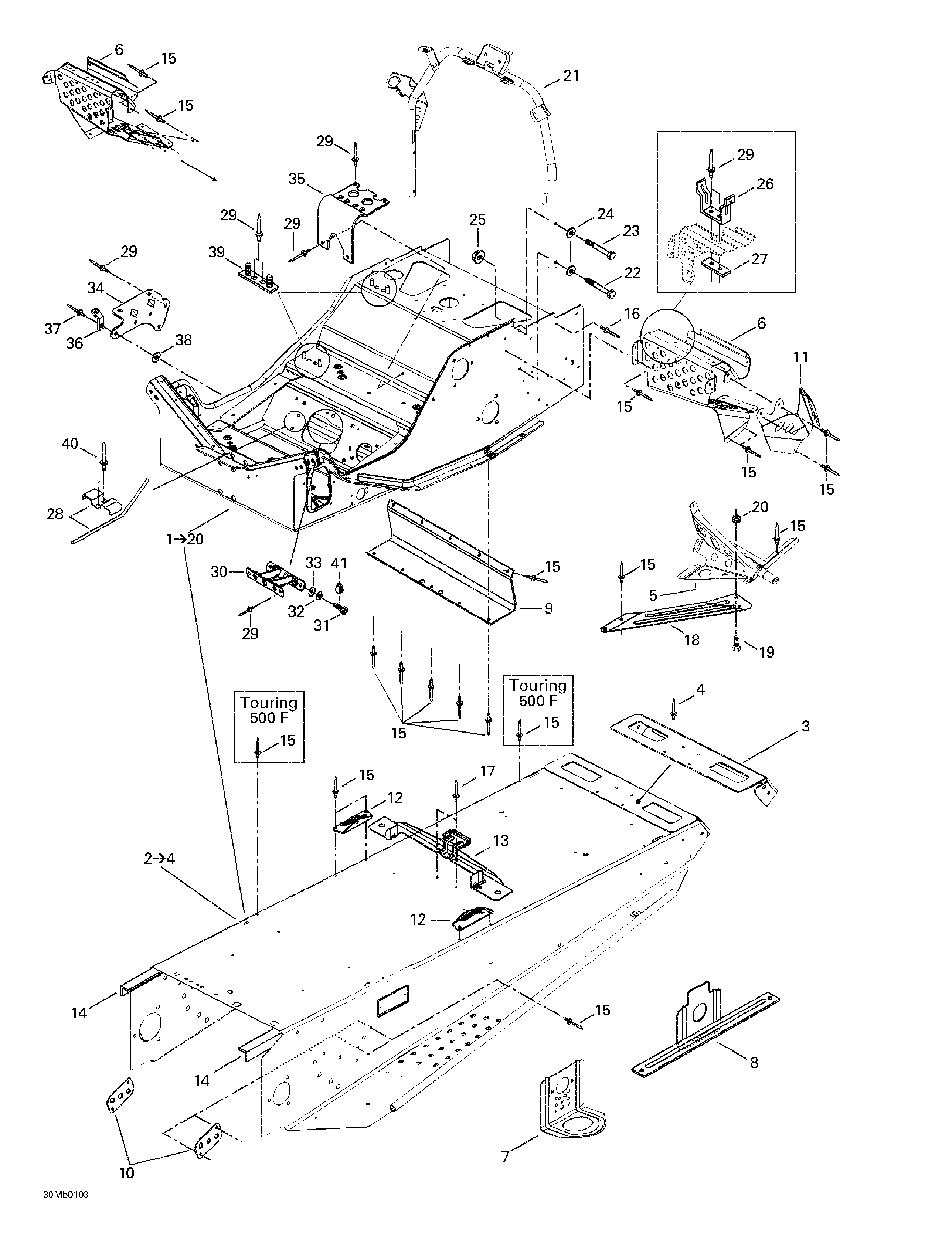

09- Frame And Accessories для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1518322498 Frame Ass'y. Includes 1 - 20.Frame Ass'y. Includes 1 - 20.
-
2518322540 Forming Frame. Includes 2 - 4.Forming Frame. Includes 2 - 4.
-
3548872033 Rear CapRear Cap
-
4390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
5518320506 R.H. Footrest SupportR.H. Footrest Support
-
518320507 L.H. Footrest SupportL.H. Footrest Support
-
6518318933 R.H. FootrestR.H. Footrest
-
518318934 L.H. FootrestL.H. Footrest
-
7518321495 Front BracketFront Bracket
-
8518316716 R.H. Rear Bracket. Touring 380 F.R.H. Rear Bracket. Touring 380 F.
-
518321496 R.H. Rear Bracket. Touring 500 F.R.H. Rear Bracket. Touring 500 F.
-
518316715 L.H. Rear Bracket. Touring 380 F.L.H. Rear Bracket. Touring 380 F.
-
518321497 L.H. Rear Bracket. Touring 500 F.L.H. Rear Bracket. Touring 500 F.
-
9518321867 DeflectorDeflector
-
10518201321 Reinforcement PlateReinforcement Plate
-
11518308715 R.H. Upper PlateR.H. Upper Plate
-
518308714 L.H. Upper PlateL.H. Upper Plate
-
12517266900 R.H. Tank BracketR.H. Tank Bracket
-
517267000 L.H. Tank BracketL.H. Tank Bracket
-
13518317506 Seat BracketSeat Bracket
-
14518316768 L.H. Tunnel ReinforcementL.H. Tunnel Reinforcement
-
518316769 R.H. Tunnel ReinforcementR.H. Tunnel Reinforcement
-
15390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
18518321958 R.H. Reinforcement PlateR.H. Reinforcement Plate
-
518321959 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
19207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
20233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
21518321428 Handle Steering SupportHandle Steering Support
-
22207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
23207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
24234061410 Flat Washer 6 mmFlat Washer 6 mm
-
25233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26518202100 Pulley Guard BracketPulley Guard Bracket
-
27518207500 ReinforcementReinforcement
-
28517276100 Rope GuideRope Guide
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30518304741 Reinforcement PlateReinforcement Plate
-
31207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
32234181401 Lock Washer 8 mmLock Washer 8 mm
-
33224081201 Flat WasherFlat Washer
-
34518316704 Muffler Support. Touring 380 F.Muffler Support. Touring 380 F.
-
518206300 Muffler Support. Touring 500 F.Muffler Support. Touring 500 F.
-
35518310400 Air Intake SupportAir Intake Support
-
36514034000 Spring Bracket. Touring 380 F.Spring Bracket. Touring 380 F.
-
37390402300 Pop Rivet 3/16''. Touring 380 F.Pop Rivet 3/16''. Touring 380 F.
-
38517225900 Flat Washer. Touring 380 F.Flat Washer. Touring 380 F.
-
39518315300 Support PlateSupport Plate
-
40390909200 Rivet AvexRivet Avex
-
41293800005 Loctite 271, 10 mlLoctite 271, 10 ml
