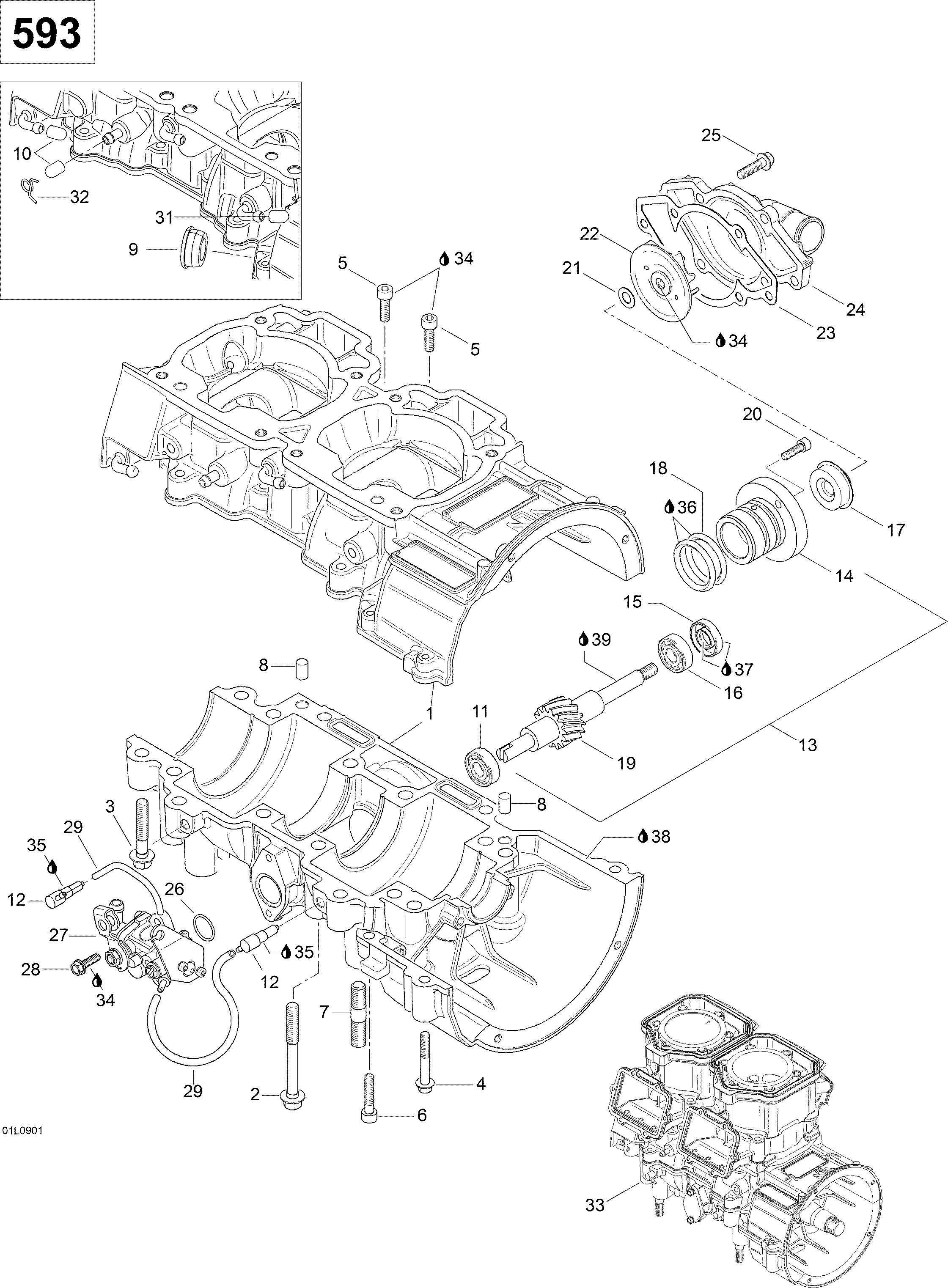

01- Crankcase _01L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1420888769 Crankcase ass'y. Includes 1 to 11Crankcase ass'y. Includes 1 to 11
-
2420640836 Hex. Collar screw M8 x 75Hex. Collar screw M8 x 75
-
3420640431 Hex. Collar screw M8 x 45Hex. Collar screw M8 x 45
-
4420640311 Hex. Collar screw M6 x 45Hex. Collar screw M6 x 45
-
5420840401 Socket head screw M6 x 22Socket head screw M6 x 22
-
6420840880 Socket head screw M6 x 30Socket head screw M6 x 30
-
7420940704 Stud M10 x 23Stud M10 x 23
-
8420632010 Dowel pinDowel pin
-
9420860965 Cable grommetCable grommet
-
10420960770 CapCap
-
11420232100 Ball bearingBall bearing
-
12420956510 Check valveCheck valve
-
13420837421 Water pump assy. Includes 13 to 19Water pump assy. Includes 13 to 19
-
15420230196 Oil sealOil seal
-
16420232100 Ball bearingBall bearing
-
17420650370 Oil sealOil seal
-
18420950890 O-ringO-ring
-
20420840511 Socket head screw M5 x 16Socket head screw M5 x 16
-
21420227945 Thrust washerThrust washer
-
22420222505 Water impellerWater impeller
-
23420931810 GasketGasket
-
24420922630 Water pump housingWater pump housing
-
25420240031 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
26420230400 O-ringO-ring
-
27420888260 Oil pump ass'yOil pump ass'y
-
28420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
29414413800 Oil lineOil line
-
31420960777 Protection capProtection cap
-
32420938190 ClampClamp
-
33300059311 Short block assyShort block assy
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
36413707000 Molykote 111Molykote 111
-
37420899271 Grease Petamo Ghy 133N, 400 gGrease Petamo Ghy 133N, 400 g
-
38420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
39413802900 Injection oil (12 x1 liter)Injection oil (12 x1 liter)
