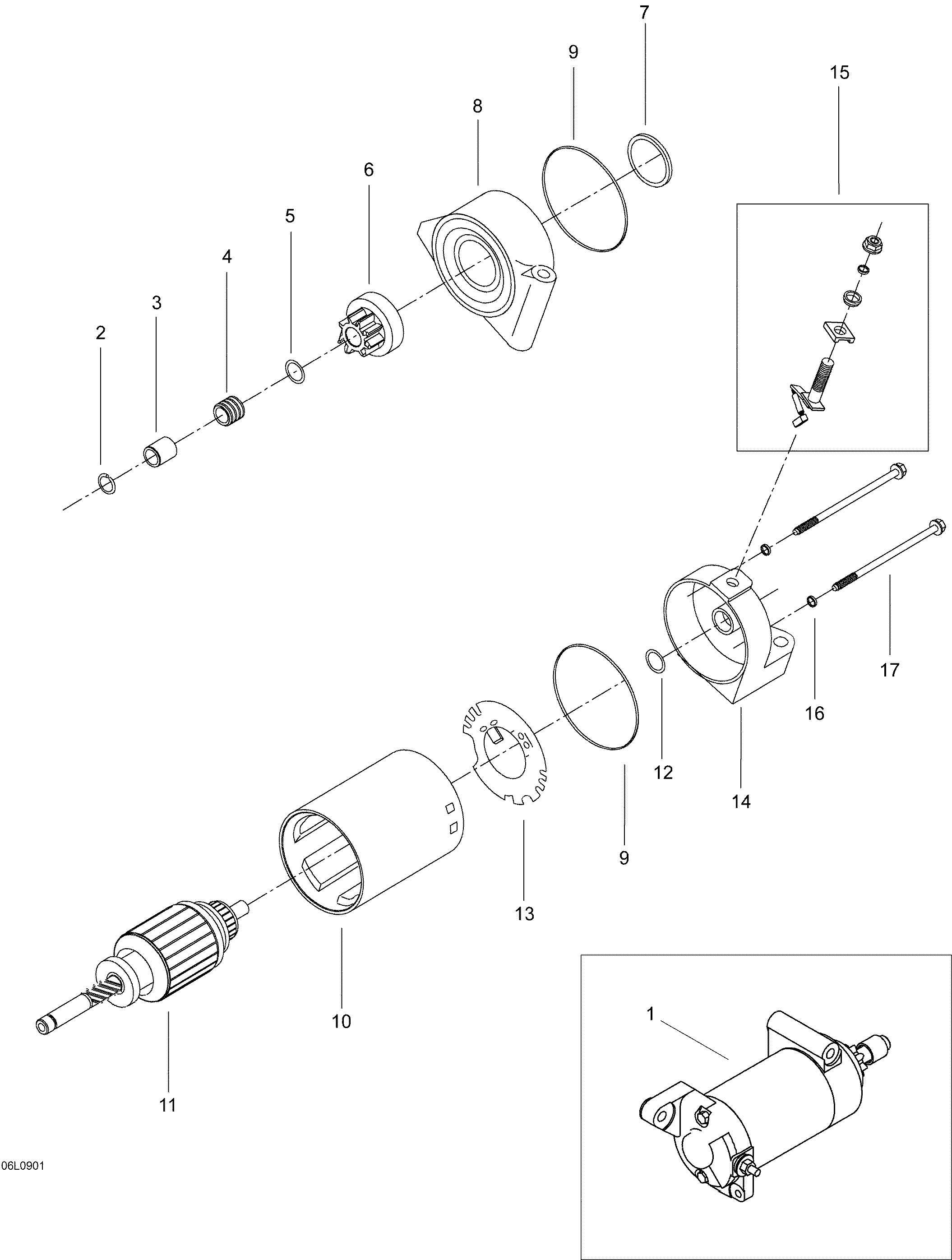

04- Electric Starter _06L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1515176003 Electric startElectric start
-
2410207700 CirclipCirclip
-
3515175928 Pinion nutPinion nut
-
4410922957 SpringSpring
-
5278001105 WasherWasher
-
6515175783 ClutchClutch
-
7415129342 O-ringO-ring
-
8515175784 Housing assyHousing assy
-
9415129342 O-ringO-ring
-
11515175785 Armature assyArmature assy
-
13515175786 Holder assyHolder assy
-
14515175787 Housing assyHousing assy
-
15410212100 Brush kitBrush kit
-
16278000060 O-ringO-ring
-
17515175788 ScrewScrew
