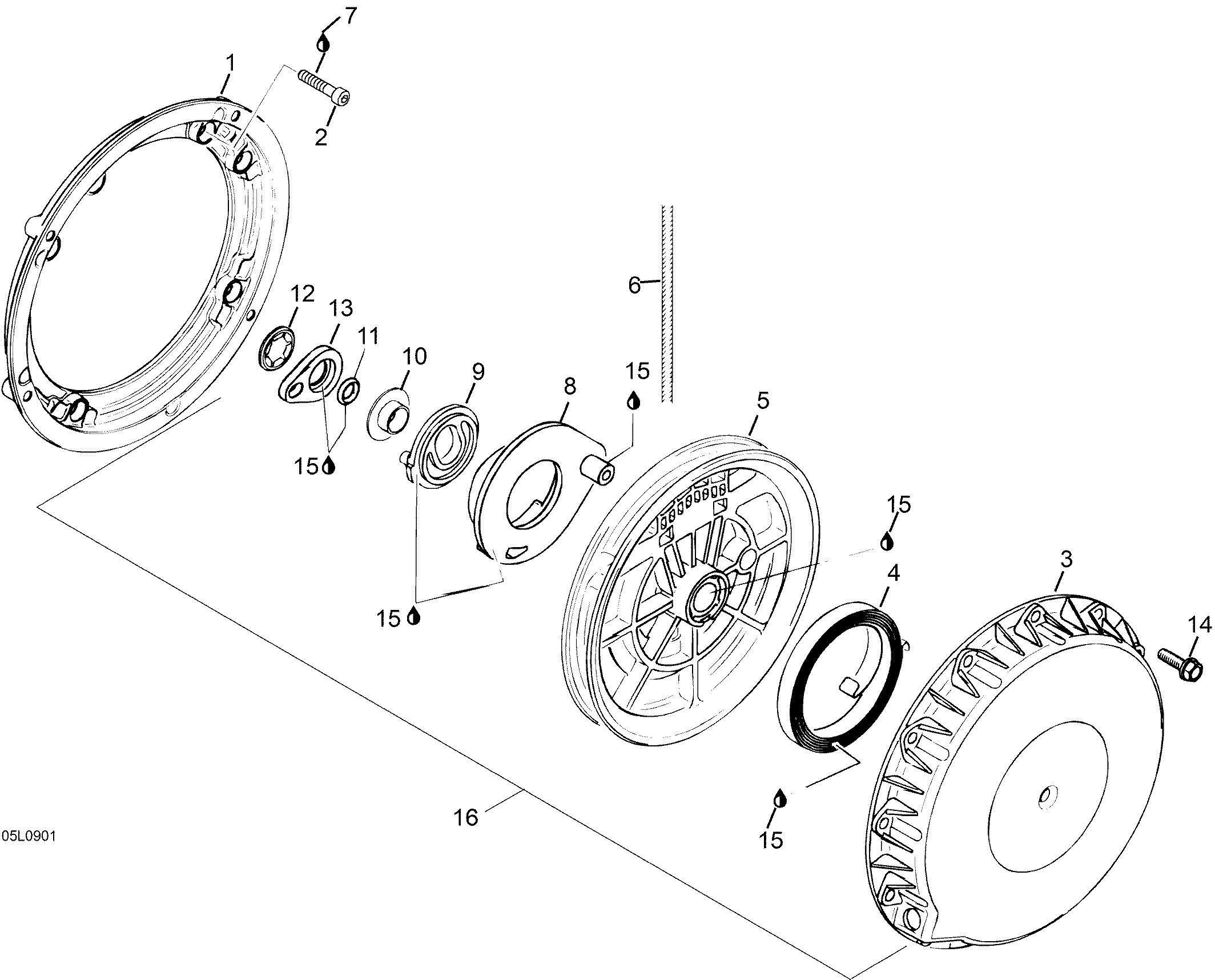

04- Rewind Starter _05L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1420810868 Connecting flangeConnecting flange
-
2420241236 Socket head screw M6 x 16Socket head screw M6 x 16
-
3420910252 Starter housingStarter housing
-
4420889766 Rewind spring ass'yRewind spring ass'y
-
5420852288 Rope sheaveRope sheave
-
6412500200 Starter rope 2200 mmStarter rope 2200 mm
-
7293800060 Loctite 243, 10mlLoctite 243, 10ml
-
8420852297 PawlPawl
-
9420852308 Pawl lockPawl lock
-
10420847926 Stage slleveStage slleve
-
11420250407 O-ringO-ring
-
12420852520 Lock ringLock ring
-
13420845560 Locking elementLocking element
-
14420941256 Torx taptite screw M6 x 20Torx taptite screw M6 x 20
-
15420899763 Molykote PG 54, 10gMolykote PG 54, 10g
-
16420889765 Rewind starter ass'y. Includes 3 to 12Rewind starter ass'y. Includes 3 to 12
