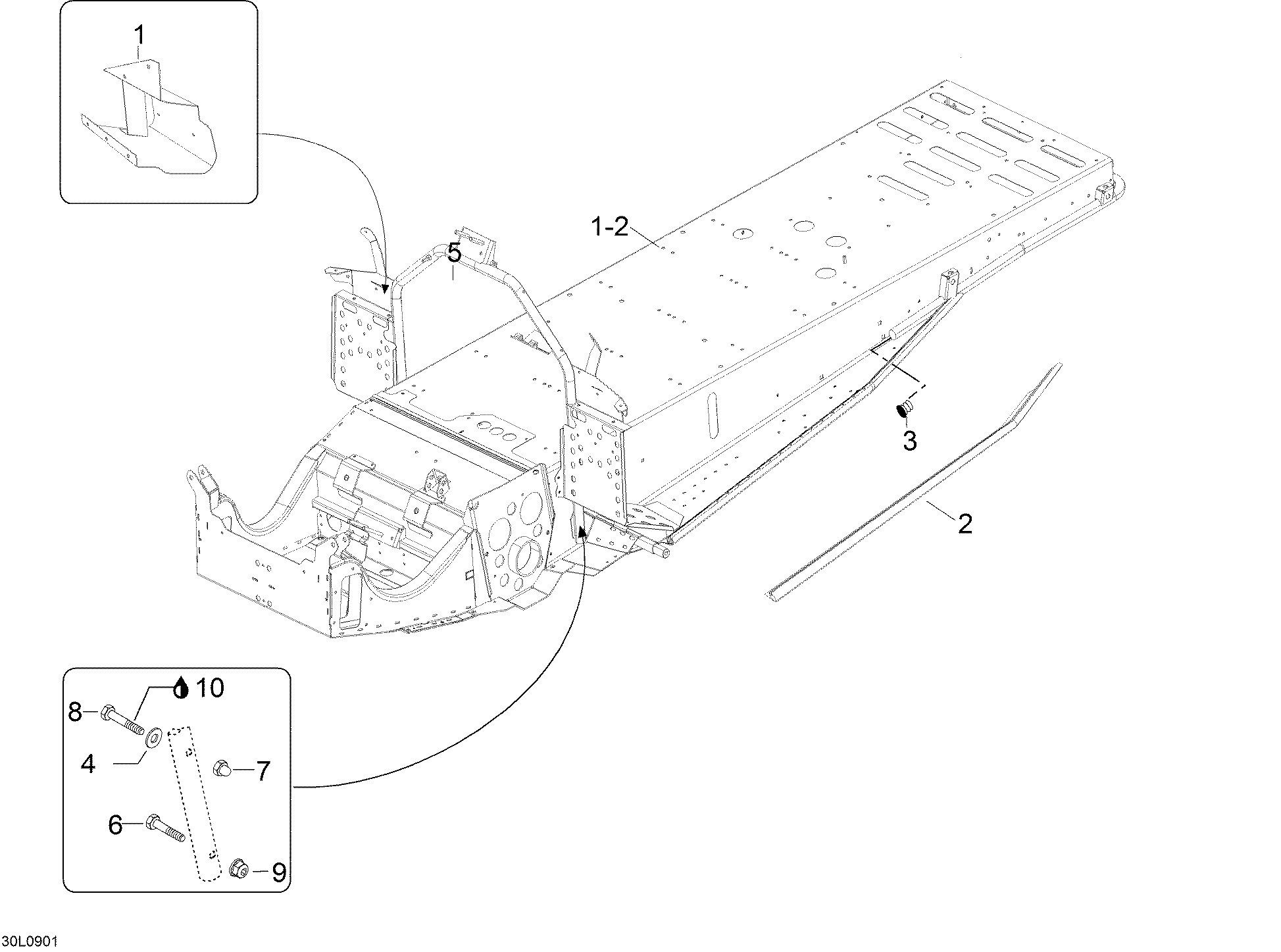

09- Frame _30L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
-605155129 Frame ass'y. Includes 1 to 2Frame ass'y. Includes 1 to 2
-
1605350839 R.H. FootrestR.H. Footrest
-
1605350840 L.H. FootrestL.H. Footrest
-
2605250773 L.H. SupportL.H. Support
-
2605250774 R.H. SupportR.H. Support
-
328210 PlugPlug
-
420003 Washer A6,4Washer A6,4
-
5605151693 Steering supportSteering support
-
640003 Hex. screw M6 x 35Hex. screw M6 x 35
-
733051 Nut M6Nut M6
-
840002 Hex. screw M6 x 40Hex. screw M6 x 40
-
933200 Elastic flanged nut, M6 NylockElastic flanged nut, M6 Nylock
-
10293800060 Loctite 243, 10mlLoctite 243, 10ml
