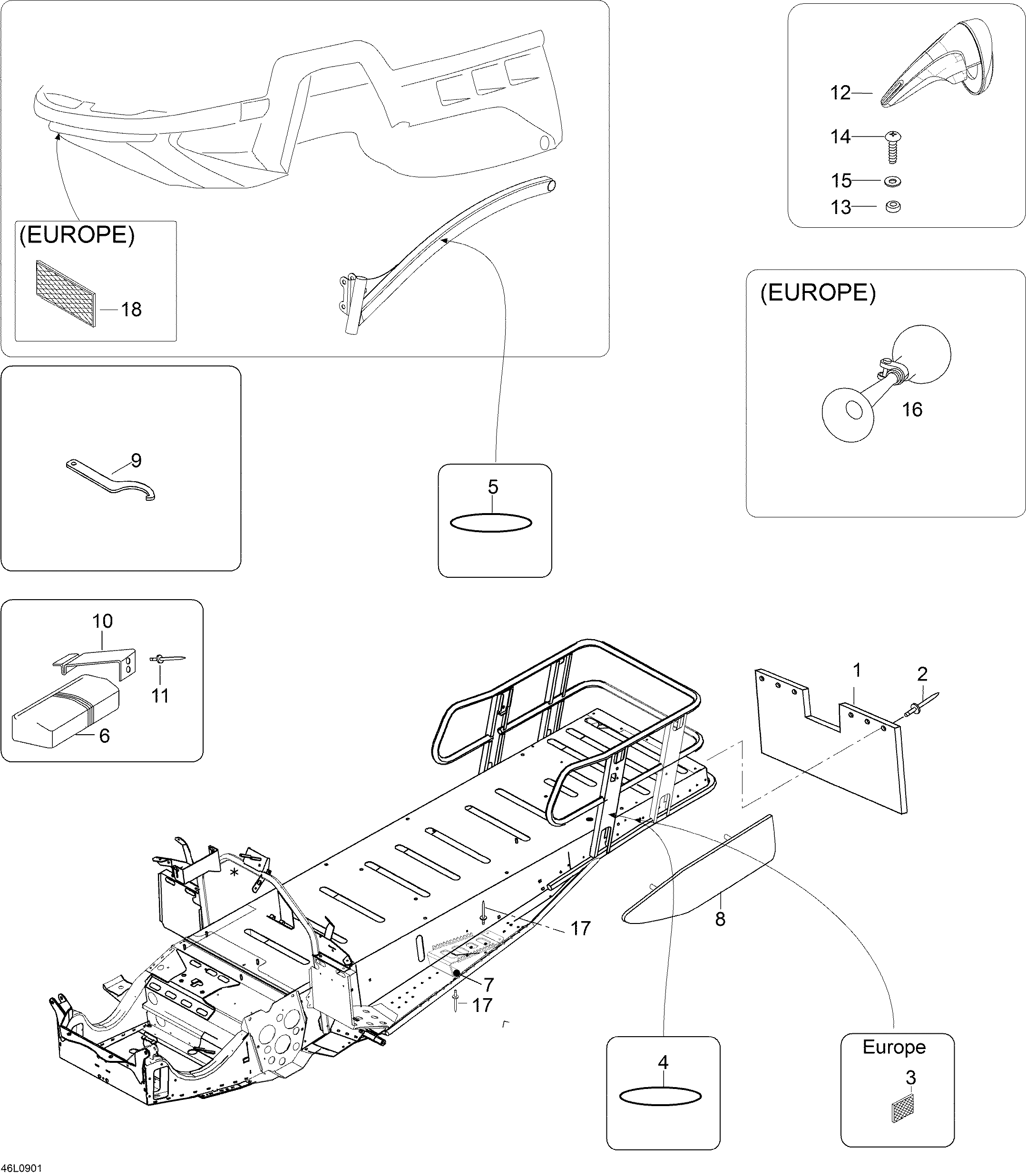

09- Utilities _46L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1538629 Snow guardSnow guard
-
236036 RivetRivet
-
3414510100 Reflector (Red). NAReflector (Red). NA
-
321121 Reflector (Yellow). EuropeReflector (Yellow). Europe
-
4520000523 Reflegtor, redReflegtor, red
-
5520000525 Reflegtor, yellowReflegtor, yellow
-
6605350525 Tool ass'yTool ass'y
-
7605354068 FootrestFootrest
-
8605354746 Side snow quard L.HSide snow quard L.H
-
8605354747 Side snow quard R.HSide snow quard R.H
-
9529035582 Wrench adjusterWrench adjuster
-
105346728 Spring plateSpring plate
-
1136108 RivetRivet
-
12517303955 Mirror KitMirror Kit
-
13250200025 RubberwasherRubberwasher
-
14250000146 ScrewScrew
-
15250200024 WasherWasher
-
16549011291 Horn. EuropeHorn. Europe
-
1736489 RivetRivet
-
1821118 Reflector (White). EuropeReflector (White). Europe
