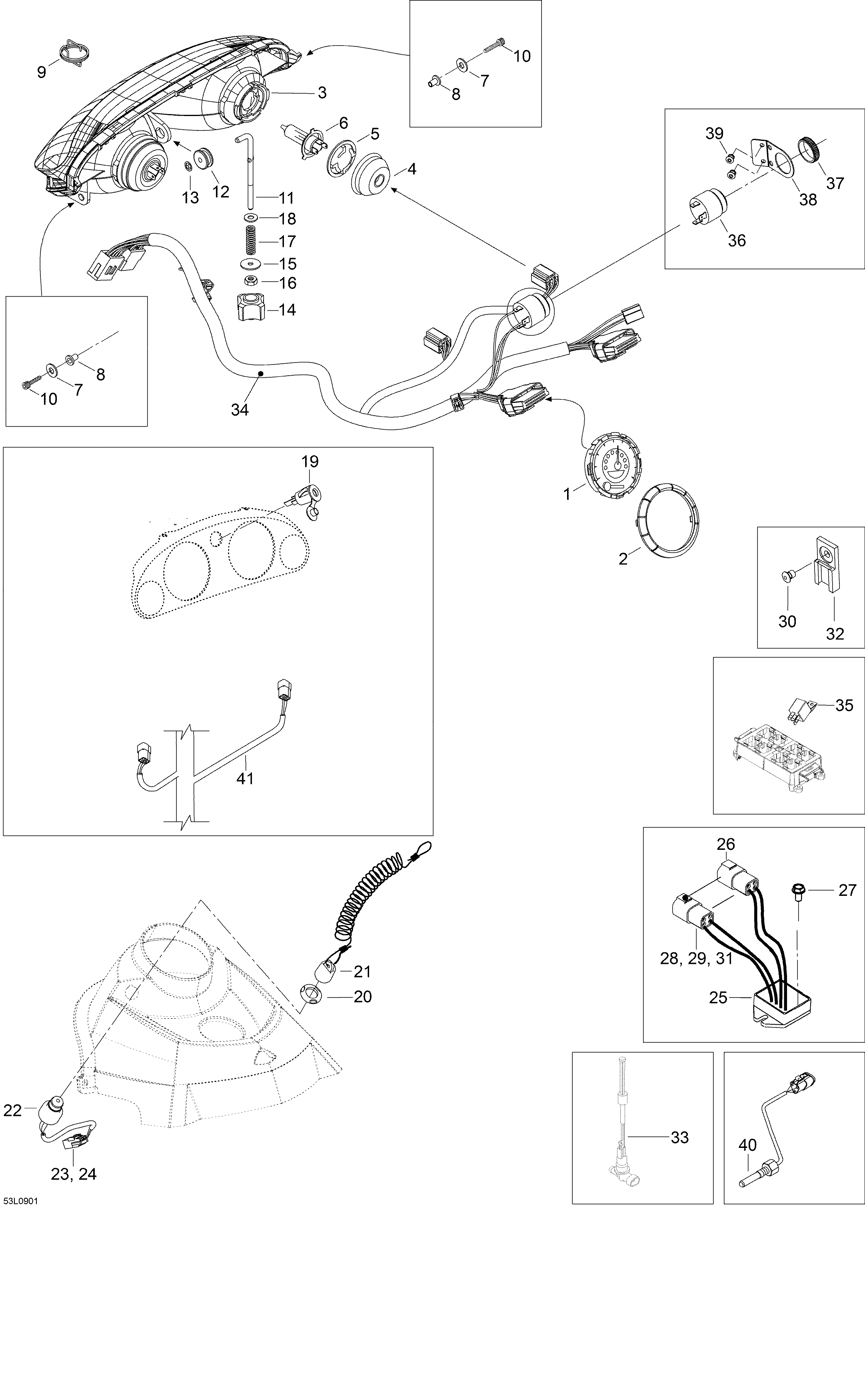

06- Electrical Accessories _53L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1515176477 SpeedometerSpeedometer
-
2515176242 RingRing
-
3515176311 Halogen headlamp. Includes 12 to 15Halogen headlamp. Includes 12 to 15
-
4515175911 CoverCover
-
5515175910 Bulp holderBulp holder
-
6410504401 Halogen bulpHalogen bulp
-
720008 Washer A5,3Washer A5,3
-
8250100018 Well-nutWell-nut
-
95447238 SpringSpring
-
1040235 Hex. screw M5 x 35Hex. screw M5 x 35
-
11605450023 Adjusting rodAdjusting rod
-
12415100800 GrommetGrommet
-
13732610072 Push NutPush Nut
-
14515175548 KnobKnob
-
1520038 Washer 6mmWasher 6mm
-
1633010 Elastic stop nut M6Elastic stop nut M6
-
17415100600 SpringSpring
-
1820003 Washer A6,4Washer A6,4
-
19605352915 Flush mounted socketFlush mounted socket
-
20278000508 NutNut
-
21515176461 DESS capDESS cap
-
22515175797 DESS switch. Includes 22to 24DESS switch. Includes 22to 24
-
23515175232 Male terminalMale terminal
-
24515175494 Male terminal housingMale terminal housing
-
25515175968 Voltage regulator. Include 25 to 31Voltage regulator. Include 25 to 31
-
26278001477 Male terminal housingMale terminal housing
-
2740377 Hex. screw M6 x 20Hex. screw M6 x 20
-
28515175568 Female terminalFemale terminal
-
29278001478 Male lockMale lock
-
3036005 RivetRivet
-
31293000052 Sealing capSealing cap
-
32515175917 ClipClip
-
33605452095 Oil sensor leverOil sensor lever
-
34605354749 Harness ass'yHarness ass'y
-
35410113604 RelayRelay
-
36515176035 HornHorn
-
37414805101 RingRing
-
385447941 BracketBracket
-
3936005 RivetRivet
-
40515176132 SenderSender
-
41605353266 Harness ass'yHarness ass'y
