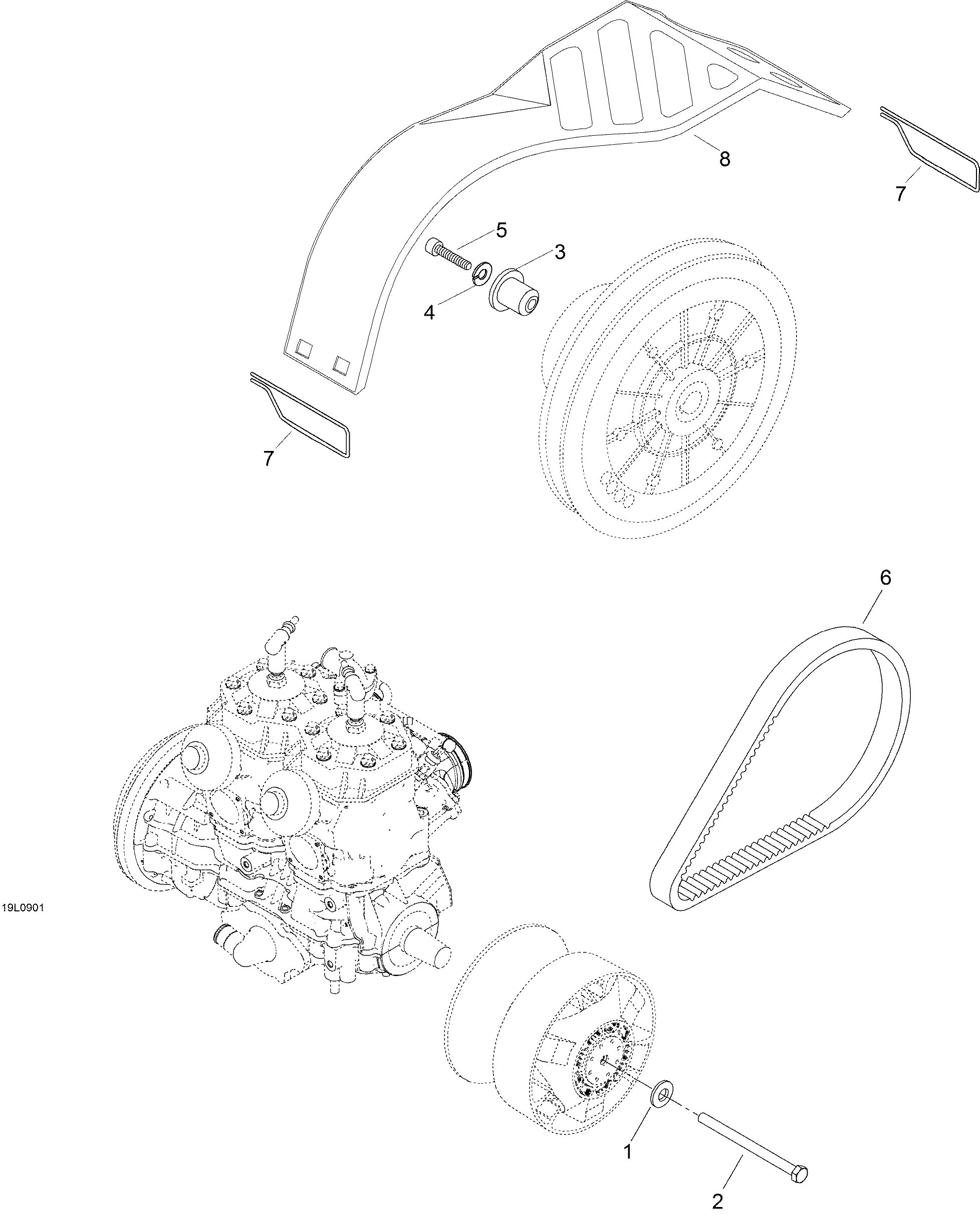

05- Pulley System _19L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
120110 Conical spring washerConical spring washer
-
2417300296 Drive pulley boltDrive pulley bolt
-
35443201 SleeveSleeve
-
420014 Lock washer A8Lock washer A8
-
540286 Socket head screw M8 x 45Socket head screw M8 x 45
-
6605348425 Drive beltDrive belt
-
75442726 PinPin
-
8605152654 Belt quardBelt quard
