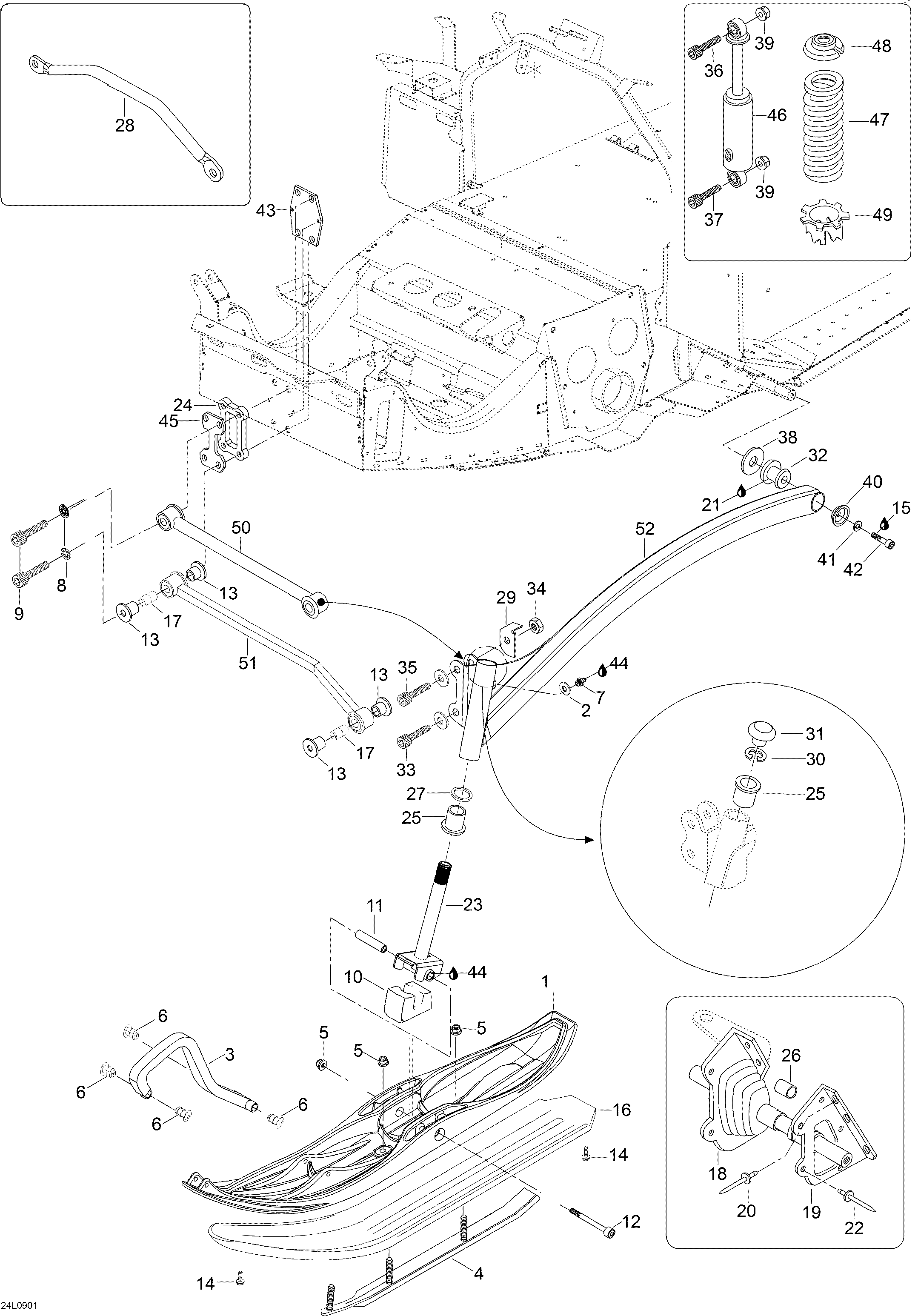

07- Front Suspension And Ski _24L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1605153775 Plastic ski ass'y. Includes 1 to 2Plastic ski ass'y. Includes 1 to 2
-
220007 Washer A6,4Washer A6,4
-
3505070963 Handle, blackHandle, black
-
4619400006 Carbide ski runner kitCarbide ski runner kit
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
6505071812 RetainerRetainer
-
734011 Grease nippleGrease nipple
-
820074 Lock washerLock washer
-
940370 Socket head screw M12 x 75Socket head screw M12 x 75
-
10605348458 Ski stopperSki stopper
-
11506133300 SleeveSleeve
-
1240225 Socket head screw M10x140Socket head screw M10x140
-
13506149100 CushionCushion
-
14605640019 Plastofast Screw 6x18 MP PZPlastofast Screw 6x18 MP PZ
-
15293800060 Loctite 243, 10mlLoctite 243, 10ml
-
16605153964 Ski liner. NASki liner. NA
-
17605450024 SleeveSleeve
-
18570024800 R.H. Tie rod capR.H. Tie rod cap
-
18570024900 L.H. Tie rod capL.H. Tie rod cap
-
19605355206 R.H. retainer ringR.H. retainer ring
-
19605355205 L.H. retainer ringL.H. retainer ring
-
2036036 RivetRivet
-
21293550030 Grease, super lubeGrease, super lube
-
2236009 RivetRivet
-
23505072001 Ski legSki leg
-
24605350191 Spacer plateSpacer plate
-
25505070003 CushionCushion
-
26572036500 CushionCushion
-
27505070004 WasherWasher
-
28605352875 Support shaftSupport shaft
-
29605448861 R.H. LimiterR.H. Limiter
-
29605448862 L.H. LimiterL.H. Limiter
-
30371910400 CirclipCirclip
-
31572091300 CapCap
-
32570062200 Rubber damperRubber damper
-
3340371 Socket head screw M12 x 55Socket head screw M12 x 55
-
3433013 Elastic stop nut. M12Elastic stop nut. M12
-
3540306 Socket head screw M12 x 60Socket head screw M12 x 60
-
3640837 Socket head screw M10 x 55Socket head screw M10 x 55
-
3740136 Socket head screw. M10 x 50Socket head screw. M10 x 50
-
38503146700 WasherWasher
-
3933012 Elastic stop nut. M10Elastic stop nut. M10
-
40506115800 CupCup
-
4120014 Lock washer A8Lock washer A8
-
4240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
43605353972 Nut plateNut plate
-
44293550033 Synthetic greaseSynthetic grease
-
45605450900 Spacer plateSpacer plate
-
4623183 ShockShock
-
4725067 SpringSpring
-
48230076 Spring stopperSpring stopper
-
49230078 CamCam
-
50605350022 Upper armUpper arm
-
51605252224 Lower armLower arm
-
52605251768 R.H. Swing armR.H. Swing arm
-
52605251767 L.H. Swing armL.H. Swing arm
