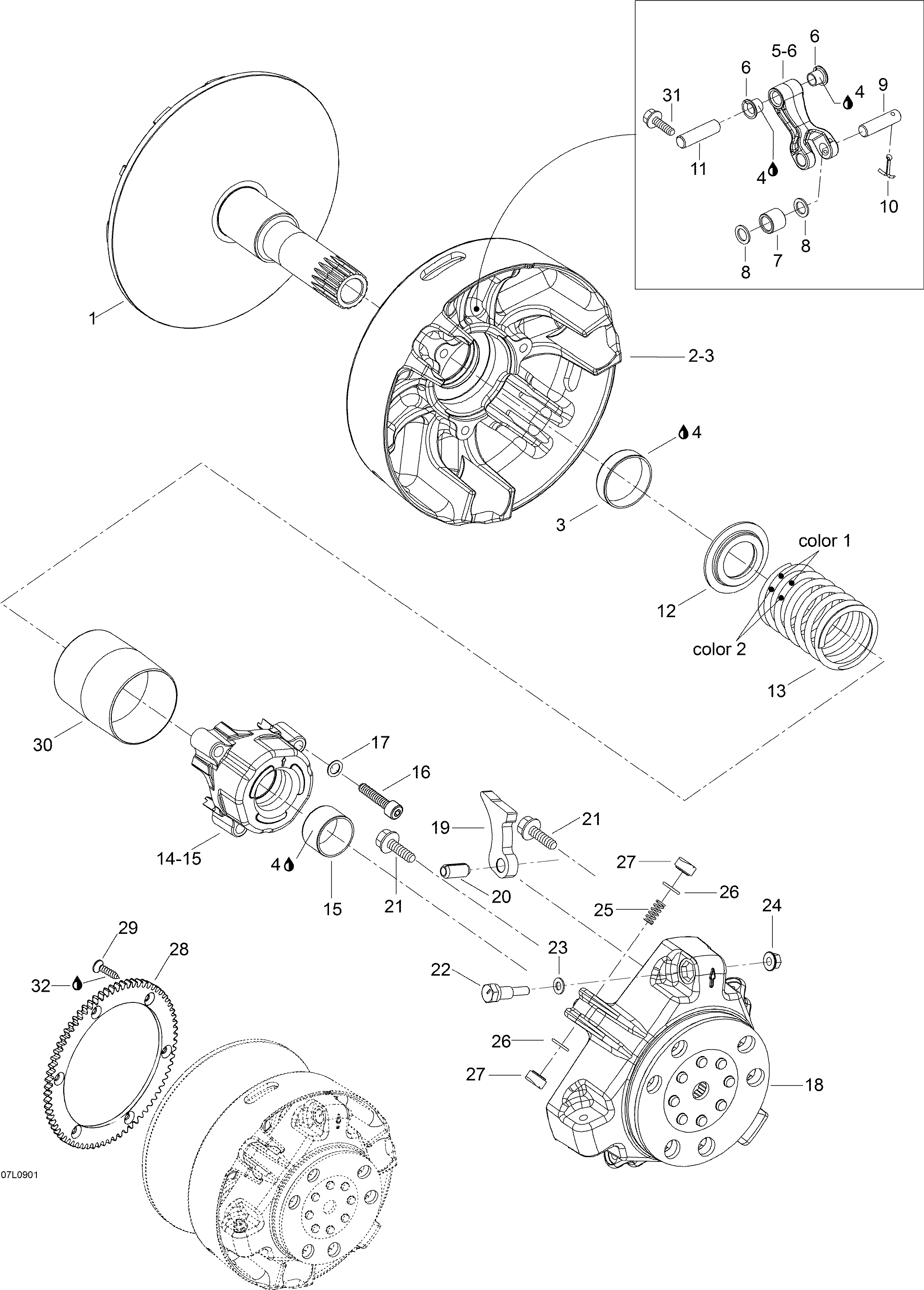

05- Drive Pulley _07L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1417222777 Fixe flangeFixe flange
-
2417222181 Sliding flangeSliding flange
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609Loctite 609
-
5417222306 Lever ass'y. Includes 5 to 6Lever ass'y. Includes 5 to 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller ass'yRoller ass'y
-
8417004302 Thrust washerThrust washer
-
9417222594 PinPin
-
10732958001 Cotter pinCotter pin
-
11417009202 Lever axleLever axle
-
12417222312 Spring seatSpring seat
-
13414993000 Spring (Yellow/Red)Spring (Yellow/Red)
-
14417007500 Spring cover ass'y. Includes 14 to 15Spring cover ass'y. Includes 14 to 15
-
15417009204 Spring cover bushingSpring cover bushing
-
16205084044 Socket head screw M6 x 40Socket head screw M6 x 40
-
17250200009 WasherWasher
-
18417222213 Gouvernor cup ass'yGouvernor cup ass'y
-
19417222444 Ramp 600Ramp 600
-
20250400009 Dowel tube M8 x 24Dowel tube M8 x 24
-
21250000059 Hex. locking screw M6 x 18Hex. locking screw M6 x 18
-
22417005500 Calibration screwCalibration screw
-
23417005600 WasherWasher
-
24233061414 Locking nut M6Locking nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417005800 Shoe sliderShoe slider
-
28417223738 Ring gearRing gear
-
29250000049 ScrewScrew
-
30417009205 ProtectorProtector
-
31210361296 Forming screwForming screw
-
32293800005 Loctite 271, 10mlLoctite 271, 10ml
