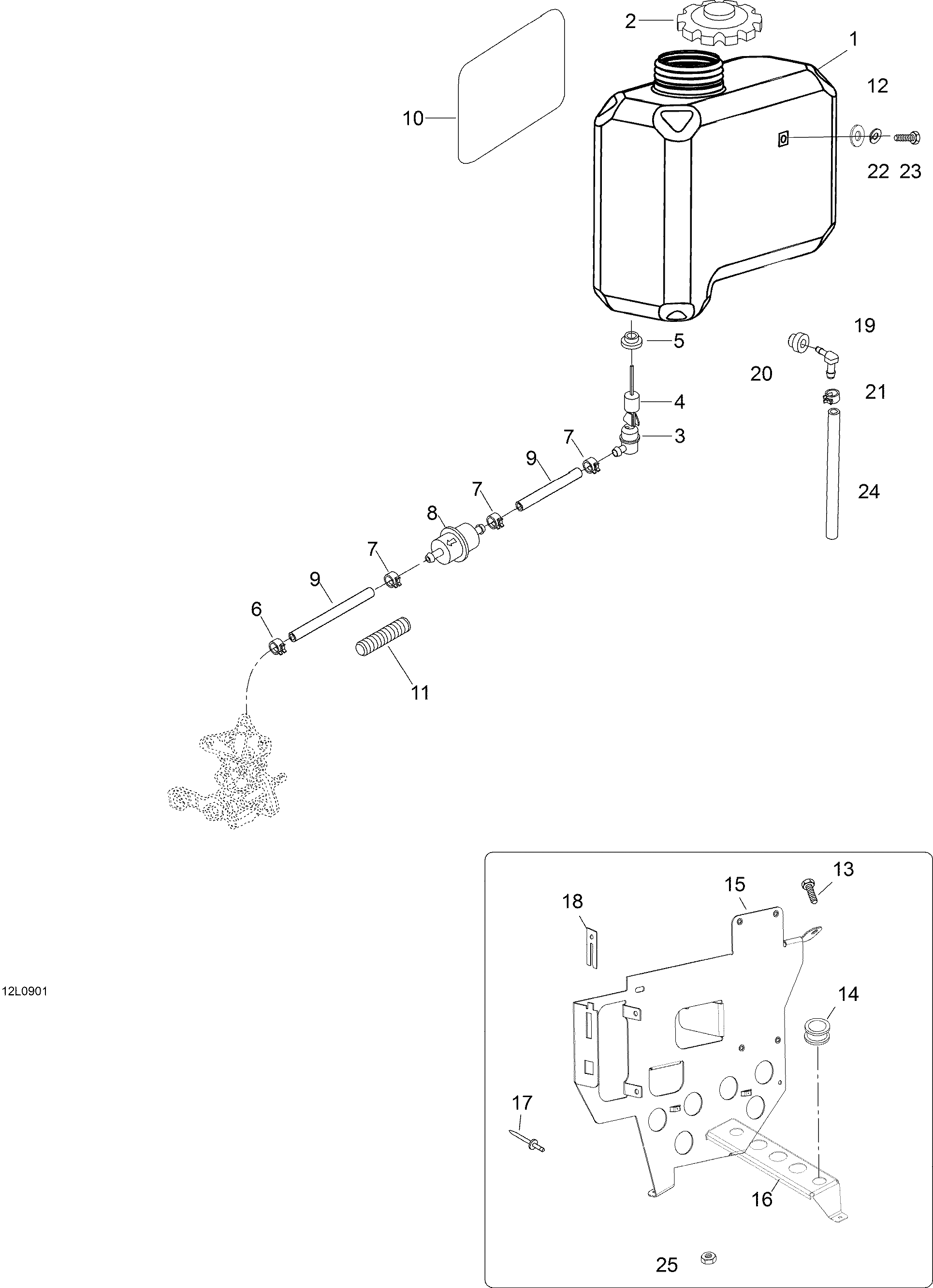

02- Oil System _12L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1605155569 Oil tankOil tank
-
2519000044 CapCap
-
3605452095 Oil level sensorOil level sensor
-
4414681900 Float for sensorFloat for sensor
-
5570023000 GrommetGrommet
-
6414420700 ClampClamp
-
7414415200 ClampClamp
-
8414536500 Oil filterOil filter
-
939046 HoseHose
-
105443578 Heat protectorHeat protector
-
1128015 TubingTubing
-
1220009 Washer 6mmWasher 6mm
-
1340327 ScrewScrew
-
145446766 GrommetGrommet
-
15605255412 Oiltank supportOiltank support
-
16605355414 Air intake supportAir intake support
-
1736108 RivetRivet
-
185447032 ForkplateForkplate
-
19414580700 Connector-maleConnector-male
-
20570135100 GasketGasket
-
21414554800 ClampClamp
-
2220052 Spring washerSpring washer
-
2340114 ScrewScrew
-
2439038 HoseHose
-
2533200 NutNut
