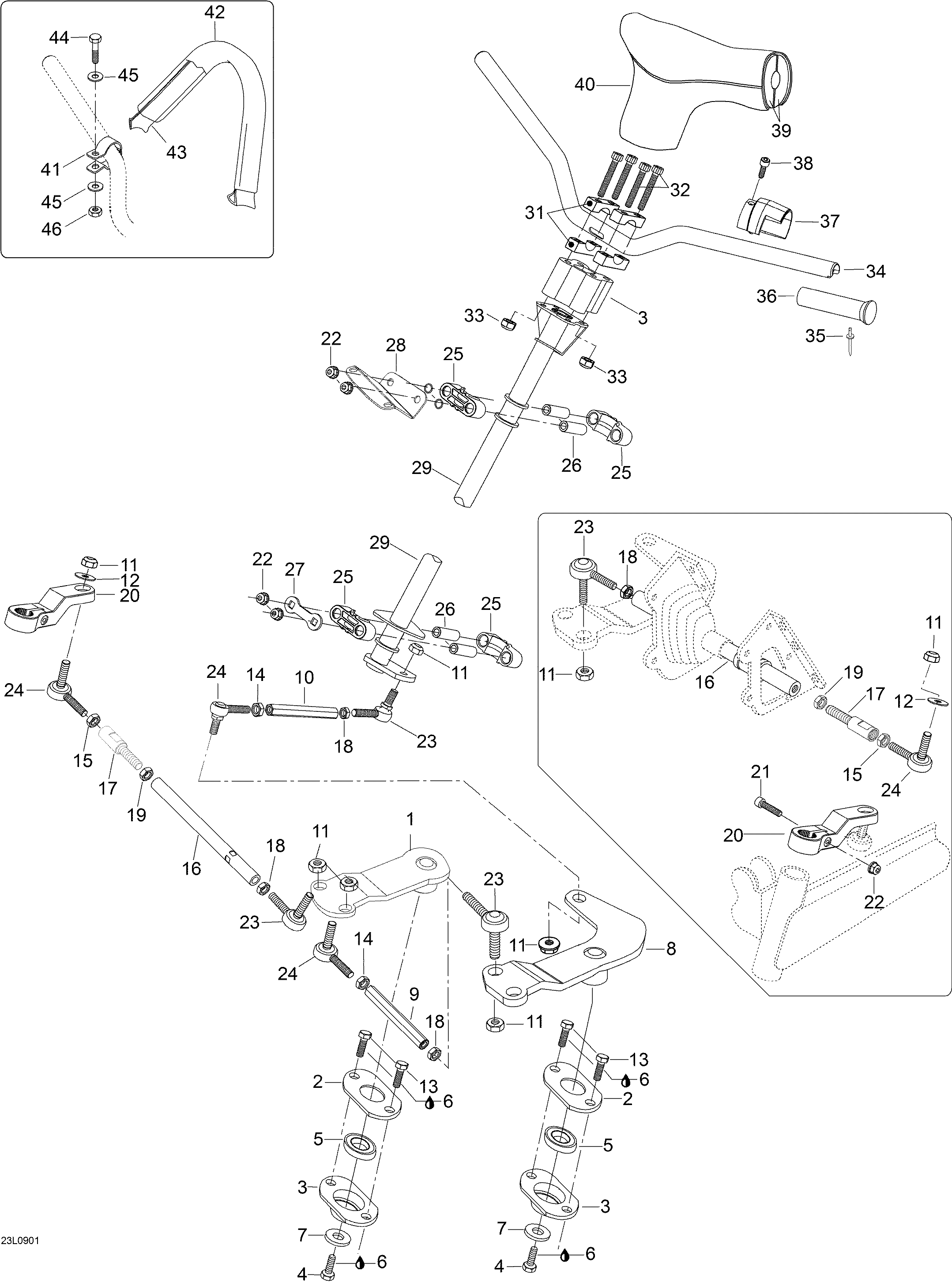

07- Steering System _23L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1605348403 R.H. LeverR.H. Lever
-
25345380 Cover plateCover plate
-
3605350644 Bearing baseBearing base
-
440337 Hex. screw M8 x 16Hex. screw M8 x 16
-
531032 Ball bearingBall bearing
-
6293800060 Loctite 243, 10mlLoctite 243, 10ml
-
75446279 WasherWasher
-
8605351764 L.H. LeverL.H. Lever
-
9605448308 Tie-rodTie-rod
-
10605450220 Tie-rodTie-rod
-
1133023 Elastic stop nut M10Elastic stop nut M10
-
1220005 Washer, hardened 10mmWasher, hardened 10mm
-
1340351 Allen screw M8 x 20Allen screw M8 x 20
-
1433019 Nut M10Nut M10
-
15732610010 Nut-hex.jam rh.M10X1.25Nut-hex.jam rh.M10X1.25
-
16605450794 RaidetankoRaidetanko
-
17605450793 AdapterAdapter
-
1833017 L.H. Nut M10L.H. Nut M10
-
19732610011 L.H. Nut M10L.H. Nut M10
-
205348261 Steering armSteering arm
-
2140828 Socket head screw M8 x 35Socket head screw M8 x 35
-
2233201 Elastic flanged nut M8Elastic flanged nut M8
-
23506151495 L.H. Ball jointL.H. Ball joint
-
24506151492 R.H. Ball jointR.H. Ball joint
-
25506150400 Half housingHalf housing
-
26506150500 Bushing housingBushing housing
-
27506150600 Stopper plateStopper plate
-
28605352322 BracketBracket
-
29605251694 Main tubeMain tube
-
30605349584 Extension (60 mm)Extension (60 mm)
-
31548448 ReinforcementReinforcement
-
3240124 Socket head screw M8 x 100Socket head screw M8 x 100
-
3333011 Elastic stop nut M8Elastic stop nut M8
-
34605251368 HandlebarHandlebar
-
3536005 RivetRivet
-
365340464 Handle gripHandle grip
-
37506151566 AdapterAdapter
-
3840390 Socket head screw M8 x 20Socket head screw M8 x 20
-
39605252110 Foam, frontFoam, front
-
39605252111 Foam, rearFoam, rear
-
40605254571 CoverCover
-
41506151792 Steel stripSteel strip
-
42415090200 GripGrip
-
43415095500 Tie-downTie-down
-
4440031 Hex. screw M6 x 25Hex. screw M6 x 25
-
4520003 Washer 6mmWasher 6mm
-
4633010 Elastic stop nut M6Elastic stop nut M6
