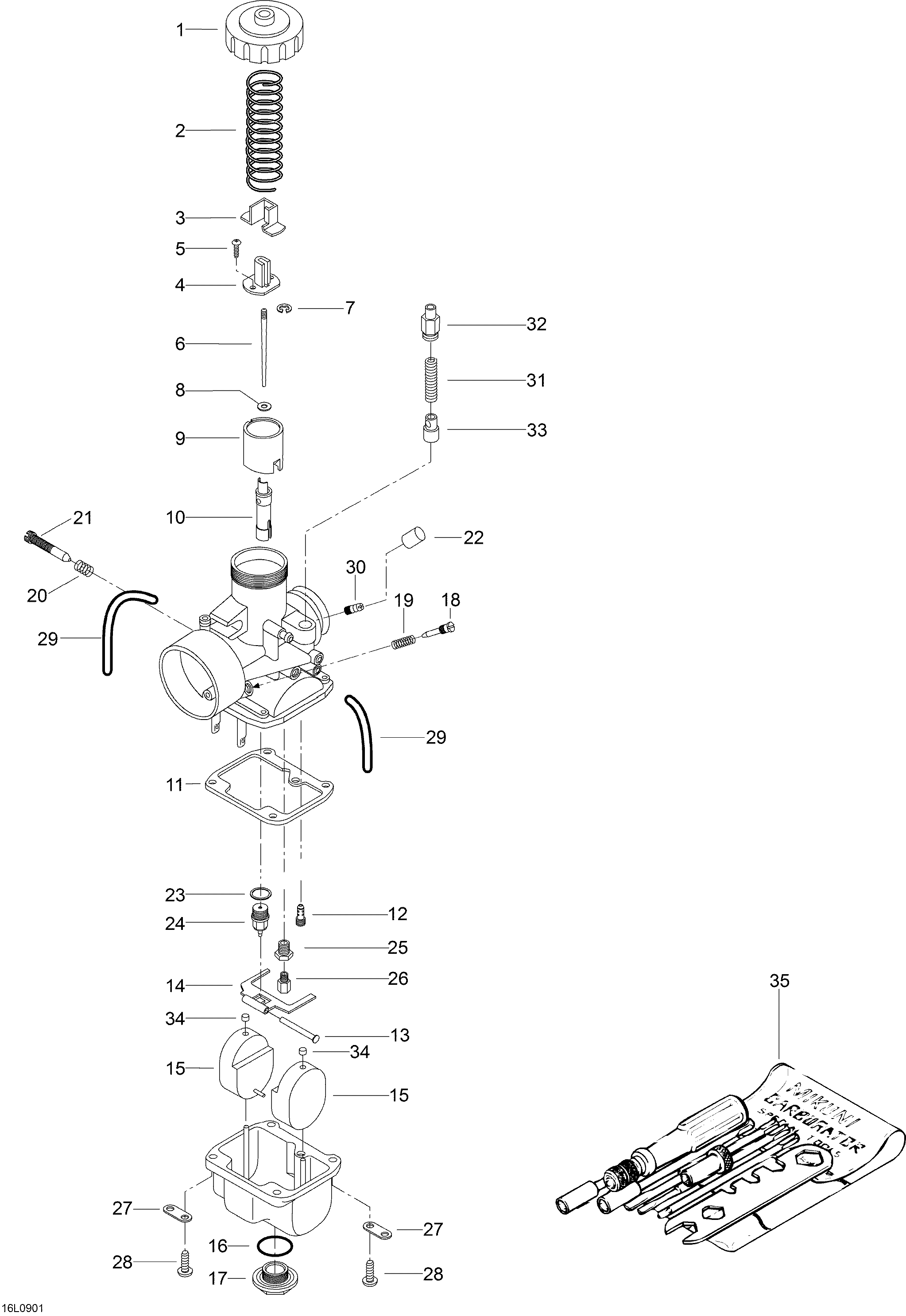

02- Carburetor _16L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1404105100 CoverCover
-
2404154800 Throttle vale springThrottle vale spring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw with washerScrew with washer
-
6404162064 Jet needle 6DGL24-3Jet needle 6DGL24-3
-
7404152400 E-ringE-ring
-
8404117000 PackingPacking
-
9404128400 Throttle valve CA 2.5Throttle valve CA 2.5
-
10404161805 Needle jet NJ480 P-9Needle jet NJ480 P-9
-
11404104700 Gasket panGasket pan
-
12404109100 Pilot jet PJ 40Pilot jet PJ 40
-
13404103300 Float arm pinFloat arm pin
-
14404105000 Float leverFloat lever
-
15404105400 FloatFloat
-
16404101500 O-ringO-ring
-
17404105600 Plug screwPlug screw
-
18404149000 Air screwAir screw
-
19404139800 SpringSpring
-
20404101700 Throttle stop screw springThrottle stop screw spring
-
21404102800 Throttle stop screwThrottle stop screw
-
2219057 CapCap
-
23404101600 WasherWasher
-
24404147400 Needle valve 1.5VNeedle valve 1.5V
-
25404105500 Guide screwGuide screw
-
26404101400 Main jet MJ 330Main jet MJ 330
-
27404103000 PlatePlate
-
28404102000 Screw and lock washerScrew and lock washer
-
29404160100 Air Vent tubeAir Vent tube
-
30404153400 NippleNipple
-
31404127400 SpringSpring
-
32404161100 Support-guideSupport-guide
-
33404160400 Plunger ass'yPlunger ass'y
-
34404105800 CapCap
-
35404112000 Tool kitTool kit
