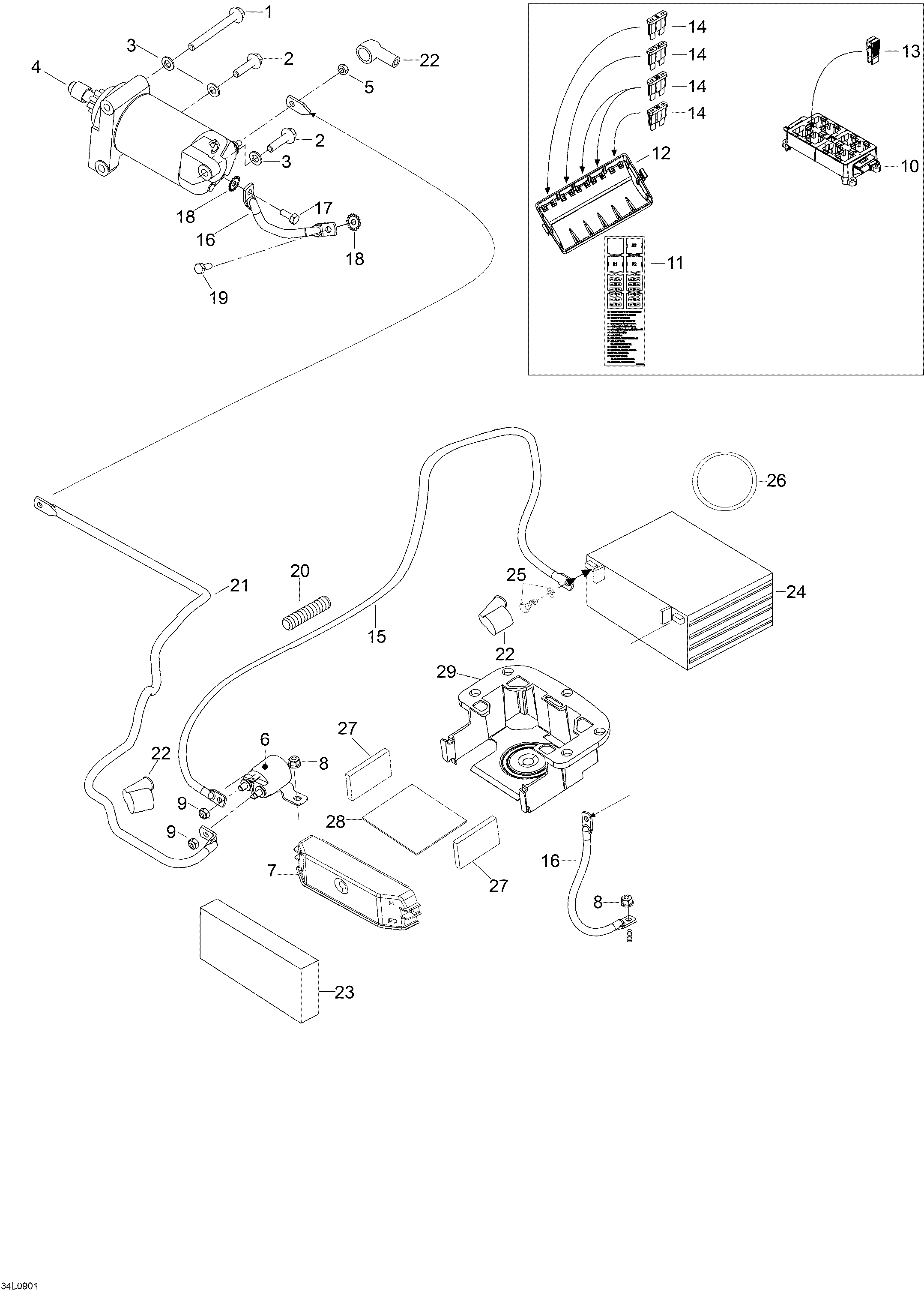

08- Electric Starter _34L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1207587544 ScrewScrew
-
2207583044 Hex.screwHex.screw
-
3250200008 WasherWasher
-
4515176003 Electric startElectric start
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6515176011 SolenoidSolenoid
-
7605255586 CoverCover
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10515176065 Fuse housingFuse housing
-
11605453790 DecalDecal
-
12515176066 CoverCover
-
13515175811 ToolTool
-
14278000344 Fuse 5 AFuse 5 A
-
14278000704 Fuse 7.5 AFuse 7.5 A
-
14409003900 Fuse 20 AFuse 20 A
-
14410917200 Fuse 30 AFuse 30 A
-
1442044 Fuse 1 AFuse 1 A
-
155348359 Battery wireBattery wire
-
16605355795 Ground wireGround wire
-
17207361644 Screw hex.Screw hex.
-
1820017 Serrated lock washer 6mmSerrated lock washer 6mm
-
1940327 Hex. screw M6 x 12Hex. screw M6 x 12
-
2028015 TubingTubing
-
215348358 Battery cable, starter->solenoidBattery cable, starter->solenoid
-
22570151000 CoverCover
-
23605352572 CoverCover
-
24410301203 Battery. Includes 24 to 25Battery. Includes 24 to 25
-
25295500849 Battery fastener kitBattery fastener kit
-
26605676001 O-ringO-ring
-
27605355847 Cellular plasticCellular plastic
-
28605355846 FoamFoam
-
29605255588 Battery HolderBattery Holder
