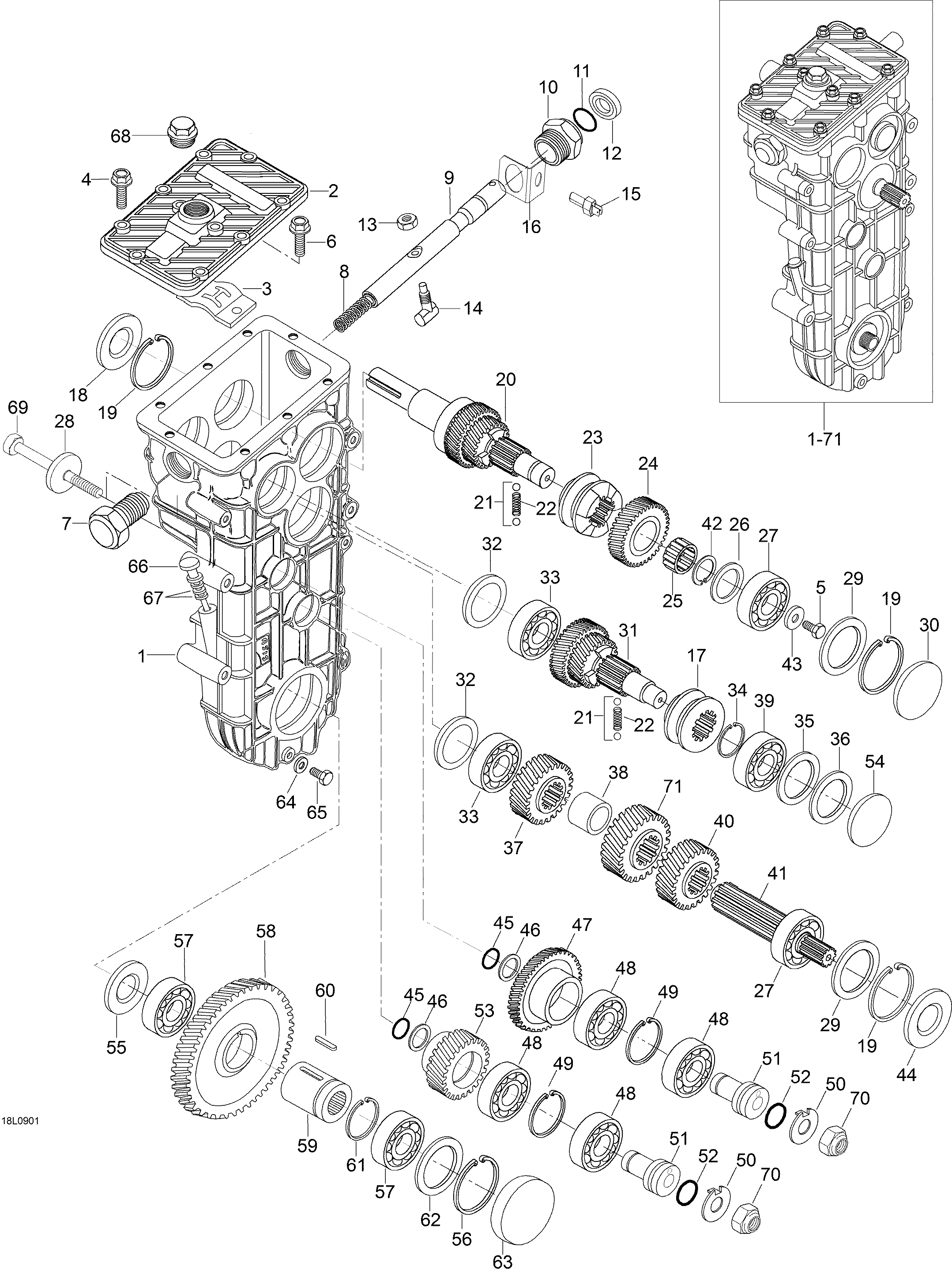

05- Transmission _18L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
-605612002 Gear transmission. Includes 1 to 70Gear transmission. Includes 1 to 70
-
1875156138 HousingHousing
-
2875156043 CoverCover
-
3875156111 H-schemeH-scheme
-
4537001402 Hex. screw M8 x 25Hex. screw M8 x 25
-
5528801382 Hex. screwHex. screw
-
6534801362 Hex. screw M8 x 16Hex. screw M8 x 16
-
7875156076 SleeveSleeve
-
8875156078 SpringSpring
-
9875156072 ShaftShaft
-
10875156077 SleeveSleeve
-
11614601523 O-ringO-ring
-
12614102031 Oil sealOil seal
-
13510611002 Nut M10Nut M10
-
14875156073 PinPin
-
15654100225 SenderSender
-
16617391218 Shim plateShim plate
-
17875156131 Wheel clutchWheel clutch
-
18614103562 Oil sealOil seal
-
19617330062 CirclipCirclip
-
20875156063 Counter shaftCounter shaft
-
21616810064 BallBall
-
22875156105 SpringSpring
-
23875156005 Clutch wheelClutch wheel
-
24875156135 Sprocket (29 Tooth)Sprocket (29 Tooth)
-
25611002529 Needle bearingNeedle bearing
-
26616092542 WasherWasher
-
27610063050 Bearing 6305Bearing 6305
-
28619230002 WasherWasher
-
29617395065 Adjustment shim 0.3mmAdjustment shim 0.3mm
-
29617395067 Adjustment shim 0.5mmAdjustment shim 0.5mm
-
30614100062 PlugPlug
-
31875156068 Reverse shaftReverse shaft
-
32875152953 PlugPlug
-
33610063044 Bearing 6304Bearing 6304
-
34617450028 CirclipCirclip
-
35617394252 Adjustment shim 0.3mmAdjustment shim 0.3mm
-
35617394352 Adjustment shim 0.5mmAdjustment shim 0.5mm
-
36617330052 CirclipCirclip
-
37875156054 Sprocket (34 Tooth)Sprocket (34 Tooth)
-
38875156088 SleeveSleeve
-
39610063040 Bearing 6304Bearing 6304
-
40875156136 Gear Z=27Gear Z=27
-
41875156069 ShaftShaft
-
42617450025 CirclipCirclip
-
43875156112 WasherWasher
-
44614102562 Oil sealOil seal
-
45614601224 O-ringO-ring
-
46875156328 RingRing
-
47875156206 Sprocket (28 Tooth)Sprocket (28 Tooth)
-
48612030303 BearingBearing
-
49617330047 CirclipCirclip
-
50875156327 WasherWasher
-
51619230001 ShaftShaft
-
52614602431 O-ringO-ring
-
53875156156 Sprocket (31 Tooth)Sprocket (31 Tooth)
-
54614100052 PlugPlug
-
55614102852 Oil sealOil seal
-
56617330068 CirclipCirclip
-
57610060080 BearingBearing
-
58875156114 Sprocket (53 Tooth)Sprocket (53 Tooth)
-
59875156218 ShaftShaft
-
60603345080 KeyKey
-
61617300040 CirclipCirclip
-
62617395568 Adjustment shimAdjustment shim
-
63614100068 PlugPlug
-
64615580812 Seal ringSeal ring
-
65528801342 PlugPlug
-
66875156278 DipstickDipstick
-
67614600725 O-ringO-ring
-
68875156098 PlugPlug
-
69529801502 ScrewScrew
-
70510600802 Nut M10Nut M10
-
71875156151 Sprocket (29 Tooth)Sprocket (29 Tooth)
