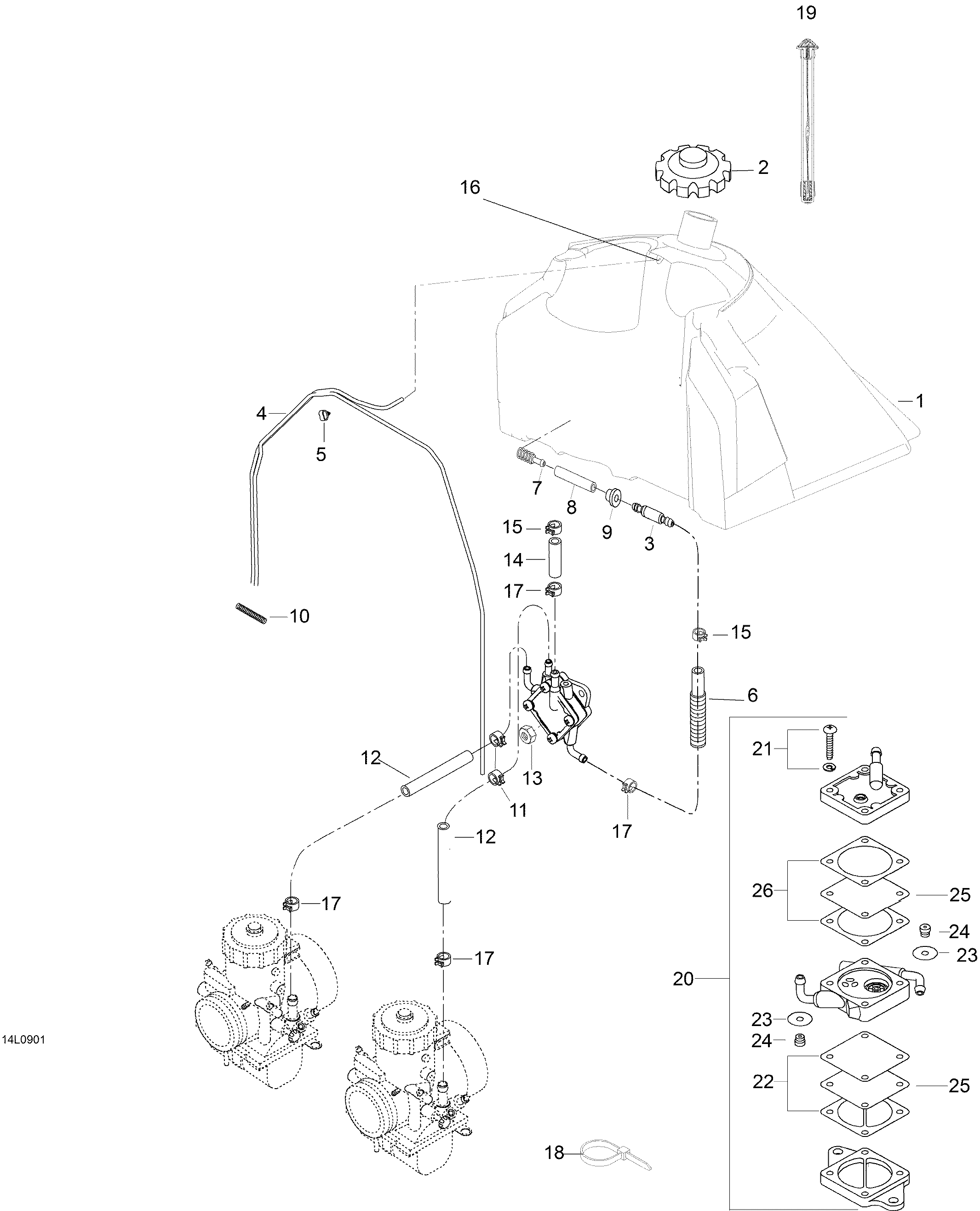

02- Fuel System _14L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1605154804 Fuel tank. Includes 1 to 11Fuel tank. Includes 1 to 11
-
2580259400 CapCap
-
3414872700 Connector maleConnector male
-
439035 HoseHose
-
5513032923 ClampClamp
-
627127 TubingTubing
-
7414872100 FilterFilter
-
839048 HouseHouse
-
9293720058 GrommetGrommet
-
1025003 SpringSpring
-
11414420700 ClampClamp
-
1239001 Fuel hoseFuel hose
-
1333010 Nut. Includes 13 to 19Nut. Includes 13 to 19
-
14605355647 Fuel hoseFuel hose
-
15513032979 ClampClamp
-
16404127600 NippelNippel
-
17605627005 ClampClamp
-
1827026 Tie rapTie rap
-
19605351982 Fuel gaugeFuel gauge
-
2019113 Fuel pump ass'yFuel pump ass'y
-
22404902300 GasketGasket
-
23404902100 GrommetGrommet
-
24275500042 ValveValve
-
25404902200 DiaphragmDiaphragm
-
26404902400 GasketGasket
