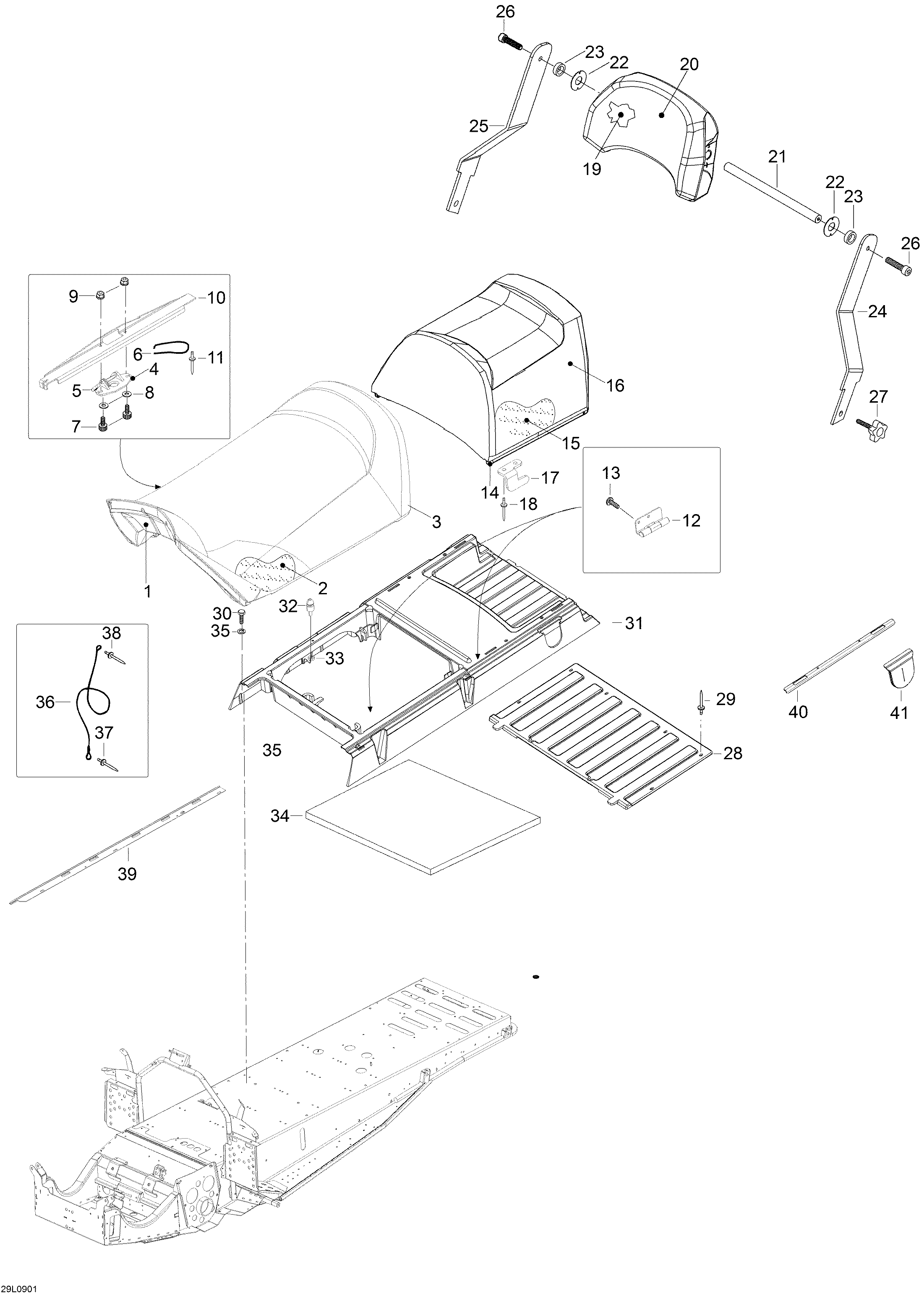

09- Seat _29L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1605251388 Seat base, frontSeat base, front
-
2605255689 Foam, frontFoam, front
-
3605255216 Cover, frontCover, front
-
4269700076 CoverCover
-
5269700077 HandleHandle
-
6269700017 SpringSpring
-
740276 Socket head screw M6 x 25Socket head screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10605352483 Support plateSupport plate
-
1136088 RivetRivet
-
12605351798 HingeHinge
-
1340890 Wronic-screw 4,2 x 16Wronic-screw 4,2 x 16
-
14605251390 Seat base, rearSeat base, rear
-
15605255691 Foam, rearFoam, rear
-
16605255218 Cover, rearCover, rear
-
17605351808 L.H. Locking hookL.H. Locking hook
-
17605352007 R.H. Locking hookR.H. Locking hook
-
1836087 RivetRivet
-
19605255225 FoamFoam
-
20605255226 CoverCover
-
21605355357 Upper backrest axleUpper backrest axle
-
22605355358 WasherWasher
-
23510004378 Rubber shimRubber shim
-
24605355499 L.H. ArmL.H. Arm
-
25605355500 R.H. ArmR.H. Arm
-
26605640010 Allen screw M10x 20Allen screw M10x 20
-
27510003533 Handle M8 x 35Handle M8 x 35
-
28605255587 CoverCover
-
2936036 RivetRivet
-
30605640022 Hex. screw M6 x 16Hex. screw M6 x 16
-
31605155585 Seat baseSeat base
-
32605452035 Lock pinLock pin
-
3333200 Elastic stop nut M6Elastic stop nut M6
-
34605355635 FoamFoam
-
3520052 Lock washerLock washer
-
36546777 Retainer cableRetainer cable
-
3736037 RivetRivet
-
3836009 RivetRivet
-
39605255762 Seat box tieSeat box tie
-
40605355816 Support of the backseatSupport of the backseat
-
41605355589 GrommetGrommet
