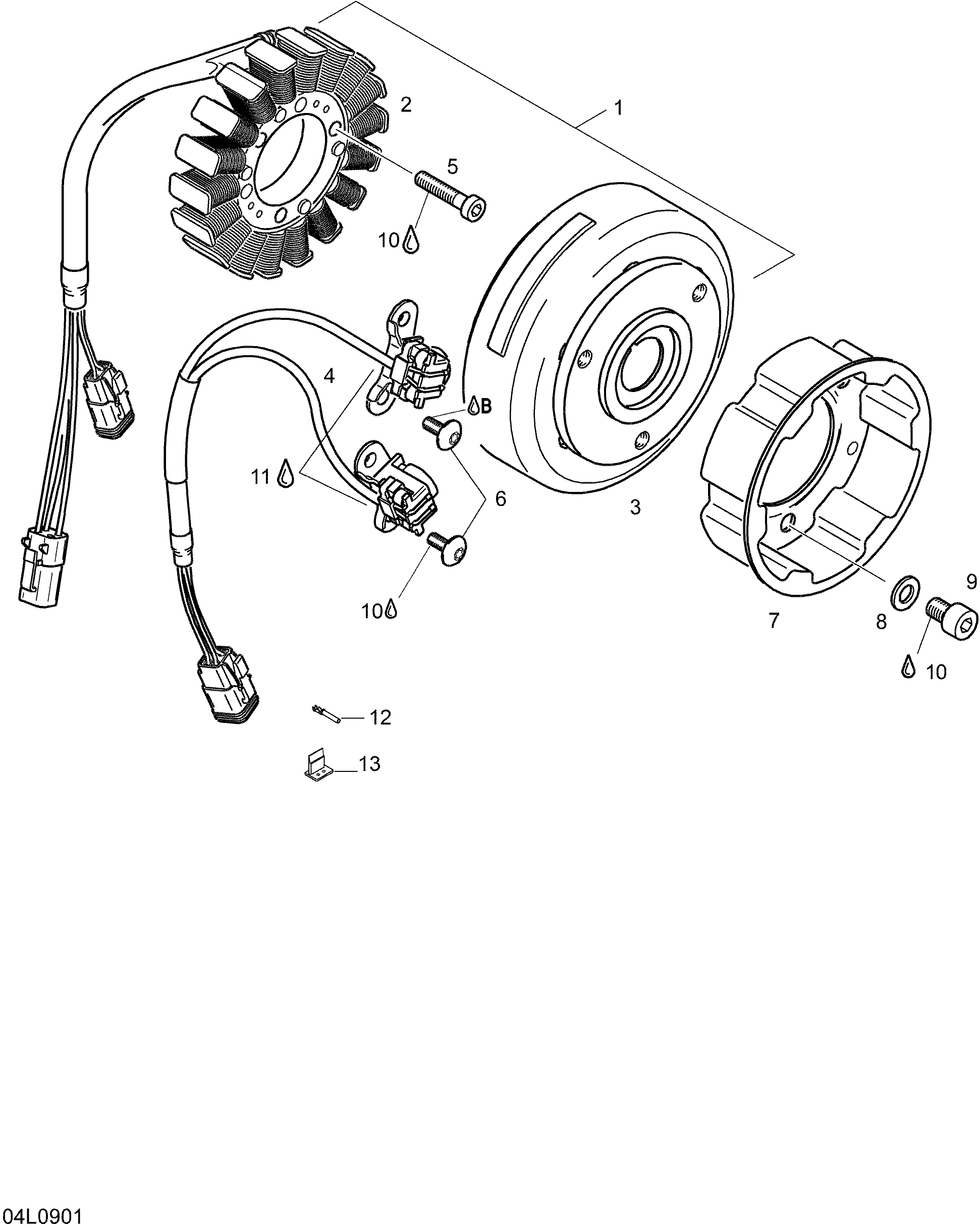

03- Magneto 593 _04L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
2420889905 Stator ass'yStator ass'y
-
3420665722 FlywheelFlywheel
-
4420966803 Pick up kitPick up kit
-
5420840880 Socket head screw M6 x 30Socket head screw M6 x 30
-
6420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
7420852590 Starting pulleyStarting pulley
-
8420827405 Lock washer 8 mmLock washer 8 mm
-
9420841520 Socket head screw M8 x 12Socket head screw M8 x 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12278000632 Female terminalFemale terminal
-
13409207100 Female lock (2 circuits)Female lock (2 circuits)
