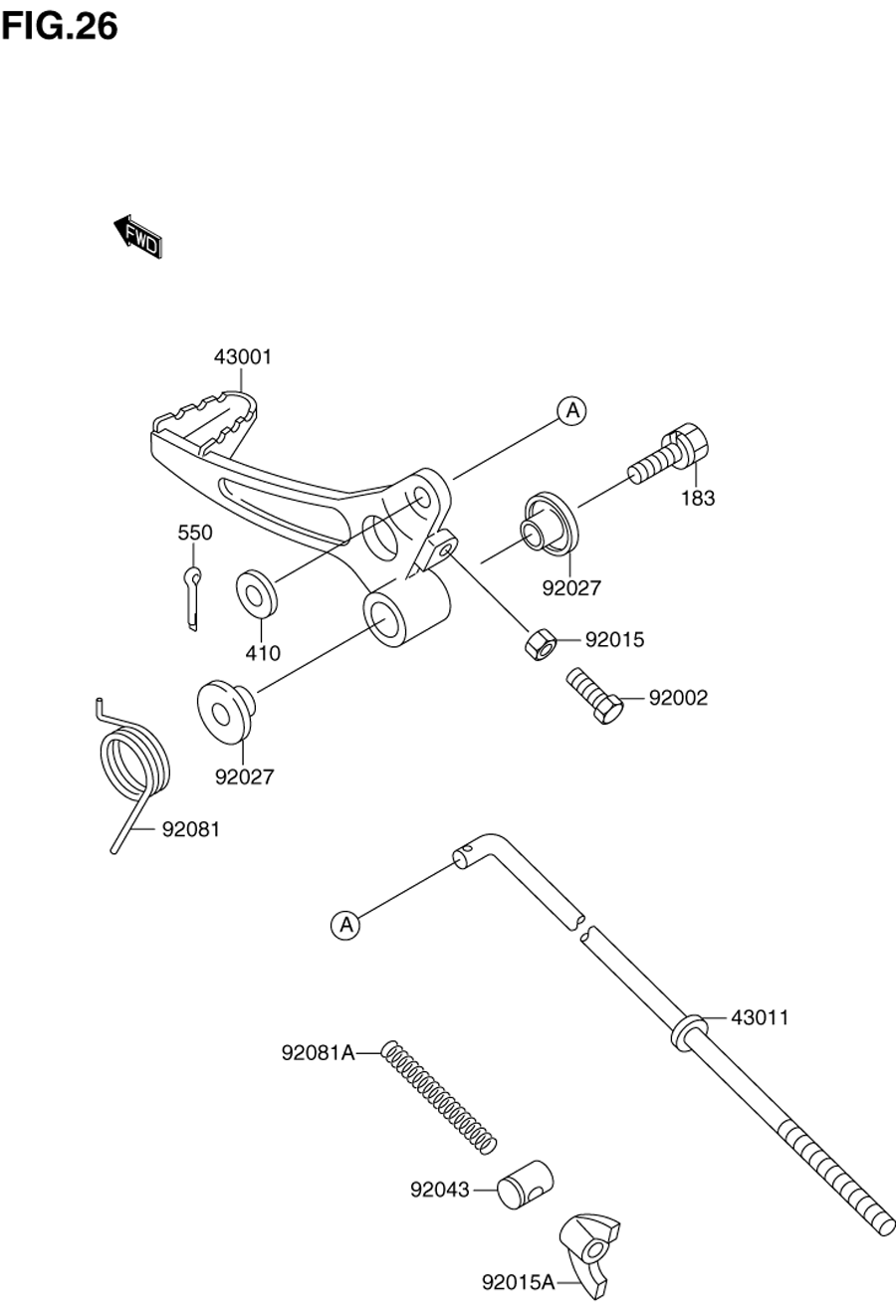

BRAKE PEDAL для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
43001K4300-11243 LEVER-BRAKE,PEDALLEVER-BRAKE,PEDAL
-
43011K4301-11104 ROD-BRAKEROD-BRAKE
-
92002K9200-21373 BOLT,6X20BOLT,6X20
-
92015K9201-51391 NUT,6MMNUT,6MM
-
92015K9201-54004 NUT,WING,6MMNUT,WING,6MM
-
92027K9202-71497 COLLAR,BRAKE PEDALCOLLAR,BRAKE PEDAL
-
92043KK920-43039 PIN,BRAKE RODPIN,BRAKE ROD
-
92081K9208-11494 SPRING,BRAKE PEDALSPRING,BRAKE PEDAL
-
92081K9208-11688 SPRING,BRAKE RODSPRING,BRAKE ROD
-
183KK183-G0840 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
410KK410-B0600 WASHER-PLAIN-SMALL,6MMWASHER-PLAIN-SMALL,6MM
-
550KK550-D2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
