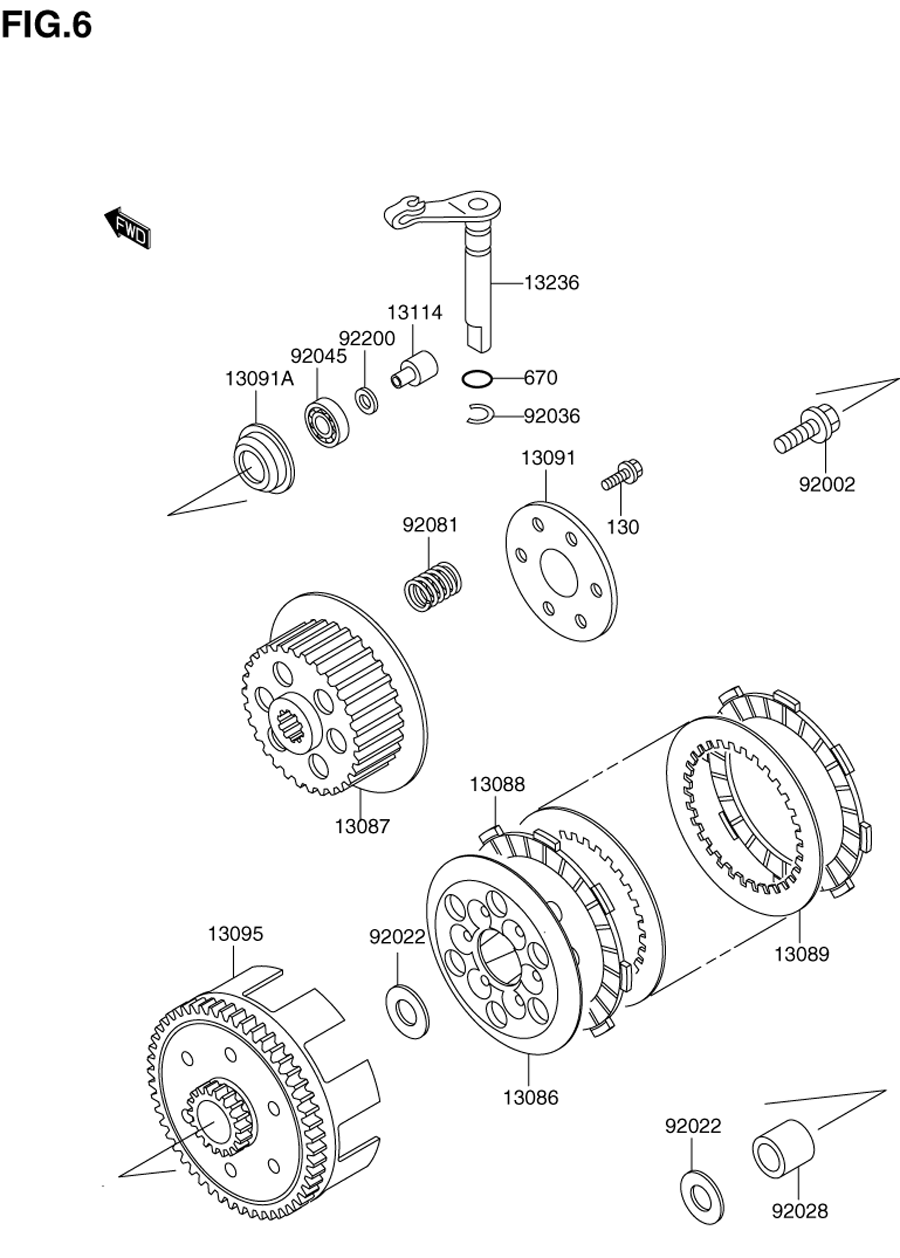

CLUTCH ASSY. для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
13086K1308-61002 WHEEL-CLUTCHWHEEL-CLUTCH
-
13087K1308-71051 HUB-CLUTCHHUB-CLUTCH
-
13088K1308-81010 PLATE-FRICTIONPLATE-FRICTION
-
13089K1308-91009 PLATE-CLUTCH,STEELPLATE-CLUTCH,STEEL
-
13091K1309-11115 HOLDER,CLUTCH SPRINGHOLDER,CLUTCH SPRING
-
13091K1309-11133 HOLDER,CLUTCH PUSHERHOLDER,CLUTCH PUSHER
-
13095K1309-51042 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
13114K1311-41055 PUSHER-CLUTCHPUSHER-CLUTCH
-
13236K1323-61161 LEVER-COMP,CLUTCH RELEASELEVER-COMP,CLUTCH RELEASE
-
92002K9200-21697 BOLT,10X30BOLT,10X30
-
92022KK920-22255 WASHER,17.3X28X1WASHER,17.3X28X1
-
92028K9202-81149 BUSHING,17X22X21.1BUSHING,17X22X21.1
-
92036KK920-36023 RING-SNAP,VALVE GUIDERING-SNAP,VALVE GUIDE
-
92045K9204-51236 BEARING-BALL,627BEARING-BALL,627
-
92081K9208-11143 SPRING,CLUTCHSPRING,CLUTCH
-
92200K9220-01197 WASHER,7X12.5X0.8WASHER,7X12.5X0.8
-
130KK130-P0520 BOLT-FLANGEDBOLT-FLANGED
-
670KK670-B1509 O RING,9MMO RING,9MM
