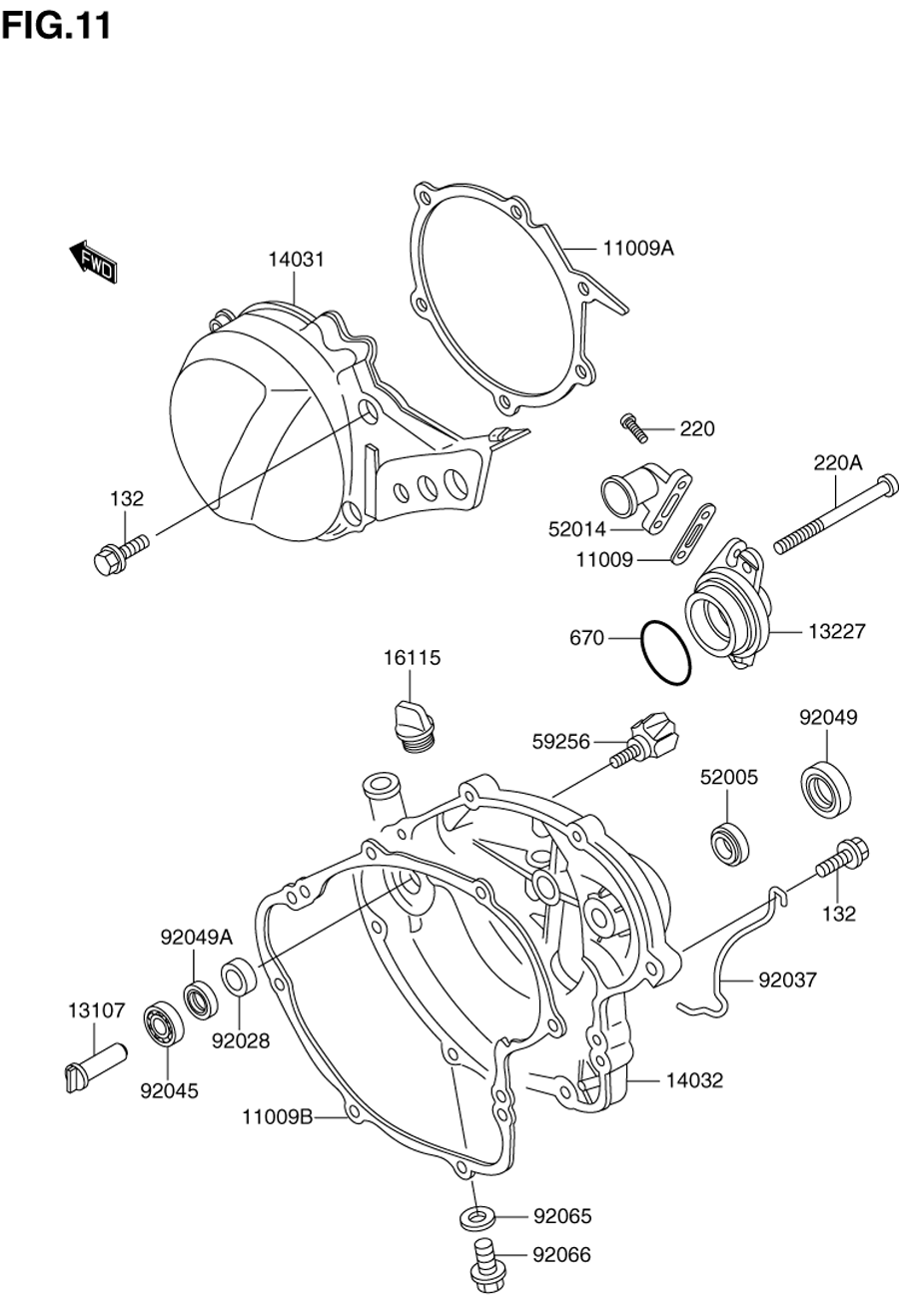

CRANKCASE COVER для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
11009K1100-91952 GASKET,ELBOWGASKET,ELBOW
-
11009K1100-91974 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
11009K1100-91976 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
13107K1310-71123 SHAFT,WATER PUMPSHAFT,WATER PUMP
-
13227K1322-71069 HOUSING,WATER PUMPHOUSING,WATER PUMP
-
14031K1403-11215 COVER-GENERATORCOVER-GENERATOR
-
14032K1403-21246 COVER-CLUTCHCOVER-CLUTCH
-
16115KK161-15018 CAP-OIL FILLERCAP-OIL FILLER
-
52005K5200-51055 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
52014K5201-41067 ELBOWELBOW
-
59256K5925-61052 IMPELLER,WATER PUMPIMPELLER,WATER PUMP
-
92028K9202-81317 BUSHINGBUSHING
-
92037K9203-71236 CLAMP,TUBECLAMP,TUBE
-
92045K9204-51305 BEARING-BALL,608MC3BEARING-BALL,608MC3
-
92049KK920-49002 SEAL-OIL,SB16244SEAL-OIL,SB16244
-
92049K9204-91366 SEAL-OIL,MHSD8X18X10J-1SEAL-OIL,MHSD8X18X10J-1
-
92065KK920-65058 GASKET,10.5X16X1GASKET,10.5X16X1
-
92066K9206-61241 PLUG,DRAINPLUG,DRAIN
-
132KK132-G0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220KK220-B0520 SCREW-PAN-CROSSCREW-PAN-CROS
-
220KK220-B0675 SCREW-PAN-CROS,6X75SCREW-PAN-CROS,6X75
-
670KK670-B3039 O RING,39MMO RING,39MM
