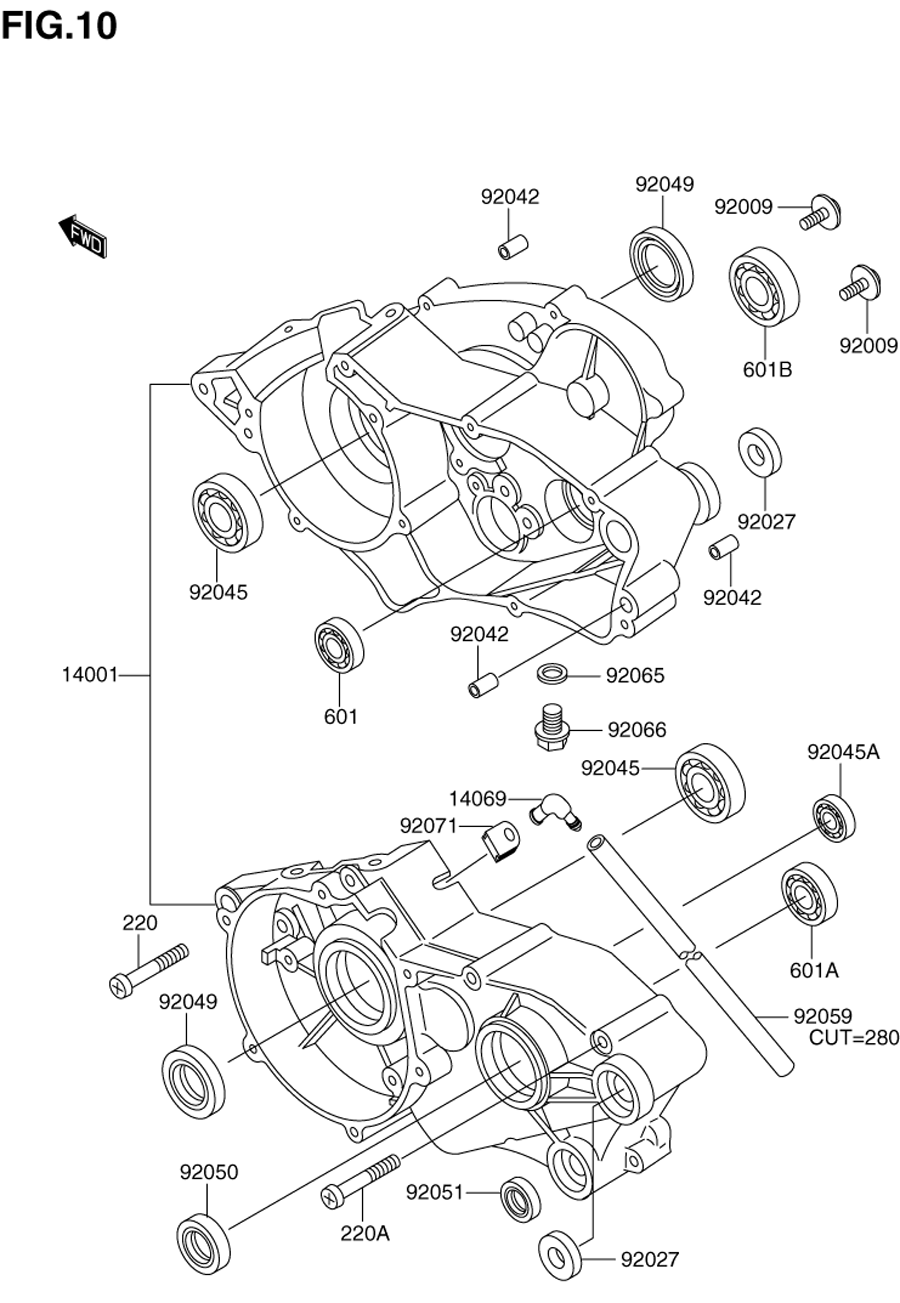

CRANKCASE для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
14001K1400-11317 SET-CRANKCASESET-CRANKCASE
-
14069K1406-91001 BREATHERBREATHER
-
92009K9200-91103 SCREW,6X15SCREW,6X15
-
92027K9202-71744 COLLAR,12.1X26X6COLLAR,12.1X26X6
-
92042KK920-42007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
92045K9204-51059 BEARING-BALL,R-6304C3BEARING-BALL,R-6304C3
-
92045K9204-51235 BEARING-BALL,6001C3ML01BEARING-BALL,6001C3ML01
-
92049K9204-91188 SEAL-OIL,SD20407GSSEAL-OIL,SD20407GS
-
92050KK920-50013 SEAL-OIL,SC25376SEAL-OIL,SC25376
-
92051KK920-51005 SEAL-OIL,TB13225.5SEAL-OIL,TB13225.5
-
92059K9205-91939 TUBE,6X9X1050TUBE,6X9X1050
-
92065KK920-65058 GASKET,10.5X16X1GASKET,10.5X16X1
-
92066K9206-61241 PLUG,DRAINPLUG,DRAIN
-
92071KK920-71042 GROMMET,BREATHERGROMMET,BREATHER
-
220KK220-B0635 SCREW-PAN-CROS,6X35SCREW-PAN-CROS,6X35
-
220KK220-B0660 SCREW-PAN-CROS,6X60SCREW-PAN-CROS,6X60
-
601KK601-A6002 BEARING-BALL,#6002BEARING-BALL,#6002
-
601KK601-A6004 BEARING-BALL,#6004BEARING-BALL,#6004
-
601KK601-A6203 BEARING-BALL,#6203BEARING-BALL,#6203
