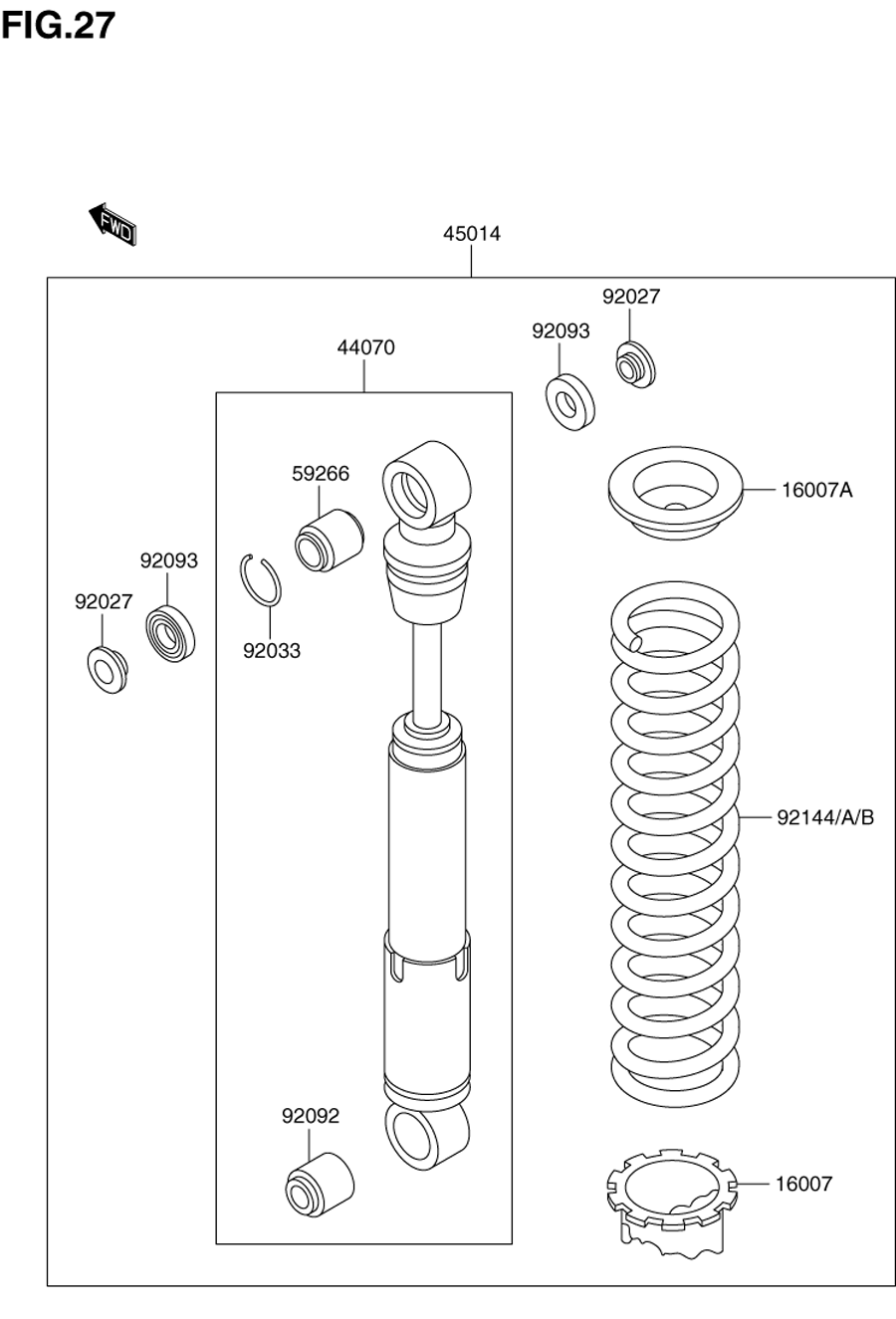

SUSPENSION - REAR SHOCK ABSORBER для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
16007K1600-71055 SEAT-SPRING,SHOCK, (LOWER/REAR)SEAT-SPRING,SHOCK, (LOWER/REAR)
-
16007K1600-71121 SEAT-SPRING,SHOCK (UPPER/REAR)SEAT-SPRING,SHOCK (UPPER/REAR)
-
44070K4407-01980 DAMPER-ASSY,SHOCKABSORBERDAMPER-ASSY,SHOCKABSORBER
-
45014KK450-14181-5VM SHOCKABSORBER,S (RED)SHOCKABSORBER,S (RED)
-
59266K5926-61053 JOINT-BALLJOINT-BALL
-
92027K9202-71862 COLLARCOLLAR
-
92033K9203-31090 RING-SNAPRING-SNAP
-
92092K9209-21016 BUSHING-RUBBER,SHOCKABSORBERBUSHING-RUBBER,SHOCKABSORBER
-
92093K9209-31183 SEALSEAL
-
92144KK921-44194-2VM SPRING,SHOCKABSORBER,K=3.0,RE (OPT)SPRING,SHOCKABSORBER,K=3.0,RE (OPT)
-
92144KK921-44194-3VM SPRING,SHOCKABSORBER,K=3.3,RE (STD)SPRING,SHOCKABSORBER,K=3.3,RE (STD)
-
92144KK921-44194-4VM SPRING,SHOCKABSORBER,K=3.7,RE (OPT)SPRING,SHOCKABSORBER,K=3.7,RE (OPT)
