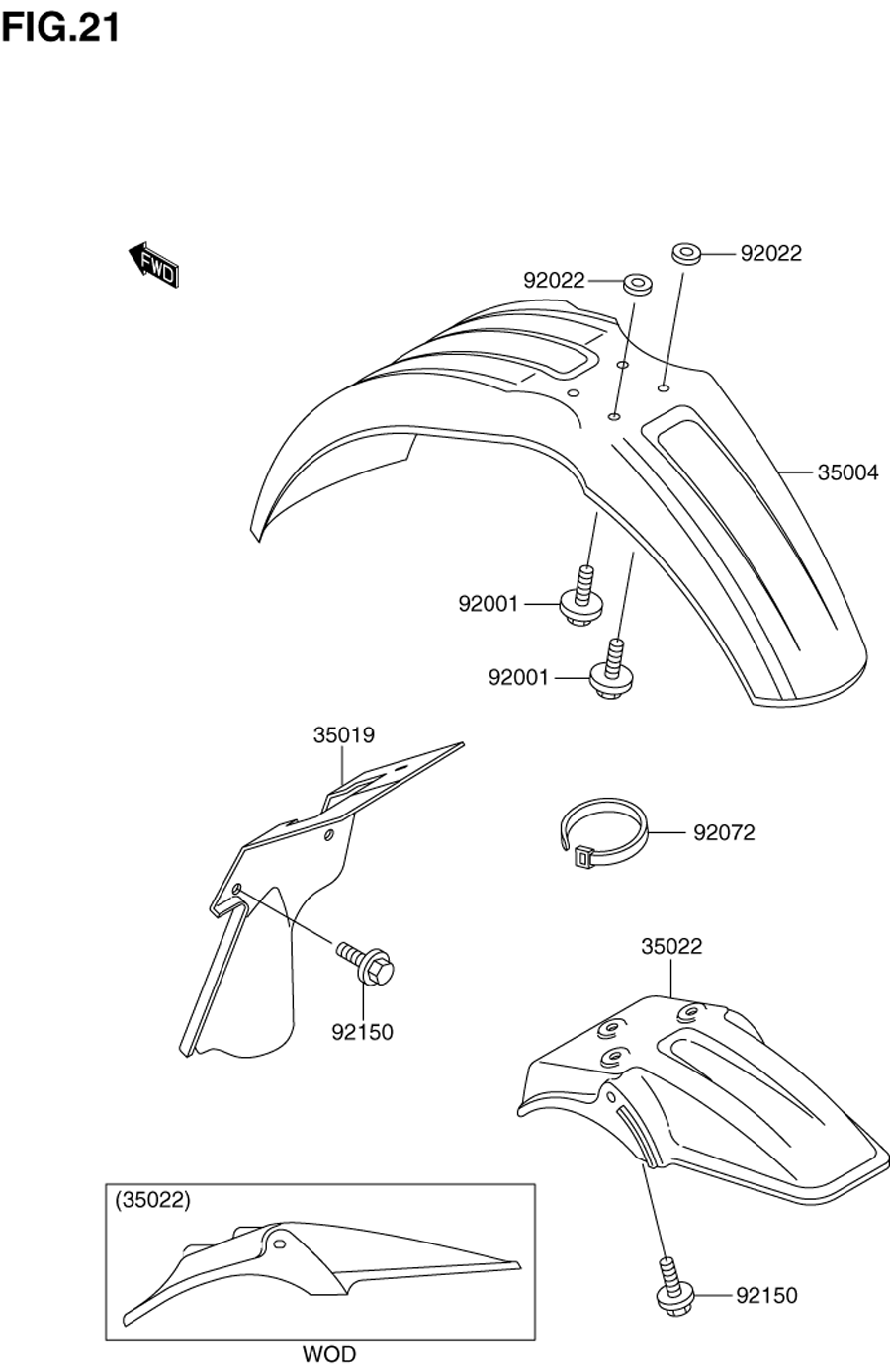

FENDER - FRONT / REAR для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
35004K3500-41230-267 FENDER-C. (FRONT/YELLOW)FENDER-C. (FRONT/YELLOW)
-
35019K3501-91138 FLAP,FENDER (REAR)FLAP,FENDER (REAR)
-
35022K3502-21246-267 FENDER-COMP-C.(YELLOW/REAR)FENDER-COMP-C.(YELLOW/REAR)
-
92001K9200-11926 BOLT,6X14BOLT,6X14
-
92022KK920-22125 WASHER,6.5X20X1.6WASHER,6.5X20X1.6
-
92072KK920-72031 BAND,L=149BAND,L=149
-
92150K9215-01506 BOLT,FLANGED,6X16BOLT,FLANGED,6X16
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT DRUM ASSY.
- BRAKE - REAR DRUM ASSY.
- BRAKE PEDAL
- CARBURETOR
- CLUTCH ASSY.
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- ENGINE MOUNT
- • FENDER - FRONT / REAR
- FOOTREST ASSY.
- FRAME
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK
- GEAR SHIFTING
- GENERATOR
- HANDLEBAR - CABLES
- HANDLEBAR W/ LEVERS - SWITCHES
- IGNITION SYSTEM
- MUFFLER
- NUMBER PLATE
- OWNER'S TOOL
- OWNERS MANUALS W/ WARNING/SAFETY DECALS
- RADIATOR ASSY.
- SEAT ASSY.
- SIDE COVER
- STAND
- STARTER - KICK MECHANISM
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TIRE - FRONT / REAR
- TRANSMISSION
