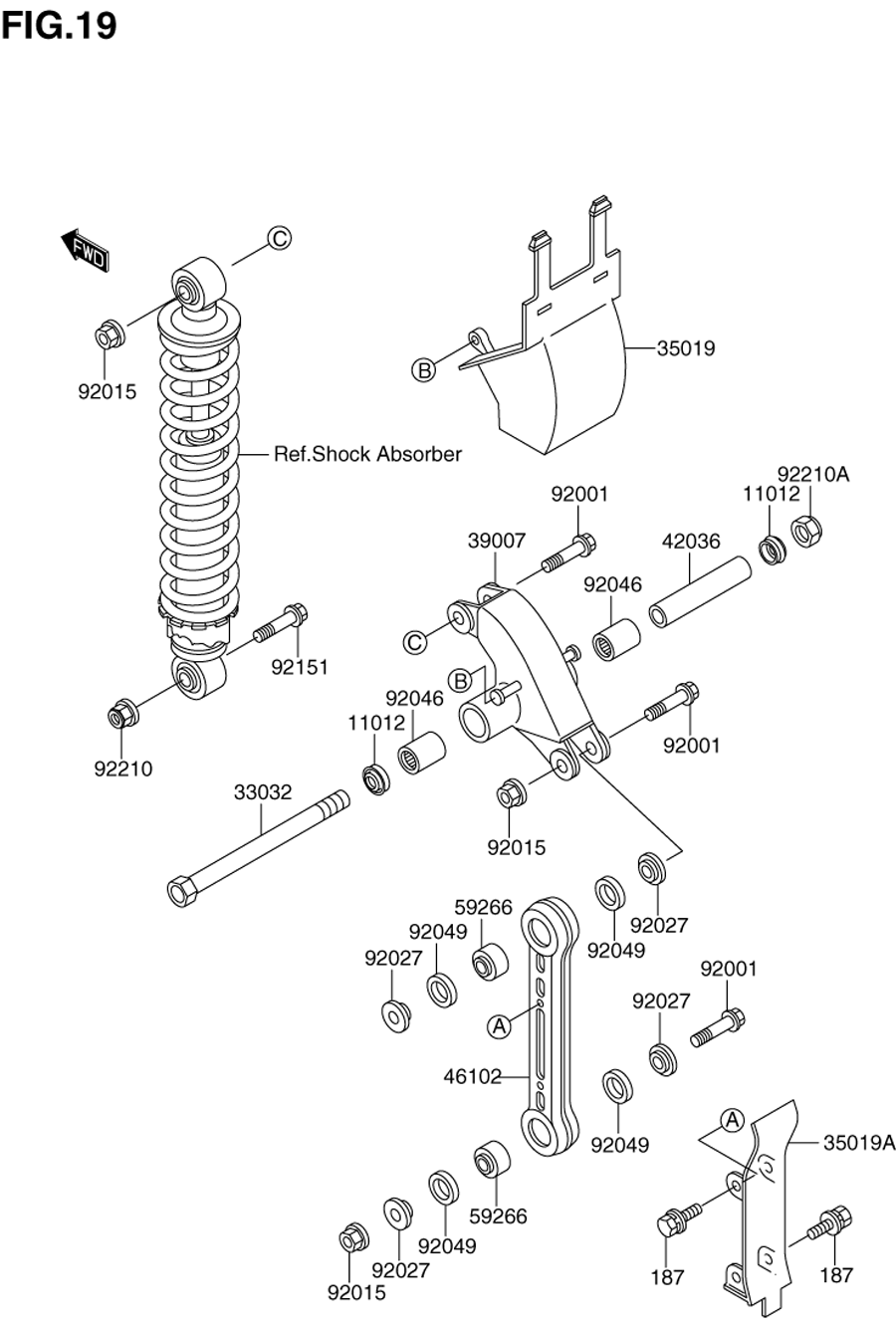

SUSPENSION - CUSHION LEVER для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
11012K1101-21263 CAPCAP
-
33032K3303-21032 SHAFT-SUSPENSION ARM,L=168SHAFT-SUSPENSION ARM,L=168
-
35019K3501-91046 FLAP,SUSPENSION ARMFLAP,SUSPENSION ARM
-
35019K3501-91137 FLAP,SUSPENSION RODFLAP,SUSPENSION ROD
-
39007K3900-71062 ARM-SUSP,UNI-TRAKARM-SUSP,UNI-TRAK
-
42036K4203-61068 SLEEVE,SUSPENSION ARM,L=86SLEEVE,SUSPENSION ARM,L=86
-
46102K4610-21125 ROD,SUSPENSIONROD,SUSPENSION
-
59266K5926-61011 JOINT-BALLJOINT-BALL
-
92001K9200-11711 BOLT,FLANGED,10X42BOLT,FLANGED,10X42
-
92015K9201-51415 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
92027K9202-71496 COLLAR,SUSPENSION RODCOLLAR,SUSPENSION ROD
-
92046K9204-61046 BEARING-NEEDLEBEARING-NEEDLE
-
92049K9204-91098 SEAL-OILSEAL-OIL
-
92151K9215-11831 BOLT,FLANGED,10X41BOLT,FLANGED,10X41
-
92210K9221-01080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210K9221-01249 NUT,LOCK,12MMNUT,LOCK,12MM
-
187KK187-B0614 BOLT-UPSET-WSPBOLT-UPSET-WSP
