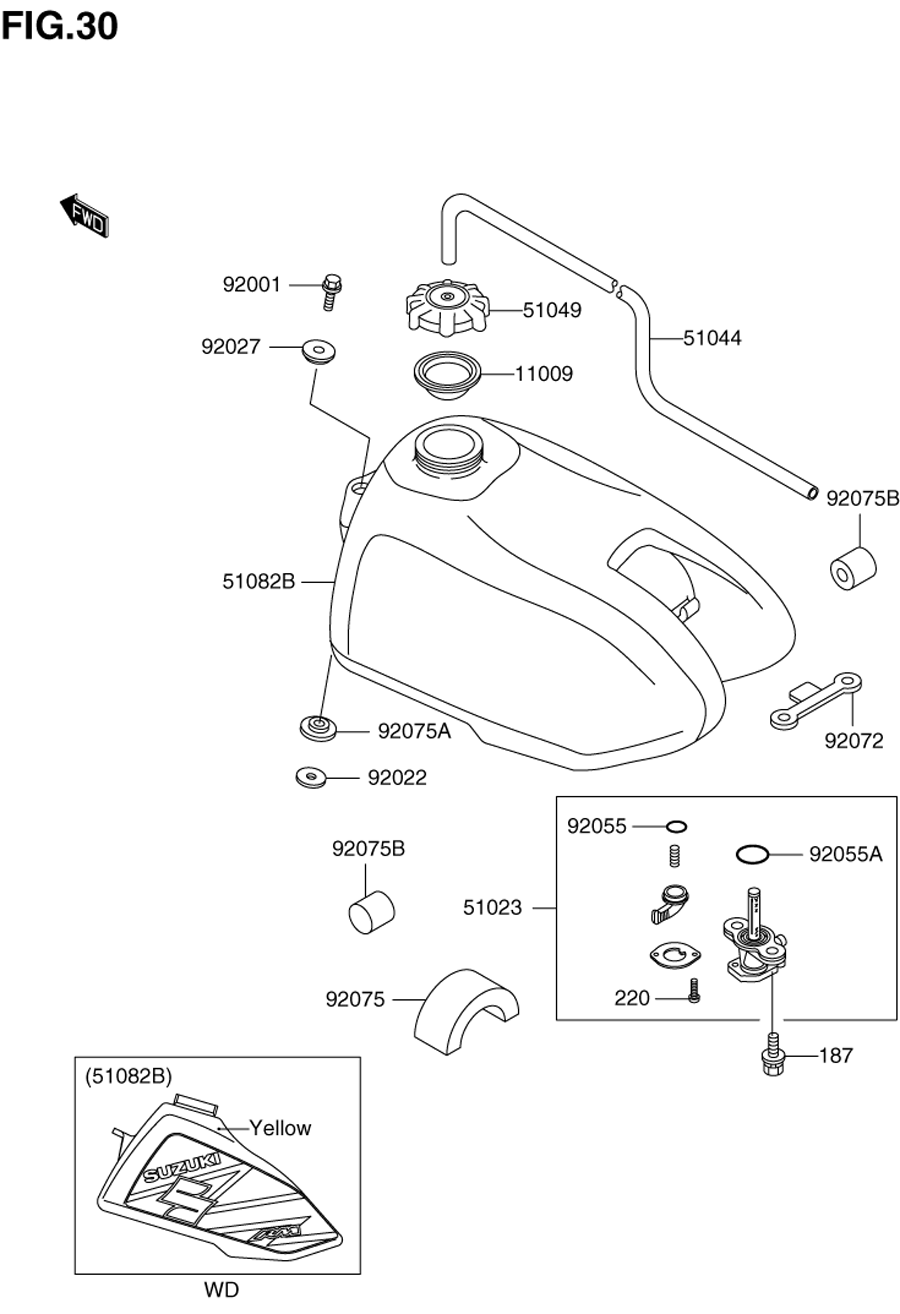

FUEL TANK для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
11009K1100-91452 GASKET,FUEL TANK CAPGASKET,FUEL TANK CAP
-
51023K5102-31115 TAP-ASSY,FUELTAP-ASSY,FUEL
-
51044K5104-41185 TUBE-ASSYTUBE-ASSY
-
51049K5104-91006 CAP-TANK,FUELCAP-TANK,FUEL
-
51082K5108-25388-267 TANK-COMP-FUEL,C. (YELLOW)TANK-COMP-FUEL,C. (YELLOW)
-
92001K9200-11516 BOLT,W/WASHER,6X12BOLT,W/WASHER,6X12
-
92022KK920-22176 WASHER,10X22X3.2WASHER,10X22X3.2
-
92027KK920-27122 COLLAR,L=4.7COLLAR,L=4.7
-
92055K9205-51299 RING-O,FUEL TAP LEVERRING-O,FUEL TAP LEVER
-
92055K9205-51300 RING-O,FUEL TAP PACKINGRING-O,FUEL TAP PACKING
-
92072K9207-21056 BAND,FUEL TANKBAND,FUEL TANK
-
92075K9207-51382 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
92075K9207-51404 DAMPER,FUEL TANK, (FRONT)DAMPER,FUEL TANK, (FRONT)
-
92075KK920-75243 DAMPERDAMPER
-
187KK187-B0616 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
220KK220-E0308 SCREW-PAN-CROS,3X8SCREW-PAN-CROS,3X8
