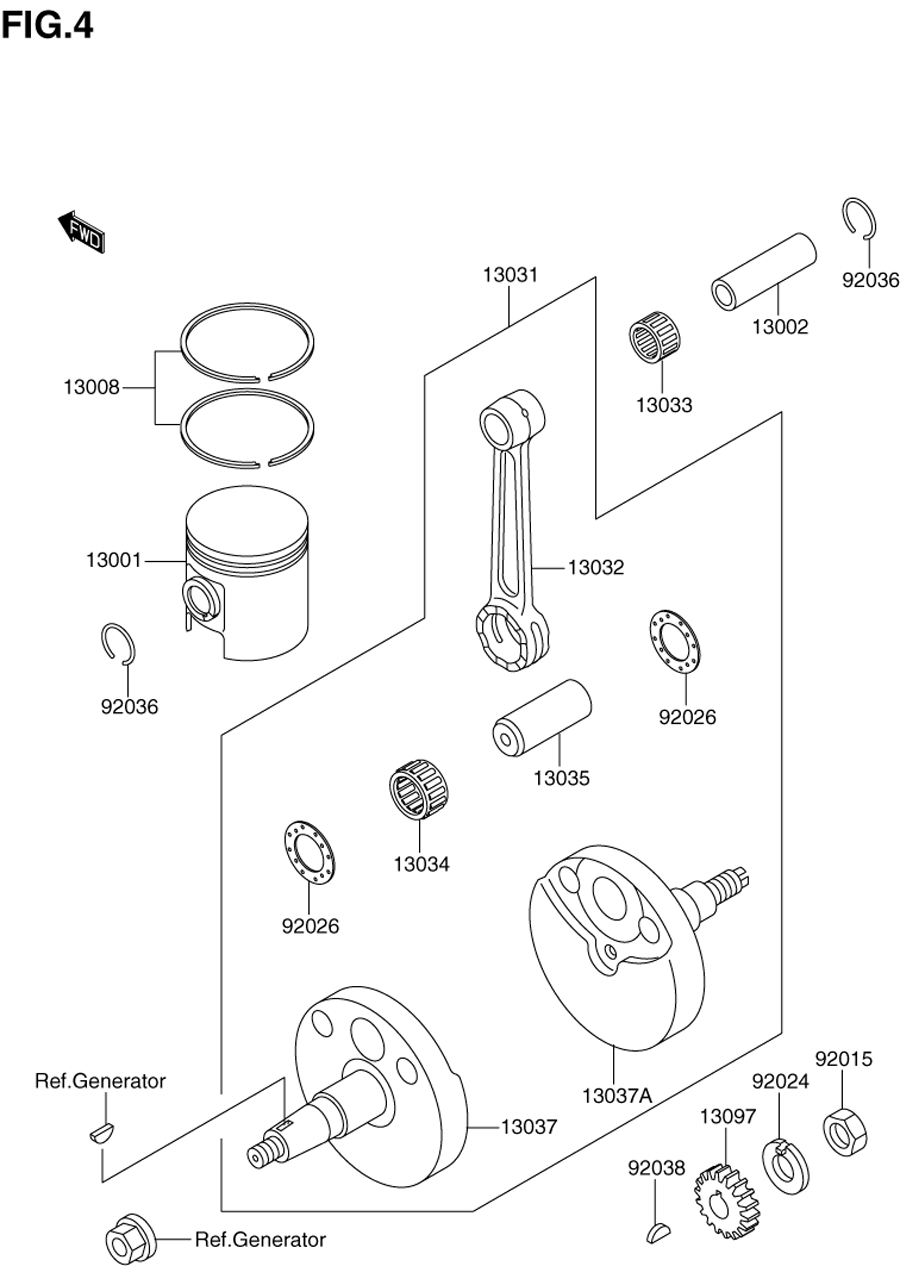

CRANKSHAFT W/ PISTON для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
13001K1300-11536 PISTON-ENGINE,BPISTON-ENGINE,B
-
13002K1300-21119 PIN-PISTONPIN-PISTON
-
13008K1300-85050 RING-SET-PISTONRING-SET-PISTON
-
13031K1303-11448 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
13032K1303-21246 ROD-CONNECTINGROD-CONNECTING
-
13033KK130-33028 BEARING-NEEDLE,72KTV030BEARING-NEEDLE,72KTV030
-
13034K1303-41107 BEARING-BIG END,B4BEARING-BIG END,B4
-
13035K1303-51002 PIN-CRANKPIN-CRANK
-
13037K1303-71204 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037K1303-71220 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
13097K1309-71055 GEAR-PRIMARY SPUR,22TGEAR-PRIMARY SPUR,22T
-
92015KK920-15006 NUT,12MMNUT,12MM
-
92024KK920-24003 WASHER,CLAW,12.5X25X0.8WASHER,CLAW,12.5X25X0.8
-
92026K9202-61522 SPACERSPACER
-
92036KK920-36007 RING-SNAP,PISTON PINRING-SNAP,PISTON PIN
-
92038KK920-38003 KEY,WOODRUFFKEY,WOODRUFF
