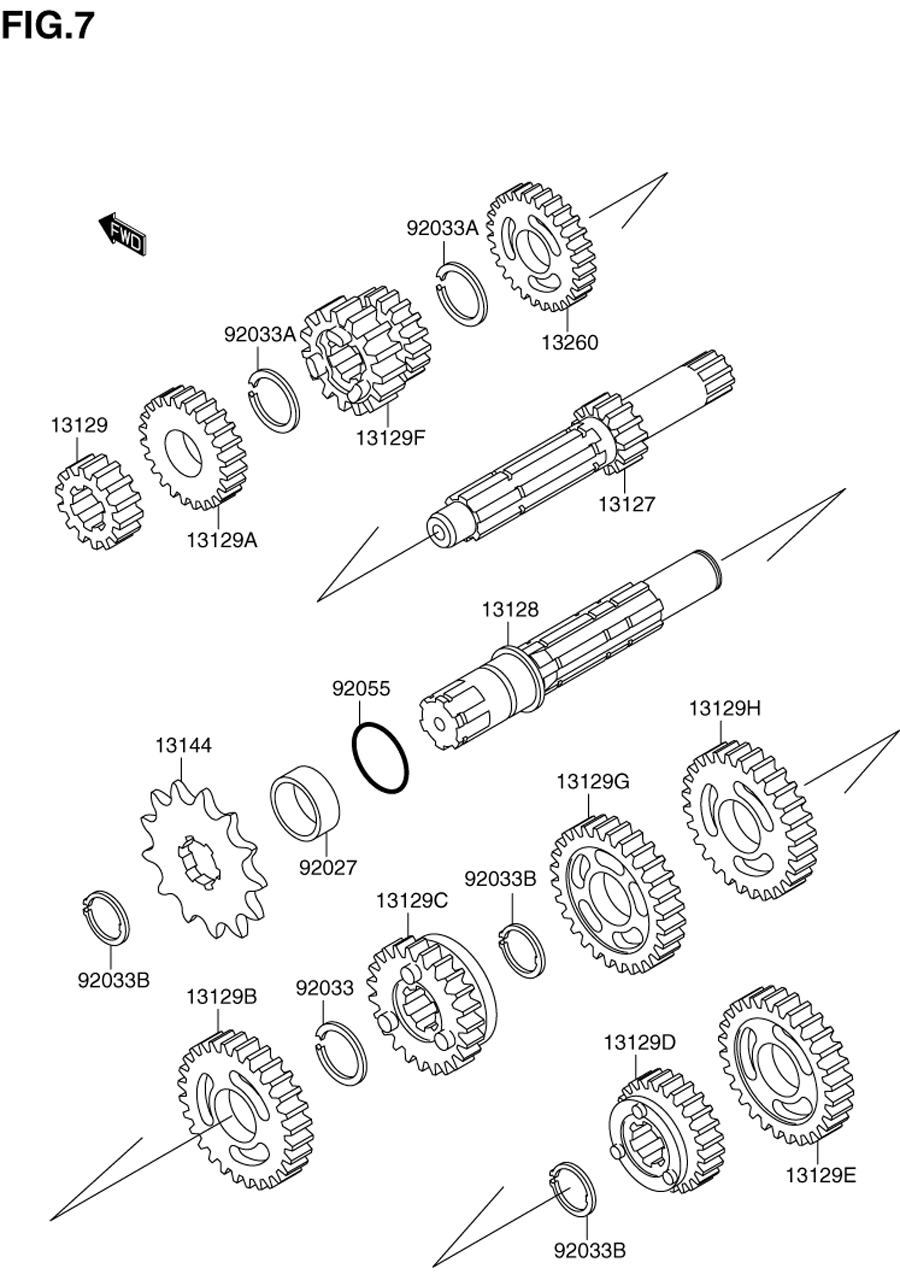

TRANSMISSION для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
13127K1312-71105 SHAFT-TRANSMISSION INPUT,13TSHAFT-TRANSMISSION INPUT,13T
-
13128K1312-81028 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
13129K1312-91215 GEAR,INPUT 2ND,16TGEAR,INPUT 2ND,16T
-
13129K1312-91343 GEAR,INPUT 5TH,23TGEAR,INPUT 5TH,23T
-
13129K1312-91345 GEAR,OUTPUT 2ND,34TGEAR,OUTPUT 2ND,34T
-
13129K1312-91348 GEAR,OUTPUT 5TH,28TGEAR,OUTPUT 5TH,28T
-
13129K1312-91349 GEAR,OUTPUT TOP,26TGEAR,OUTPUT TOP,26T
-
13129K1312-91515 GEAR,OUTPUT LOW,37TGEAR,OUTPUT LOW,37T
-
13129K1312-91611 GEAR,INPUT 3RD & 4TH,21T & 18TGEAR,INPUT 3RD & 4TH,21T & 18T
-
13129K1312-91612 GEAR,OUTPUT 4TH,30TGEAR,OUTPUT 4TH,30T
-
13129K1312-91654 GEAR,OUTPUT 3RD,31TGEAR,OUTPUT 3RD,31T
-
13144K1314-41023 SPROCKET-OUTPUT,13TSPROCKET-OUTPUT,13T
-
13260K1326-01542 GEAR,INPUT TOP,24TGEAR,INPUT TOP,24T
-
92027K9202-71077 COLLAR,20X25X12.5COLLAR,20X25X12.5
-
92033KK920-33029 RING-SNAP,18MMRING-SNAP,18MM
-
92033K9203-31060 RING-SNAP,17MMRING-SNAP,17MM
-
92033K9203-31079 RING-SNAP,18MMRING-SNAP,18MM
-
92055KK920-55022 RING-O,17.5X1.5RING-O,17.5X1.5
