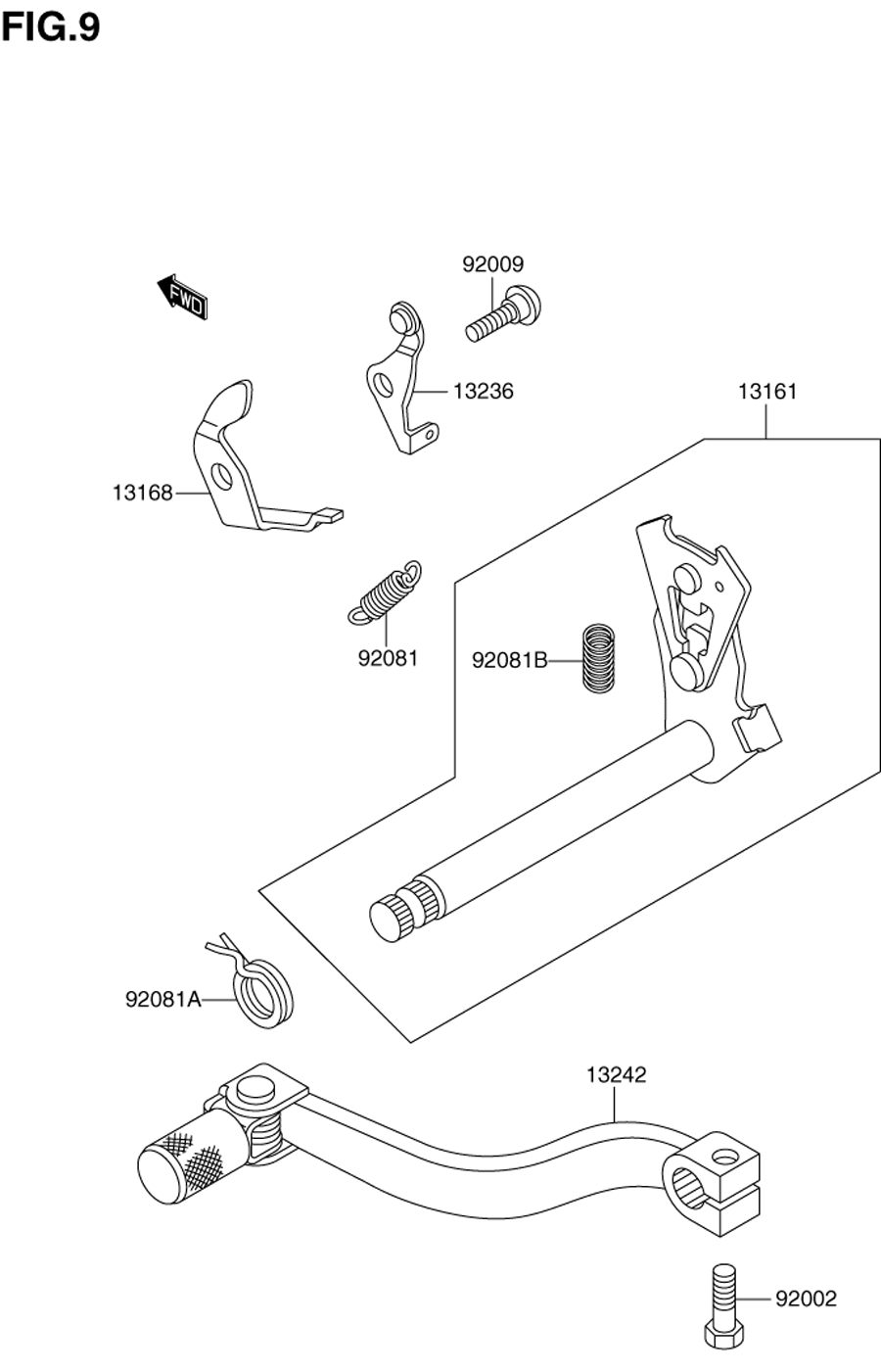

GEAR SHIFTING для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
13161K1316-11281 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
13168K1316-81069 LEVER,GEAR SETLEVER,GEAR SET
-
13236K1323-61026 LEVER-COMP,CHANGE DRUMLEVER-COMP,CHANGE DRUM
-
13242K1324-21210 LEVER-ASSY-CHANGE,PEDALLEVER-ASSY-CHANGE,PEDAL
-
92002K9200-21237 BOLT,6X20BOLT,6X20
-
92009K9200-91102 SCREW,CHANGE LEVERSCREW,CHANGE LEVER
-
92081K9208-11109 SPRING,CHANGE LEVERSPRING,CHANGE LEVER
-
92081K9208-11129 SPRING,TENSIONSPRING,TENSION
-
92081K9208-11275 SPRING,CHANGE LEVERSPRING,CHANGE LEVER
