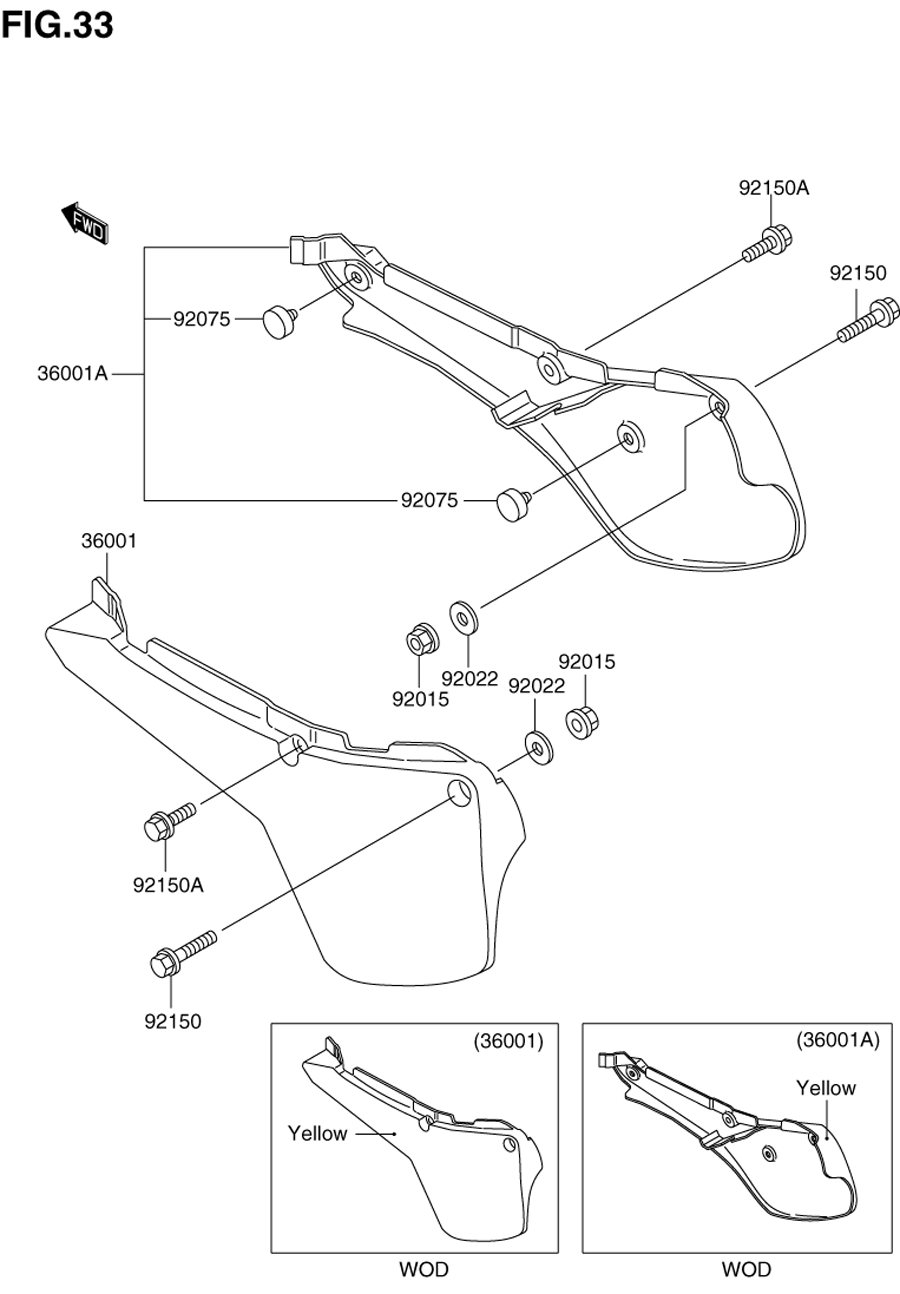

SIDE COVER для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
36001K3600-11398-267 COVER-SIDE,C (LEFT/.YELLOW)COVER-SIDE,C (LEFT/.YELLOW)
-
36001K3600-11399-267 COVER-SIDE,C. (RIGHT/YELLOW)COVER-SIDE,C. (RIGHT/YELLOW)
-
92015K9201-51339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92022KK920-22024 WASHER,7X16X1.2WASHER,7X16X1.2
-
92075K9207-51598 DAMPERDAMPER
-
92150K9215-01486 BOLT,FLANGED,6X30BOLT,FLANGED,6X30
-
92150K9215-01505 BOLT,FLANGED,6X14BOLT,FLANGED,6X14
