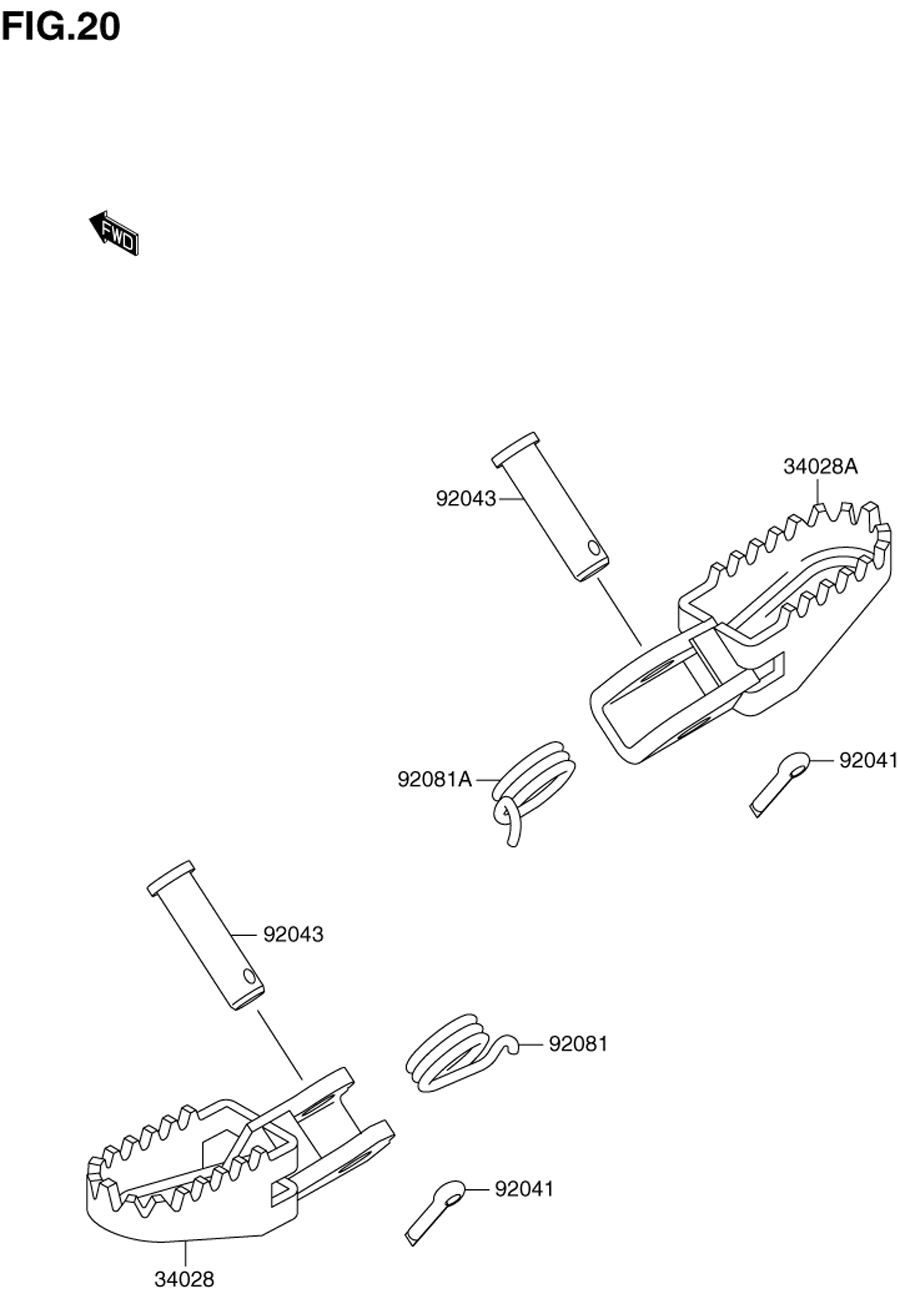

FOOTREST ASSY. для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
34028K3402-81237 STEP (LEFT)STEP (LEFT)
-
34028K3402-81238 STEP (RIGHT)STEP (RIGHT)
-
92041K9204-11051 COTTER,2.5X15COTTER,2.5X15
-
92043K9204-31143 PIN,8X32PIN,8X32
-
92081K9208-11491 SPRING,FOOTREST (LEFT)SPRING,FOOTREST (LEFT)
-
92081K9208-11543 SPRING,FOOTREST (RIGHT)SPRING,FOOTREST (RIGHT)
