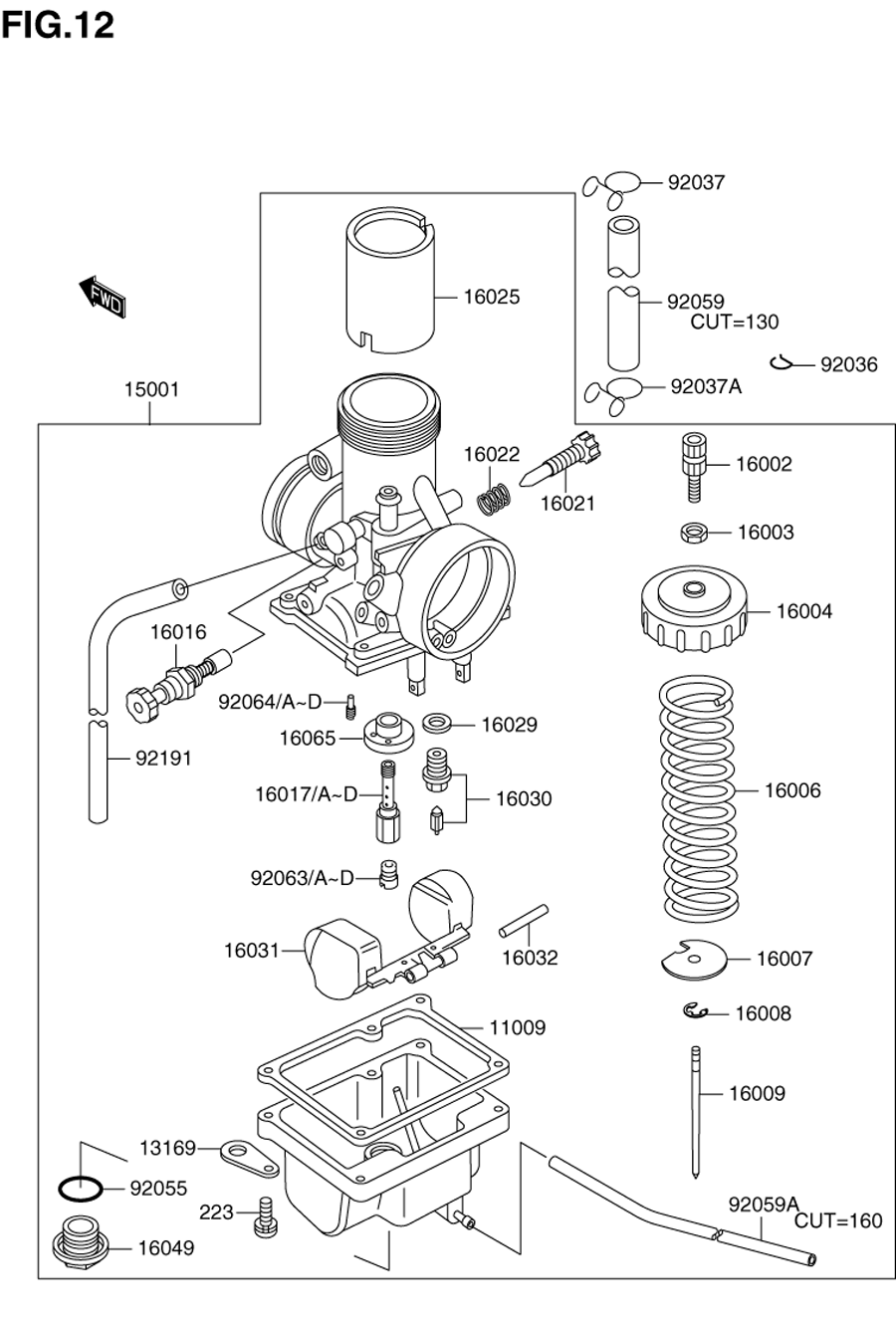

CARBURETOR для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
11009K1100-91147 GASKET,FLOAT CHAMBERGASKET,FLOAT CHAMBER
-
13169K1316-91951 PLATE,TUBEPLATE,TUBE
-
15001K1500-11384 CARBURETOR-ASSYCARBURETOR-ASSY
-
16002KK160-02011 ADJUSTER-CABLEADJUSTER-CABLE
-
16003KK160-03006 NUT,ADJUST LOCKNUT,ADJUST LOCK
-
16004KK160-04025 CAP-CHAMBERCAP-CHAMBER
-
16006KK160-06023 SPRING,THROTTLE VALVESPRING,THROTTLE VALVE
-
16007KK160-07023 SEAT-SPRING,THROTTLE VALVESEAT-SPRING,THROTTLE VALVE
-
16008KK160-08010 CLAMP,E-TYPECLAMP,E-TYPE
-
16009K1600-91220 NEEDLE-JET,5I14NEEDLE-JET,5I14
-
16016K1601-61052 PLUNGER,STARTERPLUNGER,STARTER
-
16017K1601-71215 JET-NEEDLE,N-8JET-NEEDLE,N-8
-
16017K1601-71216 JET-NEEDLE,O-0 (OPT)JET-NEEDLE,O-0 (OPT)
-
16017K1601-71217 JET-NEEDLE,O-2 (OPT)JET-NEEDLE,O-2 (OPT)
-
16017K1601-71259 JET-NEEDLE,N-6 (OPT)JET-NEEDLE,N-6 (OPT)
-
16017K1601-71268 JET-NEEDLE,N-4 (OPT)JET-NEEDLE,N-4 (OPT)
-
16021K1602-11108 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
16022KK160-22005 SPRING,THROTTLE STOP SCREWSPRING,THROTTLE STOP SCREW
-
16025K1602-51107 VALVE-THROTTLE,CA2.0VALVE-THROTTLE,CA2.0
-
16029KK160-29004 GASKET,FLOAT VALVE SEATGASKET,FLOAT VALVE SEAT
-
16030KK160-30005 VALVE-FLOAT,2.5VALVE-FLOAT,2.5
-
16031K1603-11005 FLOATFLOAT
-
16032KK160-32008 PIN,FLOATPIN,FLOAT
-
16049K1604-91001 COVER-MAIN JETCOVER-MAIN JET
-
16065K1606-51020 HOLDER,JET NEEDLEHOLDER,JET NEEDLE
-
92036KK920-36018 RING-SNAPRING-SNAP
-
92037KK920-37147 CLAMP,TUBECLAMP,TUBE
-
92037K9203-71712 CLAMPCLAMP
-
92055K9205-51061 RING-O,MAIN JET COVERRING-O,MAIN JET COVER
-
92059K9205-91596 TUBE,5.3X10.5X350TUBE,5.3X10.5X350
-
92059K9205-91755 TUBE,3X5X300TUBE,3X5X300
-
92063KK920-63020 JET-MAIN,#180 (OPT)JET-MAIN,#180 (OPT)
-
92063KK920-63021 JET-MAIN,#190 (OPT)JET-MAIN,#190 (OPT)
-
92063KK920-63022 JET-MAIN,#200JET-MAIN,#200
-
92063KK920-63023 JET-MAIN,#210 (OPT)JET-MAIN,#210 (OPT)
-
92063KK920-63024 JET-MAIN,#220 (OPT)JET-MAIN,#220 (OPT)
-
92064K9206-41023 JET-PILOT,#35 (OPT)JET-PILOT,#35 (OPT)
-
92064K9206-41030 JET-PILOT,#30JET-PILOT,#30
-
92064K9206-41038 JET-PILOT,#25 (OPT)JET-PILOT,#25 (OPT)
-
92064K9206-41104 JET-PILOT,#40 (OPT)JET-PILOT,#40 (OPT)
-
92064K9206-41110 JET-PILOT,#20 (OPT)JET-PILOT,#20 (OPT)
-
92191K9219-12065 TUBE,3X5X270TUBE,3X5X270
-
223KK223-B0416 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
