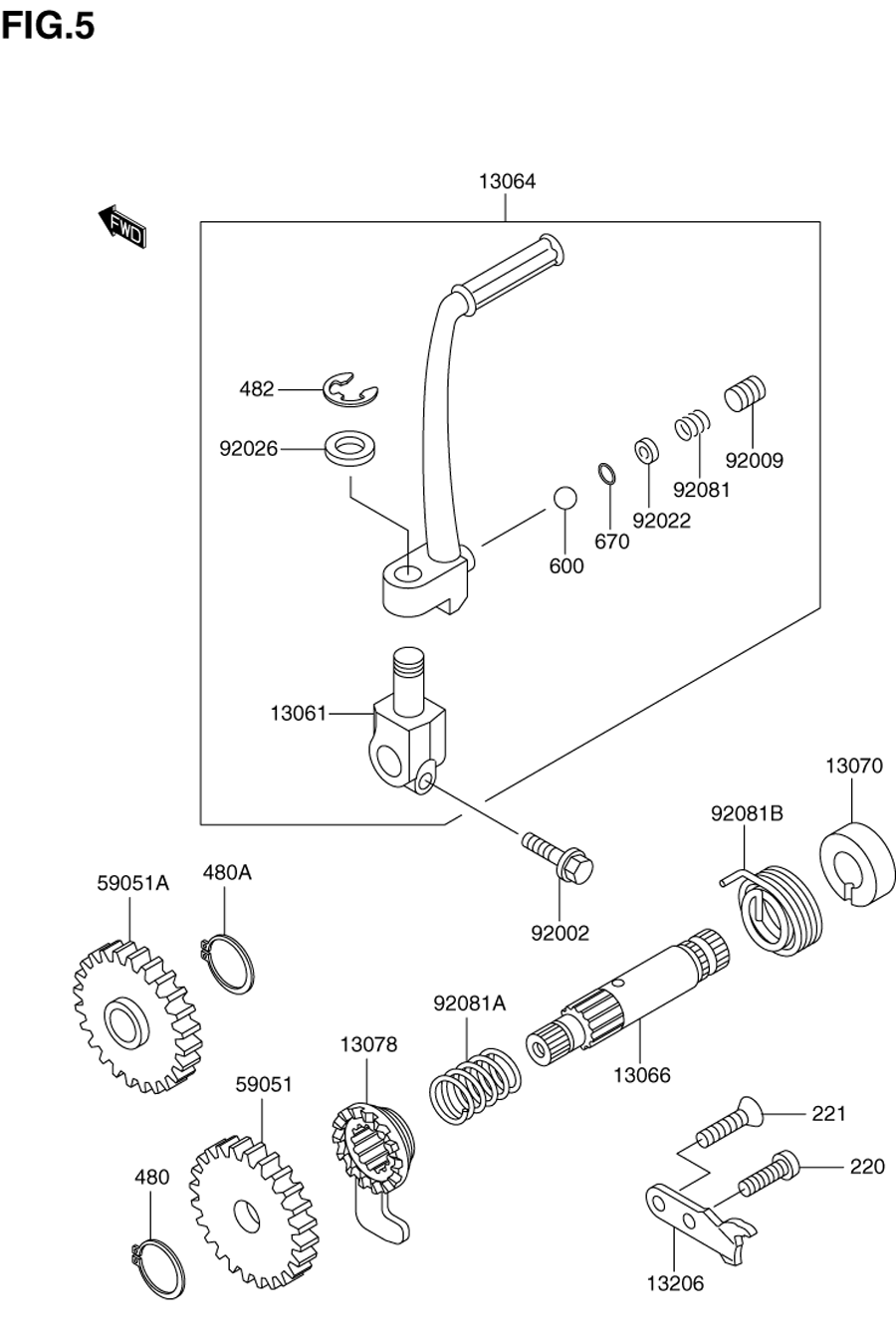

STARTER - KICK MECHANISM для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
13061K1306-11301 BOSS,KICK LEVERBOSS,KICK LEVER
-
13064K1306-41154 LEVER-ASSY-KICK,PEDALLEVER-ASSY-KICK,PEDAL
-
13066K1306-61093 SHAFT-KICK,STARTERSHAFT-KICK,STARTER
-
13070K1307-01034 GUIDE,KICK SPRINGGUIDE,KICK SPRING
-
13078K1307-81004 RATCHETRATCHET
-
13206K1320-61065 GUIDE-KICKGUIDE-KICK
-
59051K5905-11026 GEAR-SPUR,32TGEAR-SPUR,32T
-
59051K5905-11027 GEAR-SPUR,30TGEAR-SPUR,30T
-
92002K9200-21237 BOLT,6X20BOLT,6X20
-
92009K9200-91312 SCREW,SOCKET,8X8SCREW,SOCKET,8X8
-
92022K9202-21481 WASHERWASHER
-
92026K9202-61527 SPACER,12.2X20X1.6SPACER,12.2X20X1.6
-
92081KK920-81020 SPRING,KICK PEDALSPRING,KICK PEDAL
-
92081KK920-81122 SPRING,RATCHETSPRING,RATCHET
-
92081K9208-11434 SPRING,RETURNSPRING,RETURN
-
220KK220-B0616 SCREW-PAN-CROS,6X16SCREW-PAN-CROS,6X16
-
221KK221-B0618 SCREW-CSK-CROS,6X18SCREW-CSK-CROS,6X18
-
480KK480-J1200 CIRCLIP-TYPE-C,12MMCIRCLIP-TYPE-C,12MM
-
480KK480-J1500 CIRCLIP-TYPE-C,15MMCIRCLIP-TYPE-C,15MM
-
482KK482-K8000 CIRCLIP-TYPE-E,8MMCIRCLIP-TYPE-E,8MM
-
600KK600-A0800 BALL-STEEL,1/4"BALL-STEEL,1/4"
-
670KK670-B1504 O RING,4MMO RING,4MM
