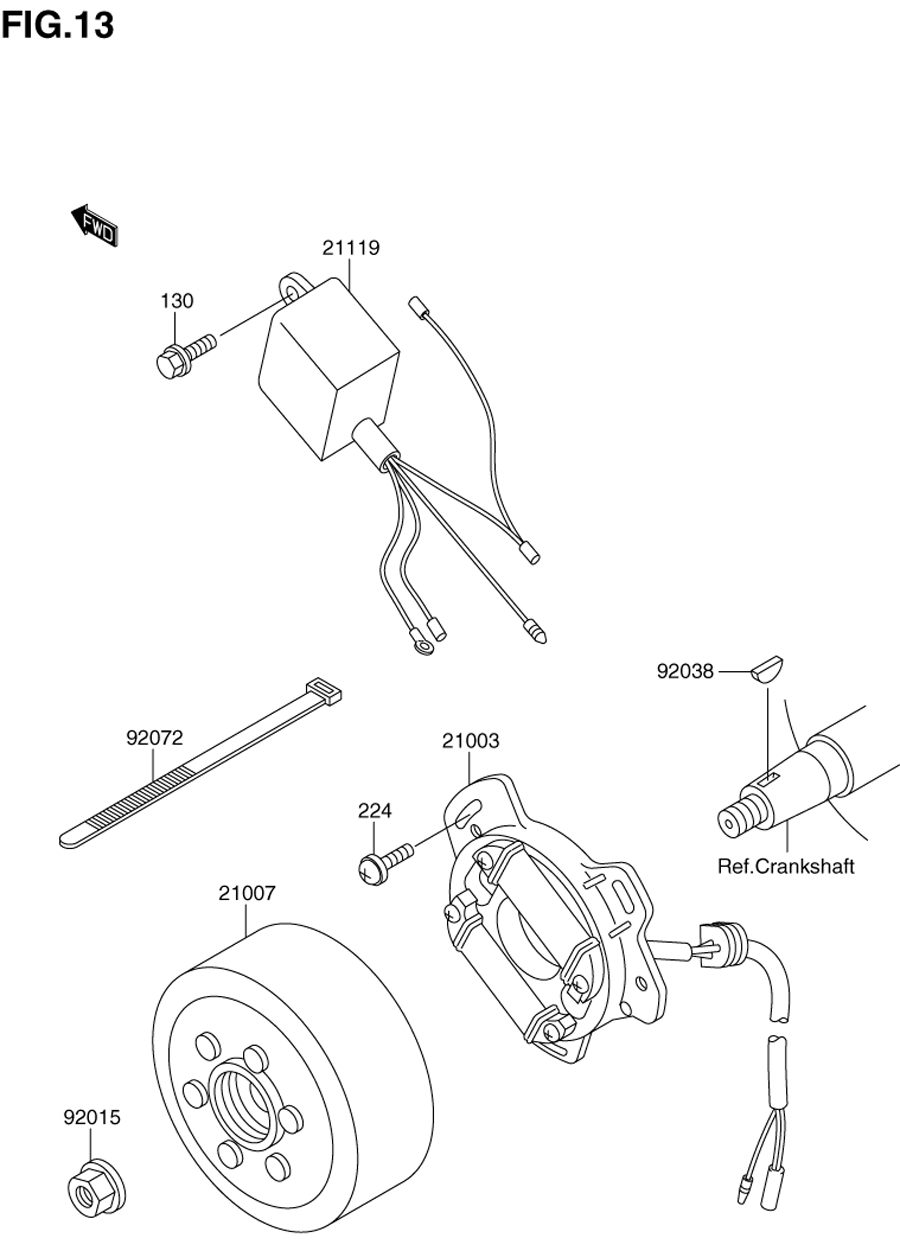

GENERATOR для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
21003K2100-31323 STATORSTATOR
-
21007K2100-71316 ROTORROTOR
-
21119K2111-91485 IGNITERIGNITER
-
92015KK920-15077 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
92038KK920-38001 KEY,WOODRUFFKEY,WOODRUFF
-
92072KK920-72056 BAND,L=186BAND,L=186
-
130KK130-G0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
224KK224-B0514 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
