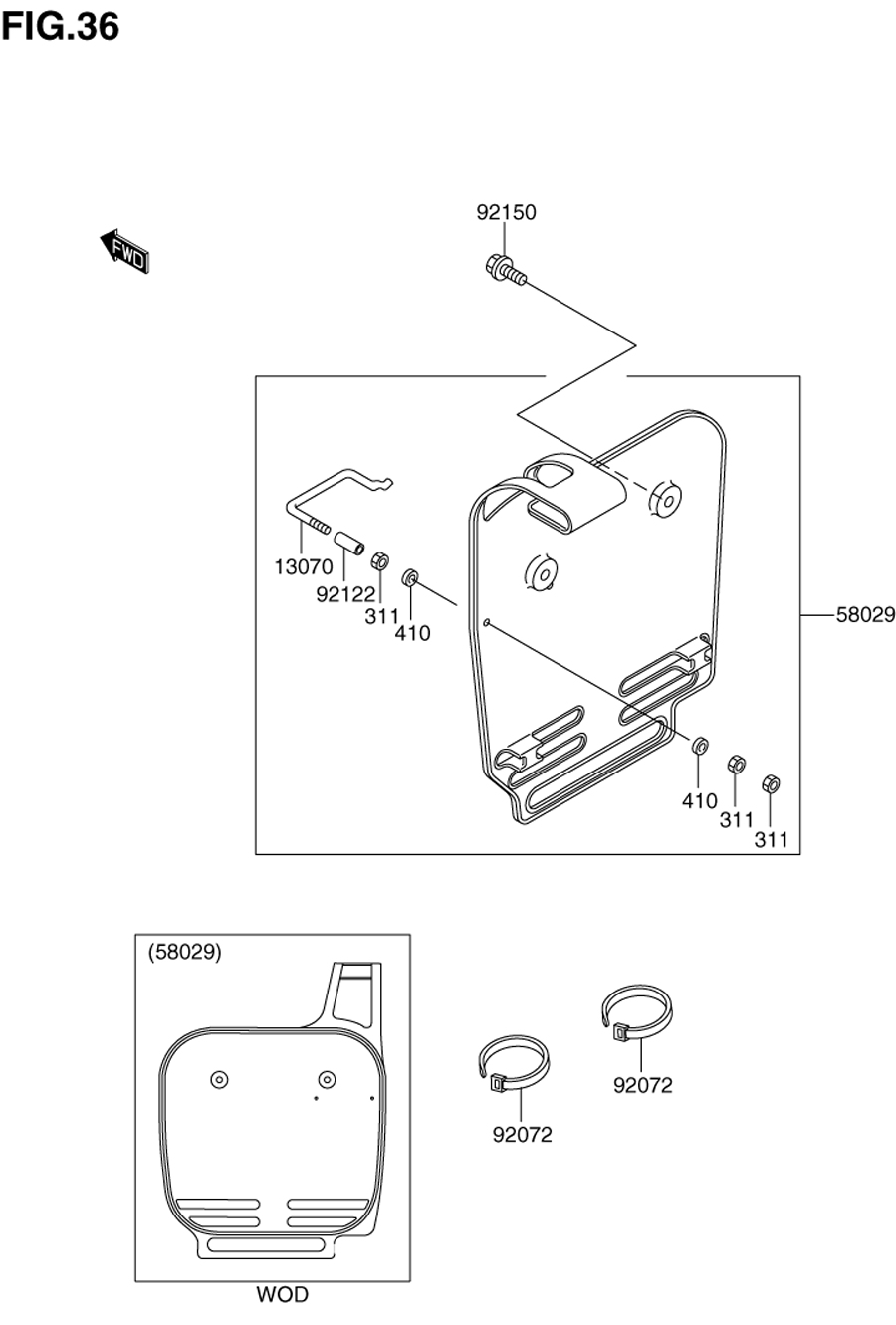

NUMBER PLATE для Suzuki RM60K3 - 2003 года выпуска
-
№АртикулНазвание
-
13070K1307-01031 GUIDE,CABLEGUIDE,CABLE
-
58029K5802-91054-266 (PLATE-NUMBER,S.WHITE)(PLATE-NUMBER,S.WHITE)
-
92072KK920-72031 BAND,L=149BAND,L=149
-
92122K9212-21011 ROLLER,CABLE GUIDEROLLER,CABLE GUIDE
-
92150K9215-01505 BOLT,FLANGED,6X14BOLT,FLANGED,6X14
-
311KK311-B0300 NUT-HEXNUT-HEX
-
410KK410-B0300 WASHER-PLAIN-SMALL,3MMWASHER-PLAIN-SMALL,3MM
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT DRUM ASSY.
- BRAKE - REAR DRUM ASSY.
- BRAKE PEDAL
- CARBURETOR
- CLUTCH ASSY.
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- ENGINE MOUNT
- FENDER - FRONT / REAR
- FOOTREST ASSY.
- FRAME
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK
- GEAR SHIFTING
- GENERATOR
- HANDLEBAR - CABLES
- HANDLEBAR W/ LEVERS - SWITCHES
- IGNITION SYSTEM
- MUFFLER
- • NUMBER PLATE
- OWNER'S TOOL
- OWNERS MANUALS W/ WARNING/SAFETY DECALS
- RADIATOR ASSY.
- SEAT ASSY.
- SIDE COVER
- STAND
- STARTER - KICK MECHANISM
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TIRE - FRONT / REAR
- TRANSMISSION
