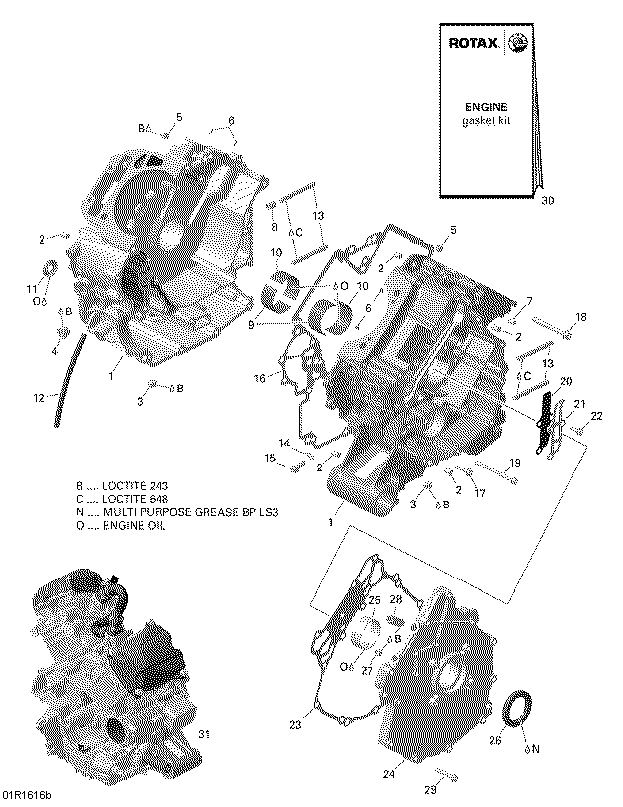

01- Crankcase - 650 EFI (Package PRO) для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1>12420685253 Crankcase Ass'yCrankcase Ass'y
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
4420240170 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
5420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
6420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
7420932780 Needle PinNeedle Pin
-
8420929670 Dowel Pin 10 X 13Dowel Pin 10 X 13
-
9420233960 Plain BearingPlain Bearing
-
10420233965 Plain BearingPlain Bearing
-
11420650310 Oil SealOil Seal
-
12415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
13420240814 StudStud
-
14420950141 Sealing RingSealing Ring
-
15420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
16420651225 GasketGasket
-
17420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
19420440657 Flanged Torx Screw M6 X 75Flanged Torx Screw M6 X 75
-
20420224720 Valve PlateValve Plate
-
21420224725 Reed Valve StopReed Valve Stop
-
22420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
23420651211 GasketGasket
-
24420612128 PTO Cover Ass'yPTO Cover Ass'y
-
25420233995 Bearing SleeveBearing Sleeve
-
26420631933 Oil SealOil Seal
-
27420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
28420256332 Hose NippleHose Nipple
-
29420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
30420684144 Gasket Set, EngineGasket Set, Engine
-
31420066050 Long Block, 650EFI. PRO PackageLong Block, 650EFI. PRO Package
