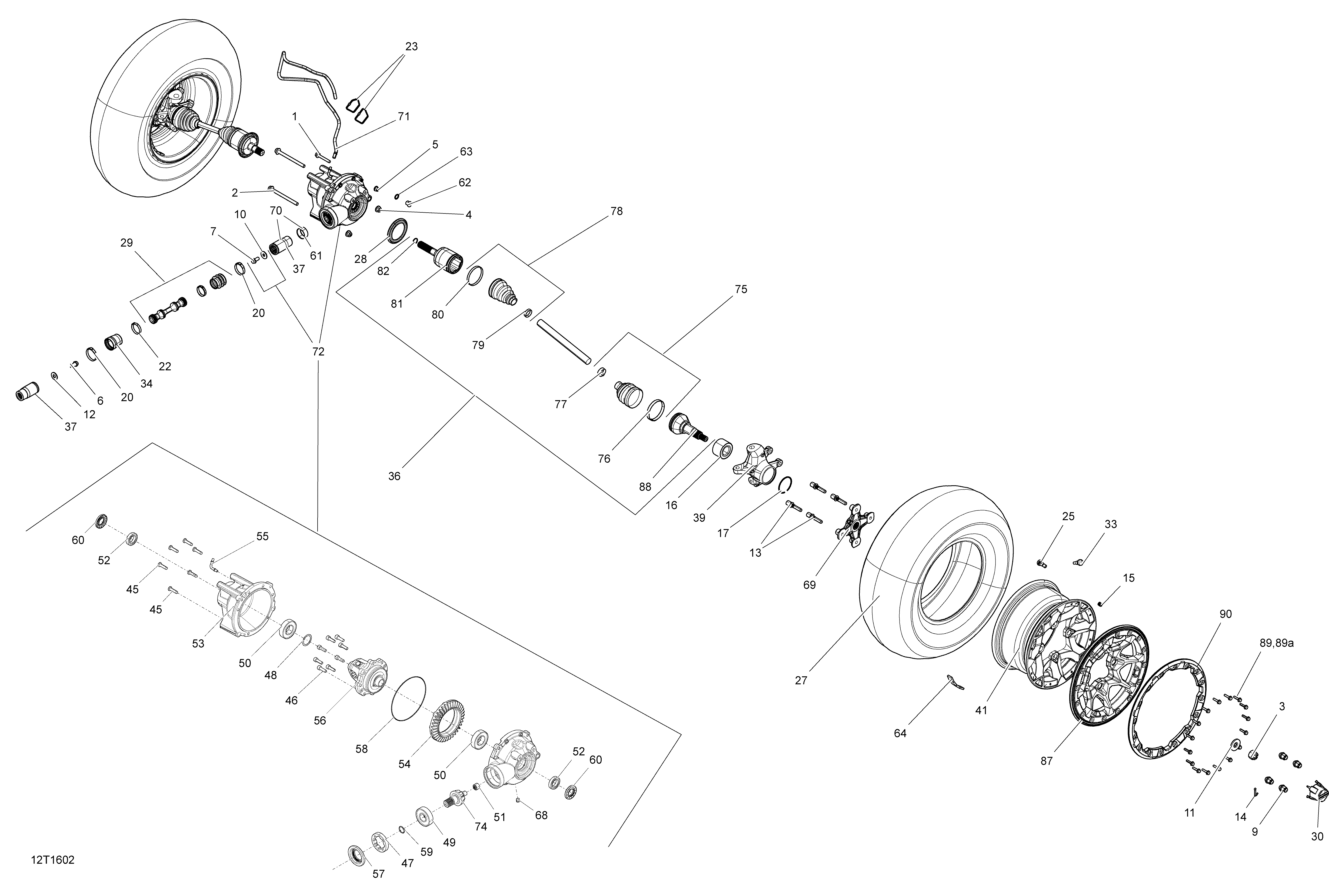

07- Drive System, Front - All Models для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
2230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
3250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
7250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
9250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
9250100082 Chrome Wheel Nut M10 X 1.25. Package DPSChrome Wheel Nut M10 X 1.25. Package DPS
-
9250100100 Black Wheel Nut M10 X 1.25. Except Package STD and DPSBlack Wheel Nut M10 X 1.25. Except Package STD and DPS
-
10250200014 Flat Washer M10Flat Washer M10
-
11250200049 Spring WasherSpring Washer
-
12250200102 Flat Washer M12Flat Washer M12
-
13250300048 Wheel StudWheel Stud
-
14250400071 Cotter PinCotter Pin
-
15293000110 Valve CapValve Cap
-
16293350040 Cone BearingCone Bearing
-
17293370019 CirclipCirclip
-
18293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
19293600043 Synthetic Gear Oil, 75w90, 12 X 32 OzSynthetic Gear Oil, 75w90, 12 X 32 Oz
-
20293650138 Oetiker Gear ClampOetiker Gear Clamp
-
22293650199 Oetiker Gear ClampOetiker Gear Clamp
-
23414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
25705400193 Rim Valve With CapRim Valve With Cap
-
27705401331 Front Tire. Package STD - Package DPS Except Europe ModelFront Tire. Package STD - Package DPS Except Europe Model
-
27705401332 Front Tire. Europe Model Package DPSFront Tire. Europe Model Package DPS
-
27705401333 Front Tire. Package XT, XTP, LTD Except EuropeFront Tire. Package XT, XTP, LTD Except Europe
-
27705401334 Front Tire. Package XT, XTP, LTD Europe ModelFront Tire. Package XT, XTP, LTD Europe Model
-
27705401391 Front Tire. Engine 650 Package XMRFront Tire. Engine 650 Package XMR
-
27705400962 Tire. Engine 850 1000R Package XMRTire. Engine 850 1000R Package XMR
-
27705401736 Front Tire. Package PRO InternationalFront Tire. Package PRO International
-
27705401737 Front Tire. Package PRO EuropeFront Tire. Package PRO Europe
-
28705400780 Wear Sleeve. Engine 650 - 850 - 1000R, Except Package XMRWear Sleeve. Engine 650 - 850 - 1000R, Except Package XMR
-
29705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
30705400928 Wheel Cap. Engine 570 - 650Wheel Cap. Engine 570 - 650
-
30705400928 Wheel Cap. Engine 850 - 1000R, Except Package XMRWheel Cap. Engine 850 - 1000R, Except Package XMR
-
30705401318 Wheel Cap. Engine 850 1000R Package XMRWheel Cap. Engine 850 1000R Package XMR
-
33705400193 Rim Valve With CapRim Valve With Cap
-
34705401093 Rubber BootRubber Boot
-
36705401115 LH Homocinetic Joint. Engine 650 - 850 - 1000R, Except Package XMRLH Homocinetic Joint. Engine 650 - 850 - 1000R, Except Package XMR
-
36705401116 RH Homocinetic Joint. Engine 650 - 850 - 1000R, Except Package XMRRH Homocinetic Joint. Engine 650 - 850 - 1000R, Except Package XMR
-
36705401428 RH Homocinetic Joint. Engine 570RH Homocinetic Joint. Engine 570
-
36705401429 LH Homocinetic Joint. Engine 570LH Homocinetic Joint. Engine 570
-
36705401703 RH Homocinetic Joint. Package XMRRH Homocinetic Joint. Package XMR
-
36705401704 LH Homocinetic Joint. Package XMRLH Homocinetic Joint. Package XMR
-
37703500678 Front Bushing Shaft KitFront Bushing Shaft Kit
-
39705401290 LH KnuckleLH Knuckle
-
39705401291 RH KnuckleRH Knuckle
-
41705401371 Black Front Rim. Package STDBlack Front Rim. Package STD
-
41705401088 Silver Front Rim. Package DPSSilver Front Rim. Package DPS
-
41705401127 Black Front Rim. Package PROBlack Front Rim. Package PRO
-
41705401127 Black Front Rim. Package XT Black ModelBlack Front Rim. Package XT Black Model
-
41705401127 Black Front Rim. Package XT Camo ModelBlack Front Rim. Package XT Camo Model
-
41705401127 Black Front Rim. Package XT Brush Aluminium ModelBlack Front Rim. Package XT Brush Aluminium Model
-
41705401420 Black Front Rim. Package XT YellowBlack Front Rim. Package XT Yellow
-
41705401420 Black Front Rim. Package XT WhiteBlack Front Rim. Package XT White
-
41705401420 Black Front Rim. Package LTDBlack Front Rim. Package LTD
-
41705401678 Black Front Rim. Package XTP - XXCBlack Front Rim. Package XTP - XXC
-
41705401420 Black Front Rim. Engine 650 Package XMRBlack Front Rim. Engine 650 Package XMR
-
41705401552 Matte Black Rim. Engine 850 1000R Package XMRMatte Black Rim. Engine 850 1000R Package XMR
-
45705401601 ScrewScrew
-
46705401602 ScrewScrew
-
47705401603 NutNut
-
48705401604 ShimShim
-
49705401605 Ball BearingBall Bearing
-
50705401606 Ball BearingBall Bearing
-
51705401607 Needle BearingNeedle Bearing
-
52705401608 Ball BearingBall Bearing
-
53705401610 Front CoverFront Cover
-
54705401612 Gear 36 TeethGear 36 Teeth
-
55705401613 Vent ValveVent Valve
-
56705401506 Differential. Except Package STDDifferential. Except Package STD
-
56705401614 Differential. Package STDDifferential. Package STD
-
56a705401769 ShimShim
-
56b705401770 ShimShim
-
57705401615 Oil SealOil Seal
-
58705401616 SealSeal
-
59705401617 O'RingO'Ring
-
60705401618 GasketGasket
-
61705400036 Wear RingWear Ring
-
61705400036 Wear RingWear Ring
-
62705500504 Fill Level PlugFill Level Plug
-
63705500506 Copper WasherCopper Washer
-
64705501385 1/2 OZ Weight1/2 OZ Weight
-
67705401792 Front Cover, PinionFront Cover, Pinion
-
68705501885 Drain PlugDrain Plug
-
69705501900 Wheel HubWheel Hub
-
70703500678 Front Bushing Shaft KitFront Bushing Shaft Kit
-
71415080200 Hose, PolyurethaneHose, Polyurethane
-
72703500899 Front Differential Ass'y. Package STDFront Differential Ass'y. Package STD
-
72703500900 Front Differential Ass'y. Except Package STDFront Differential Ass'y. Except Package STD
-
74705401791 Pinion 10 TeethPinion 10 Teeth
-
75705401345 Boot Kit, Wheel Side. Engine 650, 850, 1000 Except Package XMRBoot Kit, Wheel Side. Engine 650, 850, 1000 Except Package XMR
-
75705401354 Boot Kit, Wheel Side. Engine 650, 850, 1000 Package XMRBoot Kit, Wheel Side. Engine 650, 850, 1000 Package XMR
-
75715900298 CV Boot Kit, Wheel Side. Engine 570CV Boot Kit, Wheel Side. Engine 570
-
76715900260 Oetiker Clamp, Large. Engine 650, 850, 1000 Package XMROetiker Clamp, Large. Engine 650, 850, 1000 Package XMR
-
76715900262 Oetiker Clamp, Large. Engine 570Oetiker Clamp, Large. Engine 570
-
76715900282 Oetiker Clamp, Large. Engine 650, 850, 1000 Except Package XMROetiker Clamp, Large. Engine 650, 850, 1000 Except Package XMR
-
77715900261 Oetiker Clamp, Small. Engine 650, 850, 1000 Package XMROetiker Clamp, Small. Engine 650, 850, 1000 Package XMR
-
77715900283 Oetiker Clamp, Small. Engine 650, 850, 1000 Except Package XMROetiker Clamp, Small. Engine 650, 850, 1000 Except Package XMR
-
77715900317 Oetiker Clamp, Small. Engine 570Oetiker Clamp, Small. Engine 570
-
78705401346 Boot Kit, Differential Side. Engine 650, 850, 1000 Except Package XMRBoot Kit, Differential Side. Engine 650, 850, 1000 Except Package XMR
-
78705401355 Boot Kit, Differential Side. Engine 650, 850, 1000 Package XMRBoot Kit, Differential Side. Engine 650, 850, 1000 Package XMR
-
78715900299 CV Boot Kit, Differential Side. Engine 570CV Boot Kit, Differential Side. Engine 570
-
79715900261 Oetiker Clamp, Small. Engine 650, 850, 1000 Except Package XMROetiker Clamp, Small. Engine 650, 850, 1000 Except Package XMR
-
79715900261 Oetiker Clamp, Small. Engine 650, 850, 1000 Package XMROetiker Clamp, Small. Engine 650, 850, 1000 Package XMR
-
79715900262 Oetiker Clamp, Large. Engine 650, 850, 1000 Package XMROetiker Clamp, Large. Engine 650, 850, 1000 Package XMR
-
79715900317 Oetiker Clamp, Small. Engine 570Oetiker Clamp, Small. Engine 570
-
80715900261 Oetiker Clamp, Small. Engine 650, 850, 1000 Package XMROetiker Clamp, Small. Engine 650, 850, 1000 Package XMR
-
80715900262 Oetiker Clamp, Large. Engine 650, 850, 1000 Package XMROetiker Clamp, Large. Engine 650, 850, 1000 Package XMR
-
80715900284 Oetiker Clamp, Large. EEngine 650, 850, 1000 Except Package XMROetiker Clamp, Large. EEngine 650, 850, 1000 Except Package XMR
-
80715900318 Oetiker Clamp, Large. Engine 570Oetiker Clamp, Large. Engine 570
-
81705401348 RH Plunging Joint. Engine 650, 850, 1000 Except Package XMRRH Plunging Joint. Engine 650, 850, 1000 Except Package XMR
-
81705401350 LH Plunging Joint. Engine 650, 850, 1000 Except Package XMRLH Plunging Joint. Engine 650, 850, 1000 Except Package XMR
-
81715900300 RH Plunging CV Joint. Engine 570RH Plunging CV Joint. Engine 570
-
81715900301 LH Plunging CV Joint. Engine 570LH Plunging CV Joint. Engine 570
-
81715900395 RH Plunging CV Joint. Engine 650, 850, 1000 Package XMRRH Plunging CV Joint. Engine 650, 850, 1000 Package XMR
-
81715900396 LH Plunging CV Joint. Engine 650, 850, 1000 Package XMRLH Plunging CV Joint. Engine 650, 850, 1000 Package XMR
-
82705401349 Circlip JointCirclip Joint
-
87705401811 Orange Reinforcement Disk. Package XTPOrange Reinforcement Disk. Package XTP
-
88705401344 CV Joint. Engine 650, 850, 1000 Except Package XMRCV Joint. Engine 650, 850, 1000 Except Package XMR
-
88705401407 CV Joint. Engine 650, 850, 1000 Package XMRCV Joint. Engine 650, 850, 1000 Package XMR
-
88715900297 CV Joint. Engine 570CV Joint. Engine 570
-
89250000787 Hex. Flanged Screw M6 X 25. Package XTPHex. Flanged Screw M6 X 25. Package XTP
-
89a293450317 Insert. Package XTPInsert. Package XTP
