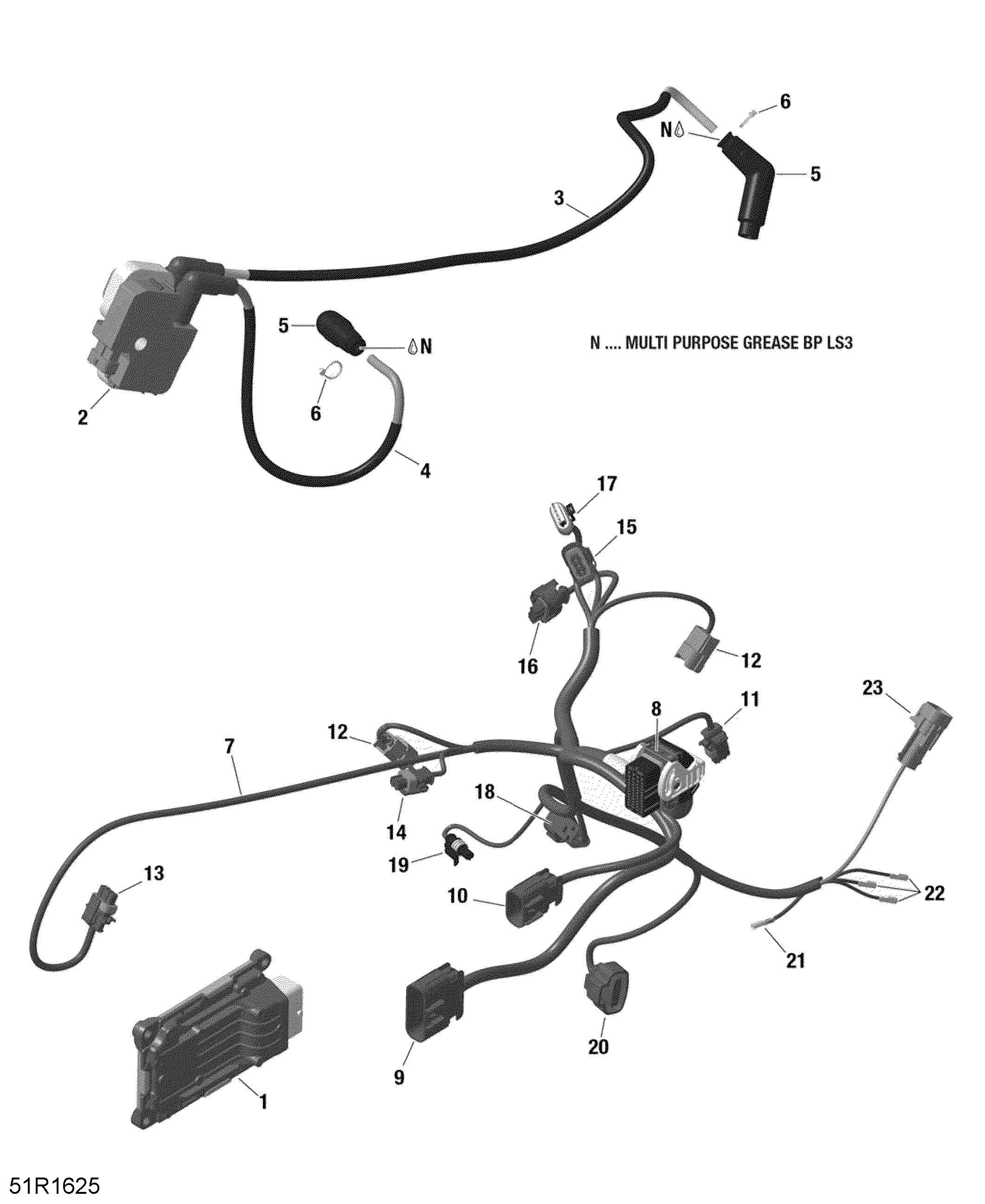

10- Engine Harness and Electronic Module - 1000R EFI (Outlander Except Package XMR) для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1420666990 ECM, Engine Control Module. Outlander Except EuropeECM, Engine Control Module. Outlander Except Europe
-
1420666991 ECM, Engine Control Module. MAX ModelECM, Engine Control Module. MAX Model
-
1420666992 ECM, Engine Control Module. EuropeECM, Engine Control Module. Europe
-
2a278001546 Ignition Coil. Includes 2a to 2bIgnition Coil. Includes 2a to 2b
-
2b710000568 HousingHousing
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
6293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
7420864692 Engine Wiring Harness. Includes 7 to 23Engine Wiring Harness. Includes 7 to 23
-
10710001227 HousingHousing
-
11710001927 HousingHousing
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
19278002378 Male HousingMale Housing
-
20278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
21710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
22a278001009 Female TerminalFemale Terminal
-
22b278001007 Insulated SheathInsulated Sheath
-
23278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
