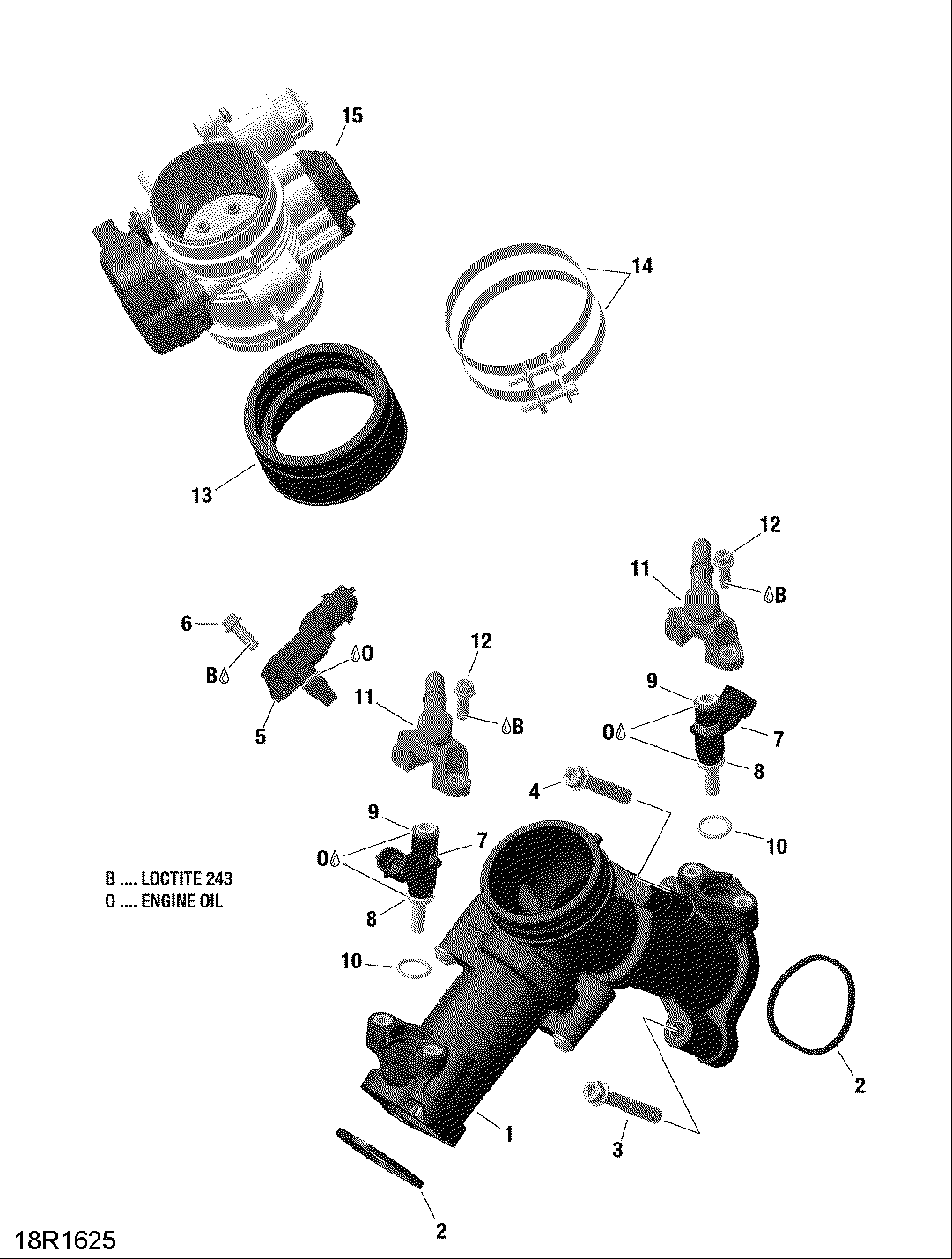

02- Air Intake Manifold and Throttle Body - 1000R EFI для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1420667520 Air Intake ManifoldAir Intake Manifold
-
2420450420 GasketGasket
-
3420440397 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4420940077 Flanged Torx Screw M8 X 45Flanged Torx Screw M8 X 45
-
5707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
6420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7>9420874830 Injection Valve Ass'y. Includes 7 to 9Injection Valve Ass'y. Includes 7 to 9
-
8420431890 O-RingO-Ring
-
9420631220 O-RingO-Ring
-
10420631295 O-RingO-Ring
-
11420874901 Fuel RailFuel Rail
-
12420440162 Screw M6 X 16Screw M6 X 16
-
13420267041 Intake SocketIntake Socket
-
13420267041 Intake SocketIntake Socket
-
14420251209 ClampClamp
-
15420685325 Throttle Body Ass'y. Include 15aThrottle Body Ass'y. Include 15a
-
15a715900503 Position SensorPosition Sensor
