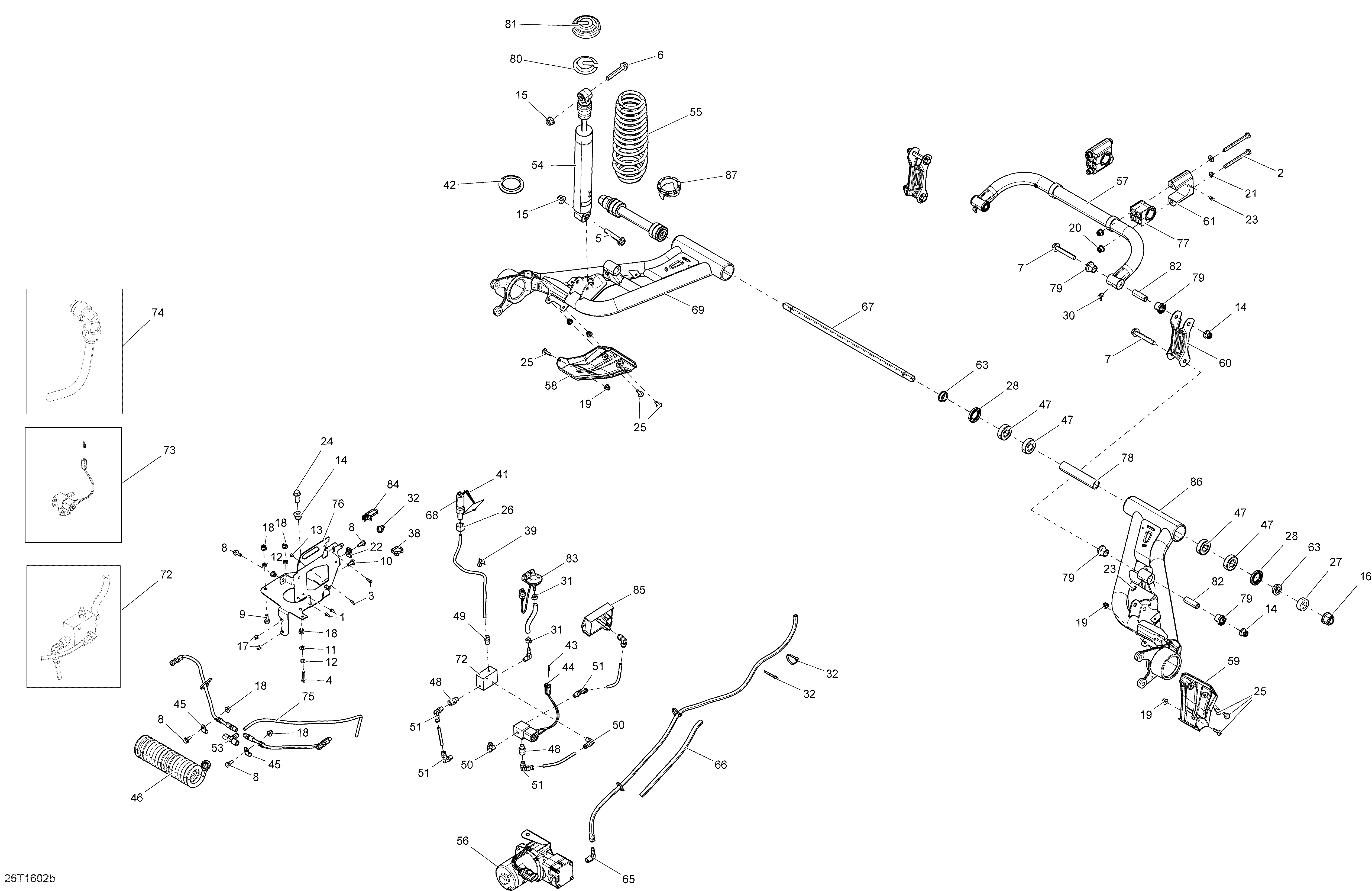

08- Rear Suspension - Package LTD для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1205041254 Socket Head Screw M4 X 12. Package LTDSocket Head Screw M4 X 12. Package LTD
-
3207141244 Hex. Screw M4 X 12. Package LTDHex. Screw M4 X 12. Package LTD
-
4207162544 Hex. Screw M6 X 25. Package LTDHex. Screw M6 X 25. Package LTD
-
5207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
6207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
7207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
8207661644 Hex. Flanged Screw M6 X 16. Package LTDHex. Flanged Screw M6 X 16. Package LTD
-
9207662044 Hex. Flanged Screw M6 X 20. Package LTDHex. Flanged Screw M6 X 20. Package LTD
-
10210261650 Hex. Flanged Screw M6 X 16. Package LTDHex. Flanged Screw M6 X 16. Package LTD
-
11224061121 Flat Washer. Package LTDFlat Washer. Package LTD
-
12232061414 Hex. Nut M6. Package LTDHex. Nut M6. Package LTD
-
13232541414 Elastic Stop Nut M4. Package LTDElastic Stop Nut M4. Package LTD
-
14233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14233201414 Hex. Flanged Elastic Nut M10. Package LTDHex. Flanged Elastic Nut M10. Package LTD
-
15233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
16233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
17233251434 Flanged Elastic Nut M5. Package LTDFlanged Elastic Nut M5. Package LTD
-
18233261414 Hex. Flanged Elastic Nut M6. Package LTDHex. Flanged Elastic Nut M6. Package LTD
-
19233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
20233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21234081430 Flat Washer M8Flat Washer M8
-
22250000048 Panel Nut M6 X 1.0. Package LTDPanel Nut M6 X 1.0. Package LTD
-
24250000562 Hex Flange Screw M10 X 25. Package LTDHex Flange Screw M10 X 25. Package LTD
-
25250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
26250100124 Hex. Nut With Nylon 1/2'' X 20. Package LTDHex. Nut With Nylon 1/2'' X 20. Package LTD
-
27250200112 Flat Washer M17Flat Washer M17
-
28293200144 SealSeal
-
31293650207 Clamp Oetiker. Package LTDClamp Oetiker. Package LTD
-
31293650207 Clamp OetikerClamp Oetiker
-
41414811400 O-RingO-Ring
-
43515175232 Male TerminalMale Terminal
-
44515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
45705600459 ClampClamp
-
46706000808 Auxiliary Hose. Package LTDAuxiliary Hose. Package LTD
-
47706000826 Ball BearingBall Bearing
-
48706000860 Check ValveCheck Valve
-
49706000869 ConnectorConnector
-
50706000872 Elbow 90°Elbow 90°
-
51706000928 Elbow 90°. Package LTDElbow 90°. Package LTD
-
53706000946 ''T'' Fitting''T'' Fitting
-
54706000930 Rear Shock. Package LTDRear Shock. Package LTD
-
55706000836 Black Rear Spring. Package LTDBlack Rear Spring. Package LTD
-
56706000964 Compressor Ass'y. Package LTDCompressor Ass'y. Package LTD
-
57706000988 SwaybarSwaybar
-
58706001009 LH ProtectorLH Protector
-
59706001010 RH ProtectorRH Protector
-
60706001020 Swaybar LinkageSwaybar Linkage
-
61706001099 Bushing HolderBushing Holder
-
62706001200 Elbow 90°. Package LTDElbow 90°. Package LTD
-
63706001282 SpacerSpacer
-
65706001405 Elbow 90°. Package LTDElbow 90°. Package LTD
-
66504153074 Protector Tube. Package LTDProtector Tube. Package LTD
-
67706001664 Axial Pivot M16Axial Pivot M16
-
68706001827 Inflater Ass'y. Package LTDInflater Ass'y. Package LTD
-
69706001860 Black LH Swing ArmBlack LH Swing Arm
-
72706002012 Hose Ass'y. Package LTDHose Ass'y. Package LTD
-
73706002014 Pressure Collector Ass'y. Package LTDPressure Collector Ass'y. Package LTD
-
74706002015 Hose Ass'y. Package LTDHose Ass'y. Package LTD
-
75706002020 Rear Shock Distributor. Package LTDRear Shock Distributor. Package LTD
-
76706002114 Bracket. Package LTDBracket. Package LTD
-
77706002246 CushionCushion
-
78706002259 EntretoiseEntretoise
-
79706200181 BushingBushing
-
82706201587 SleeveSleeve
-
83710001825 Air Suspension Sensor. Package LTDAir Suspension Sensor. Package LTD
-
84710002899 Clip Tie-Rap. Package LTDClip Tie-Rap. Package LTD
-
85710004405 Calibrated Module. Package LTDCalibrated Module. Package LTD
-
86706001861 Black RH Swing ArmBlack RH Swing Arm
